Fimco 200-3PT LESS BOOM Owner's Manual

Model: 200-3PT LESS BOOM
(5301553)

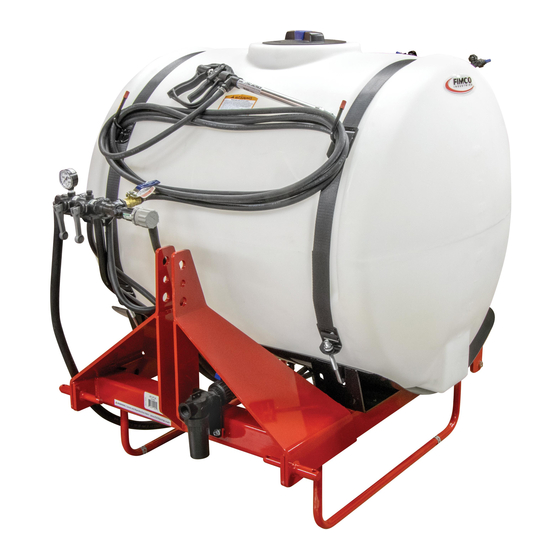

(200 Gallon 3-Point Sprayer - Boom Ready)

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point Sprayer.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

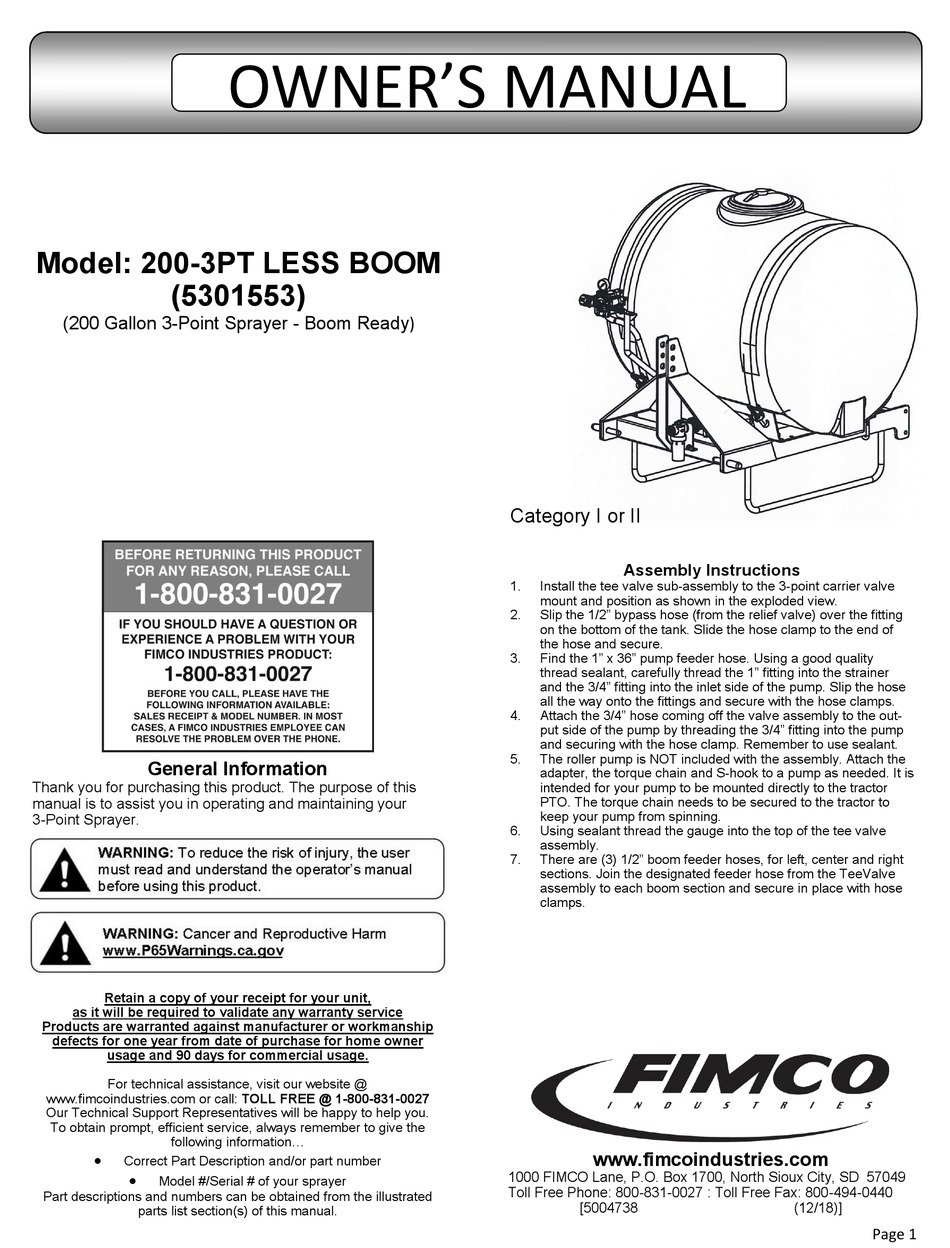

OWNER'S MANUAL
Category I or II

Assembly Instructions

1. Install the tee valve sub-assembly to the 3-point carrier valve
mount and position as shown in the exploded view.
2. Slip the 1/2" bypass hose (from the relief valve) over the fitting
on the bottom of the tank. Slide the hose clamp to the end of
the hose and secure.
3. Find the 1" x 36" pump feeder hose. Using a good quality
thread sealant, carefully thread the 1" fitting into the strainer
and the 3/4" fitting into the inlet side of the pump. Slip the hose
all the way onto the fittings and secure with the hose clamps.
4. Attach the 3/4" hose coming off the valve assembly to the out-
put side of the pump by threading the 3/4" fitting into the pump
and securing with the hose clamp. Remember to use sealant.
5. The roller pump is NOT included with the assembly. Attach the
adapter, the torque chain and S-hook to a pump as needed. It is
intended for your pump to be mounted directly to the tractor
PTO. The torque chain needs to be secured to the tractor to
keep your pump from spinning.
6. Using sealant thread the gauge into the top of the tee valve
assembly.
7. There are (3) 1/2" boom feeder hoses, for left, center and right
sections. Join the designated feeder hose from the TeeValve
assembly to each boom section and secure in place with hose
clamps.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004738 (12/18)]
Page 1
