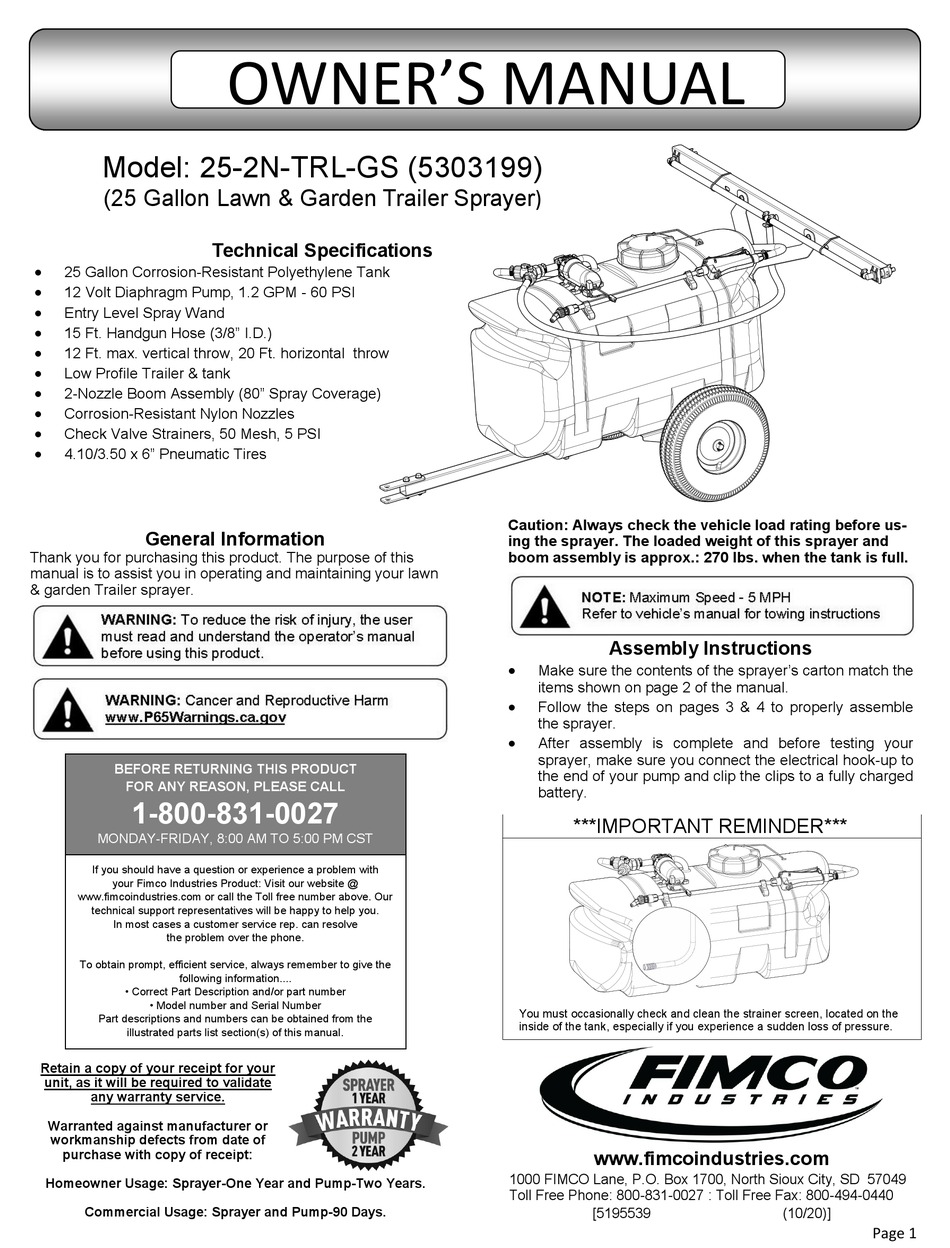

Model: 25-2N-TRL-GS (5303199)
(25 Gallon Lawn & Garden Trailer Sprayer)
25 Gallon Corrosion-Resistant Polyethylene Tank
12 Volt Diaphragm Pump, 1.2 GPM - 60 PSI
Entry Level Spray Wand
15 Ft. Handgun Hose (3/8" I.D.)
12 Ft. max. vertical throw, 20 Ft. horizontal throw
Low Profile Trailer & tank
2-Nozzle Boom Assembly (80" Spray Coverage)
Corrosion-Resistant Nylon Nozzles
Check Valve Strainers, 50 Mesh, 5 PSI
4.10/3.50 x 6" Pneumatic Tires
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Technical Specifications
Caution: Always check the vehicle load rating before us-
ing the sprayer. The loaded weight of this sprayer and
boom assembly is approx.: 270 lbs. when the tank is full.
Assembly Instructions
Make sure the contents of the sprayer's carton match the
items shown on page 2 of the manual.
Follow the steps on pages 3 & 4 to properly assemble
the sprayer.
After assembly is complete and before testing your
sprayer, make sure you connect the electrical hook-up to
the end of your pump and clip the clips to a fully charged
battery.
***IMPORTANT REMINDER***
You must occasionally check and clean the strainer screen, located on the
inside of the tank, especially if you experience a sudden loss of pressure.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195539
(10/20)]
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Fimco 25-2N-TRL-GS

Summary of Contents for Fimco 25-2N-TRL-GS

  • Page 1 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Commercial Usage: Sprayer and Pump-90 Days.
  • Page 2 Contents of your sprayer’s carton (25-2N-TRL-GS): Owner’s Manual Tank Lid & Lanyard Trailer Tank Pre-Assembly Boom Mount Trailer Tongue Entry Level Spray Wand & 15’ Hose 2-Nozzle Boom Assembly Contents of Parts & Bolt Bag Tires/Wheels Axle Kit Page 2...
  • Page 3 Step 1 Assembly Procedure (25-2N-TRL-GS) After removing the tank from the box, start the assembly proce- dure by turning the tank upside on a stable, flat surface. A 1/2” socket wrench is required for this step. Do not over-tighten bolts.
  • Page 4 Assembly Procedure (25-2N-TRL-GS) After your trailer boom mount is secured to the tank. Step 5 1/2” socket wrench & wrench is required for this step. Attach the boom assembly to the trailer boom mount. Secure in place with (2) flanged hex bolts and (2) flanged hex nuts.

  • Page 5: Operation

    Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. per gallon).

  • Page 6: Troubleshooting The Pump

    Replacement Parts Replacement Pump: 5151086 DON’T  Use to pump bleach.  Clean and rinse your pump after each use with Fimco Tank  Use to pump petroleum products such as diesel fuel, Neutralizer gasoline or kerosene  Winterize your pump or sprayer by rinsing, draining and ...

  • Page 7: Troubleshooting

    Motor not running: Checking the Pressure Switch If your motor is not running and you’ve checked the following: for loose wiring connections, fuse, the switch on the lead wire was “ON” and made sure you were connected to a fully charged battery and everything is fine, but the motor won’t run, then it’s time to check to see if the pressure switch is bad.

  • Page 8: Exploded View Parts List

    Exploded View/Parts List: Y-Valve Detail 25-2N-TRL-GS (5303199) Page 8...

  • Page 9: Speed Chart

    2-Nozzle Boom Assembly Exploded View/Parts List Nozzle Detail Based on the minimum overlap required to obtain uniform distribution with 120° tips and 40” spacing. Suggested Minimum Spray Height: 18”-20” above what is being sprayed (to plant, not ground). Optimum Spray Height: 39” Wide angle spray nozzle height is influenced by nozzle orientation.

  • Page 10: Warranty

    WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
