Fimco Volt Edge 20V-UTV-45-BL Owner's Manual

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
UTV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year
and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: 20V-UTV-45-BL
(5303067)

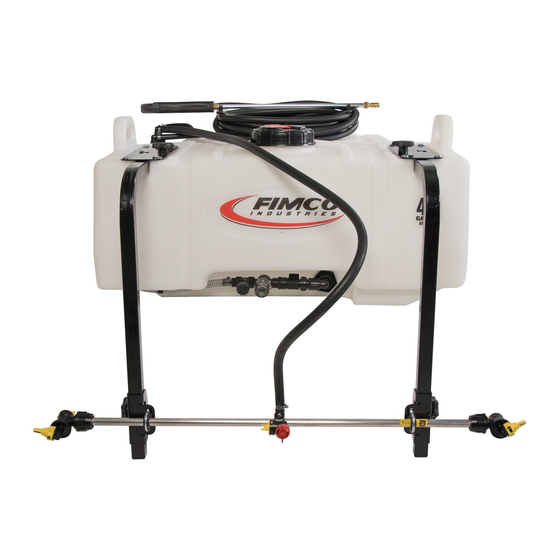

45 Gallon Lawn & Garden UTV Sprayer
(
w/Boomless Boom & Volt Edge System)
Technical Specifications

45 Gal. Corrosion-Resistant Polyethylene Tank

Deluxe Pistol-Grip Handgun w/25 Ft. Handgun Hose

Max. Throw: 28' Vertical, 40' Horizontal

30' Spray Coverage with Boom

Adjustable Boom Height

12 Volt, 4.5 GPM - 60 PSI Diaphragm Pump

Volt Edge 20Vmax Lithium Ion System
1 Tank, 20 Minutes Spraying & 45 Gallons per Charge

Multi-Lid to accurately measure and pour chemicals
Caution: When fully filled with water, this sprayer
will weigh 505 lbs.. Consult the owner's manual for your
vehicle to verify that you are within it's load carrying
capacity.
Secure unit in your UTV, using tie-down straps
(NOT INCLUDED)
Assembly Instructions
The sprayer is partially assembled at the factory. Follow the
assembly instructions on pages 2 and 3..
Read the operating instructions for both the sprayer and the
Volt Edge system before using your sprayer. Then run the
sprayer using only water for testing. When everything tests all
right, add the desired chemical mixture and water combina-
tion and start the spraying operation.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off valve located on your intake
line. You must make sure the valve is in the "open" position before
using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195246 (09/19)]
Page 1
