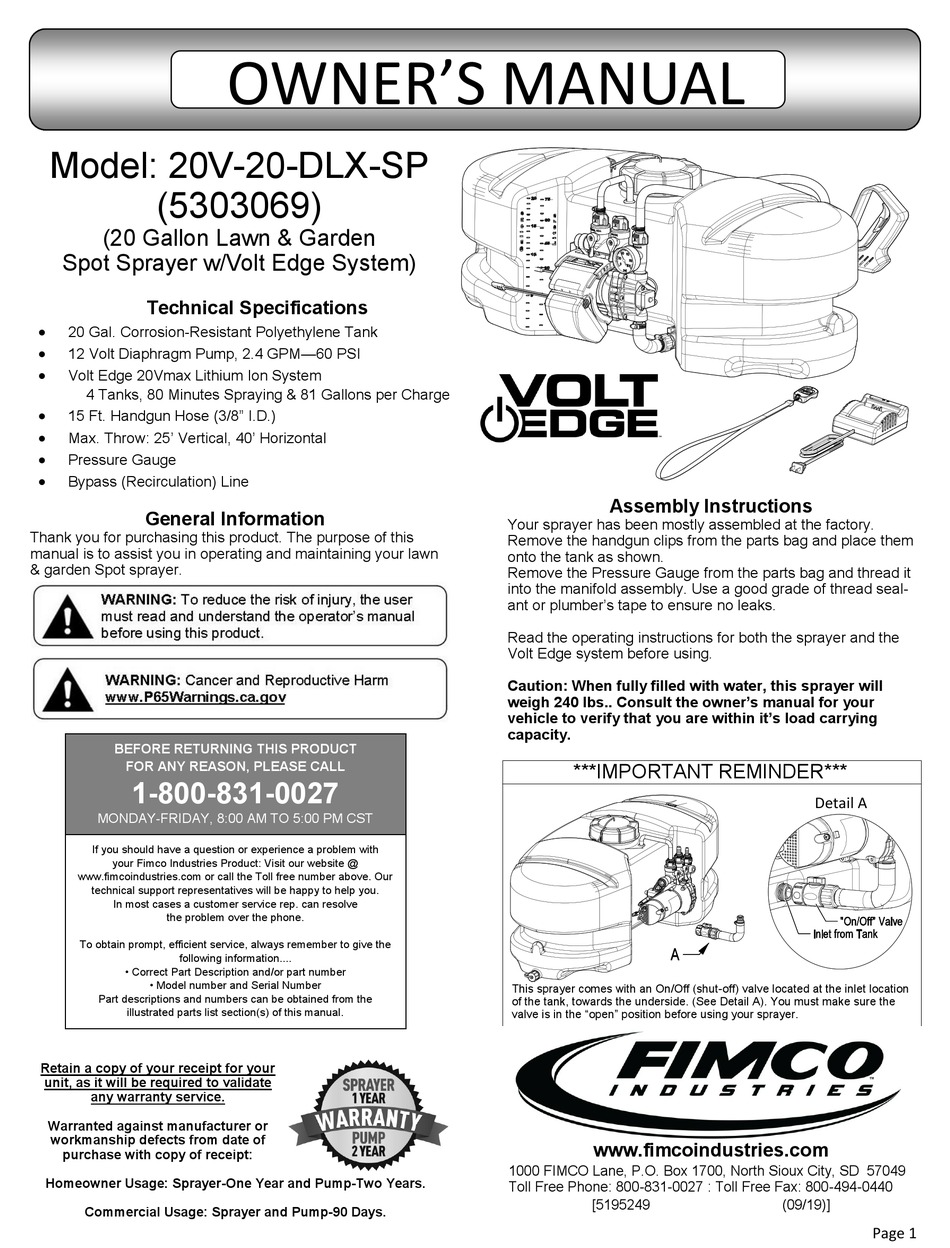

Model: 20V-20-DLX-SP
(5303069)
(20 Gallon Lawn & Garden
Spot Sprayer w/Volt Edge System)
Technical Specifications
20 Gal. Corrosion-Resistant Polyethylene Tank
12 Volt Diaphragm Pump, 2.4 GPM—60 PSI
Volt Edge 20Vmax Lithium Ion System
4 Tanks, 80 Minutes Spraying & 81 Gallons per Charge
15 Ft. Handgun Hose (3/8" I.D.)
Max. Throw: 25' Vertical, 40' Horizontal
Pressure Gauge
Bypass (Recirculation) Line
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Spot sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Assembly Instructions
Your sprayer has been mostly assembled at the factory.
Remove the handgun clips from the parts bag and place them
onto the tank as shown.
Remove the Pressure Gauge from the parts bag and thread it
into the manifold assembly. Use a good grade of thread seal-
ant or plumber's tape to ensure no leaks.
Read the operating instructions for both the sprayer and the
Volt Edge system before using.
Caution: When fully filled with water, this sprayer will
weigh 240 lbs.. Consult the owner's manual for your
vehicle to verify that you are within it's load carrying
capacity.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve located at the inlet location
of the tank, towards the underside. (See Detail A). You must make sure the
valve is in the "open" position before using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195249
Detail A
(09/19)]
Page 1
Advertisement
Troubleshooting
Related Manuals for Fimco Volt Edge 20V-20-DLX-SP
Summary of Contents for Fimco Volt Edge 20V-20-DLX-SP
- Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5195249 (09/19)] Commercial Usage: Sprayer and Pump-90 Days.
- Page 2 Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. per gallon). Turn pump on and circulate through system for 15 minutes and then spray out through handgun nozzle.
- Page 3 Winter Storage Prepare the sprayer for end-of-season storage by running RV antifreeze through the system. This will keep internal parts lubricated, protect against corrosion and keep the unit from freezing. Note: RV antifreeze is non-toxic and biodegradable and generally safer for the environment than automotive antifreeze.
-
Page 4: Troubleshooting The Pump
3/8” Hose Barb Port Kit Fitting #5168836 DON’T Use to pump bleach. Clean and rinse your pump after each use with Fimco Tank Use to pump petroleum products such as diesel fuel, Neutralizer gasoline or kerosene ... -
Page 5: Troubleshooting
Checking the Pressure Switch If your motor is not running and you’ve checked the following: for loose wiring connections, fuse, the switch on the lead wire was “ON” and made sure you were connected to a fully charged battery and everything is fine, but the motor won’t run, then it’s time to check to see if the pressure switch is bad. - Page 6 20V, 5A Lithium Battery Kit (5281506) Instruction Manual for Volt Edge 20V max* Li-ion Battery Charger * Maximum initial battery pack voltage (measured without a workload) is 20 volts. Measured under workload, nominal voltage is 18 volts. The label on your product may include the following symbols. volts Amperes Hertz...
-
Page 7: Declaration Of Conformity
Warning: Do not attempt to charge the battery pack with any chargers, other than the ones in this manual. The charger and battery pack are specifically designed to work together. The chargers are not intended for any uses other than charging designated Volt Edge 20Vmax Lithium-ion batteries. Any other uses may result in risk of fire, electric shock or electrocution. - Page 8 Leaving the battery in the charger. The charger and battery pack can be left connected with the green LED indicating the charger is maintaining the battery continuously. The charger will keep the battery pack fresh and fully charged. Important charging notes: Longest life and best performance can be obtained if the battery pack is charged with the air temperature is between 50°F (10°C) and 80°F (26°C).
- Page 9 Remote Button Identification: The small LED at the top of remote turns red when transmitting. The red LED is also the pairing button. The ‘ON’ button will only turn on the Volt Edge Receiver. The ‘OFF’ button will only turn off the Volt Edge Receiver. Pairing Procedure: Ensure the receiver power cord is not connected.
- Page 10 Exploded View/Parts List: 20V-20-DLX-SP (5303069) Intake Assembly Manifold 5281145 Assembly 5281536 Page 10...
- Page 11 Notes: Page 11...
-
Page 12: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
