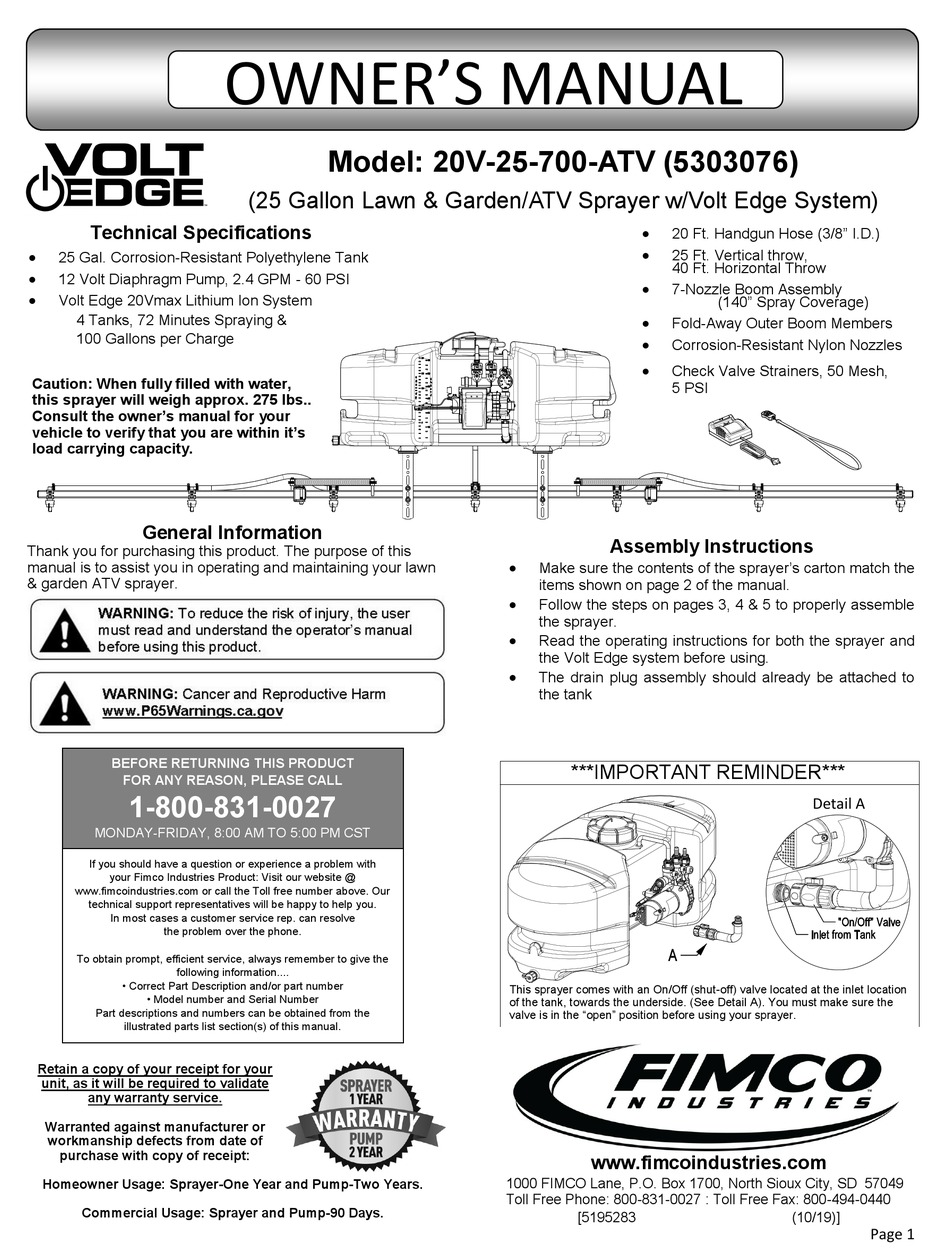

Fimco Volt Edge 20V-25-700-ATV Owner's Manual

Technical Specifications

25 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.4 GPM - 60 PSI

Volt Edge 20Vmax Lithium Ion System
4 Tanks, 72 Minutes Spraying &
100 Gallons per Charge
Caution: When fully filled with water,
this sprayer will weigh approx. 275 lbs..
Consult the owner's manual for your
vehicle to verify that you are within it's
load carrying capacity.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden ATV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: 20V-25-700-ATV (5303076)
(25 Gallon Lawn & Garden/ATV Sprayer w/Volt Edge System)

20 Ft. Handgun Hose (3/8" I.D.)

25 Ft. Vertical throw,
40 Ft. Horizontal Throw

7-Nozzle Boom Assembly

Fold-Away Outer Boom Members

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh,
5 PSI
Assembly Instructions

Make sure the contents of the sprayer's carton match the
items shown on page 2 of the manual.

Follow the steps on pages 3, 4 & 5 to properly assemble
the sprayer.

Read the operating instructions for both the sprayer and
the Volt Edge system before using.

The drain plug assembly should already be attached to
the tank
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve located at the inlet location
of the tank, towards the underside. (See Detail A). You must make sure the
valve is in the "open" position before using your sprayer.
