Fimco 200-3PT-1PC-TSC Owner's Manual

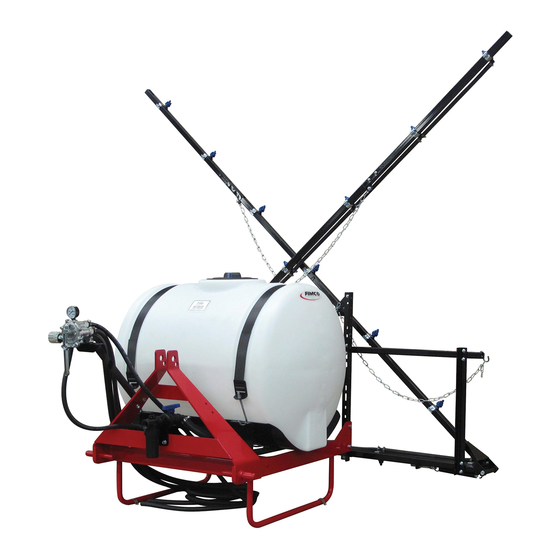

(200 Gallon 3-Point Sprayer w/8-Row Boom, Handgun, Pump & Coupler)
Assembly Instructions
1. Install the tee valve sub-assembly to the 3-point carrier valve
mount and position as shown in the exploded view.
2. Slip the 1/2" bypass hose (from the relief valve) over the fitting
on the bottom of the tank. Slide the hose clamp to the end of the
hose and secure.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point Sprayer.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
Model: 200-3PT-1PC-TSC (2152285)
Category I or II
3. Find the 1" x 36" pump feeder hose. Using a good quality
thread sealant, carefully thread the 1" fitting into the strainer
and the 3/4" fitting into the inlet side of the pump. Slip the hose
all the way onto the fittings and secure with the hose clamps.
4. Attach the 3/4" hose coming off the valve assembly to the out-
put side of the pump by threading the 3/4" fitting into the pump
and securing with the hose clamp. Remember to use sealant.
5. The roller pump IS included with the assembly. Attach the
adapter, the torque chain and S-hook to a pump as needed. It is
intended for your pump to be mounted directly to the tractor
PTO. The torque chain needs to be secured to the tractor to
keep your pump from spinning.
6. Wrap the handgun hose around the hose hangers, which are
attached to the tank straps.
7. Using sealant thread the gauge into the top of the tee valve
assembly.
8. Mount the upright angles to the inside of the mounts on the 3-
point carrier using the supplied 1/2" bolts and nuts. Attach the
backrack to the upright angles using the square U-bolts and
nuts. Note: the backrack can be mounted in either a high or low
position and the uprights can be adjusted for desired height.
Attach the U-brackets as shown.
9. Loosen the eye bolts and remove the 7" hinge bolts. Line up the
outer booms and reassemble the hinge bolt through the outer
boom yoke, the hinge casting and the spring connector. Tighten
the eye bolt until the spring is at the desired tension. Lock the
eye bolt in place with the inner whiz flange locknut. Bolt on the
boom extensions using the 3/8" x 1-3/4" bolts and hex lock nuts.
10. Hook an end of each boom chain on an "S" hook attached to
the top bar tube. Slip a slide clamp onto each outer boom.
Place the other end of the boom chain between the ears of the
slide clamp and secure with a 3/8" x 1" flange screw. Level the
outer booms by moving the slide clamps in or out as needed.
Tighten the bolts in the slide clamps to hold the clamps in place.
11. Attach the appropriate hose assemblies onto each of the three
boom sections. The center section as five nozzles with "L" con-
nectors on each end.
12. Join the designated feeder hose from the tee valve sub-
assembly to each boom section and secure in place with hose
clamps.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008067 (01/19)]
