USB-1808X User's Guide

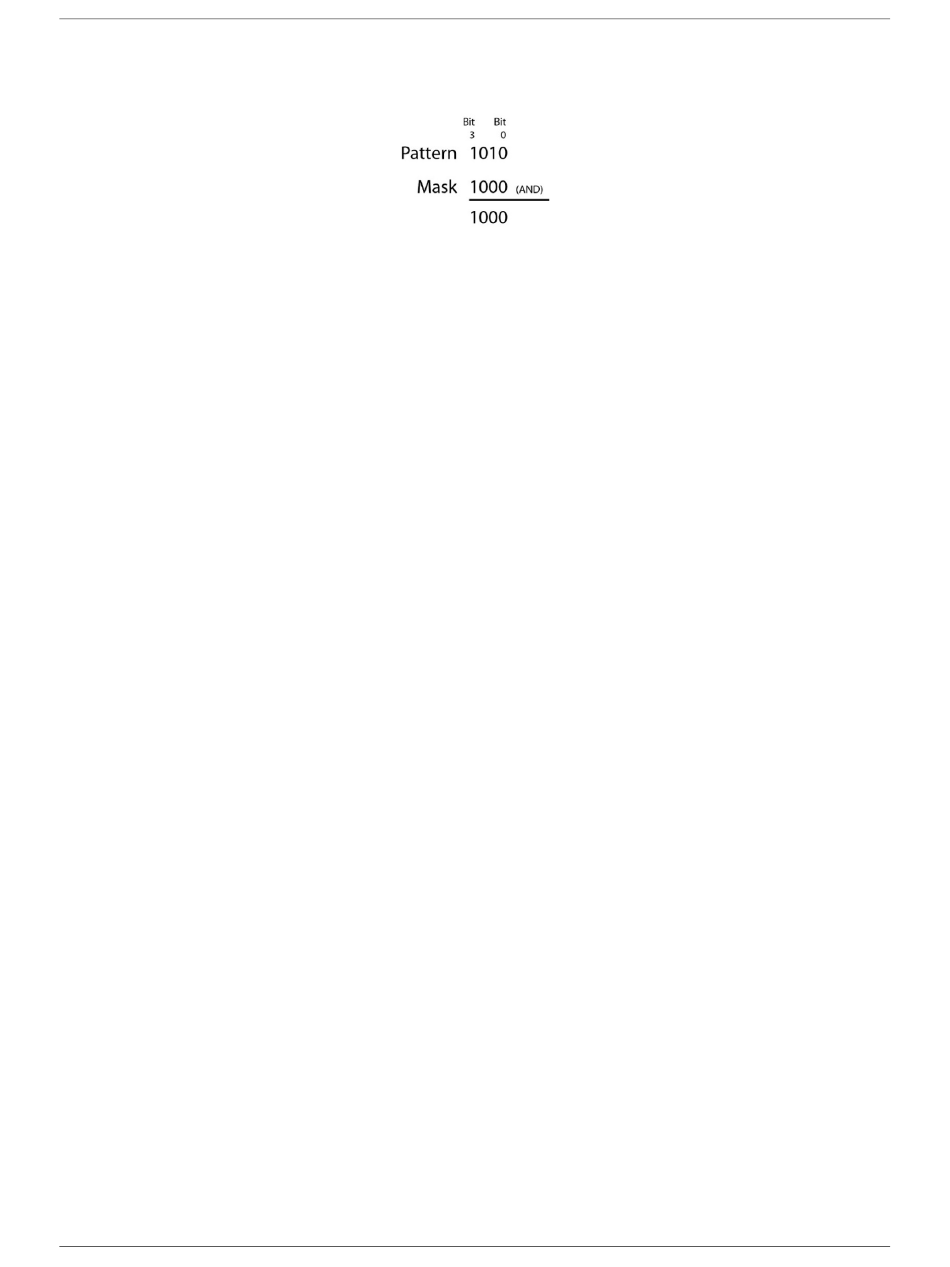

In Figure 10 all mask bits are excluded except bit 3. The result of this operation is that only bit 3 is included in
the pattern to detect.
Ground
The analog ground (
AGND
The digital ground (
GND
terminals.
Power output
The
terminal can output up to 10 mA maximum. You can use this terminal to supply power to external
+VO
devices or circuitry.
Figure 10. Trigger mask with some bits excluded
) terminals provide a common ground for all analog channels.
) terminals provide a common ground for the digital, trigger, counter, and encoder
16
Functional Details
