USB-1808X User's Guide
Functional Details
Mechanical drawings

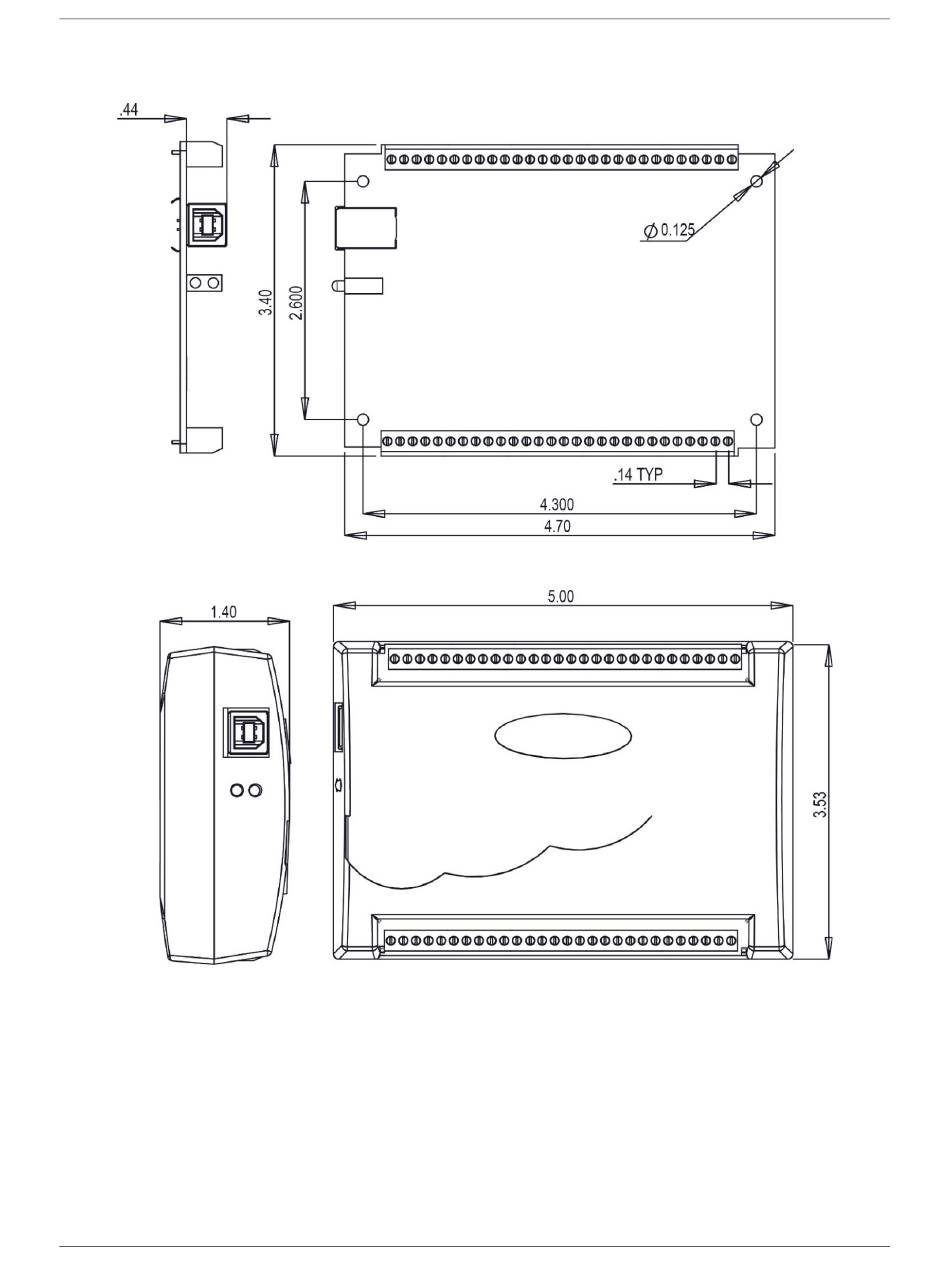

Figure 11. USB-1808X circuit board (top) and enclosure dimensions
