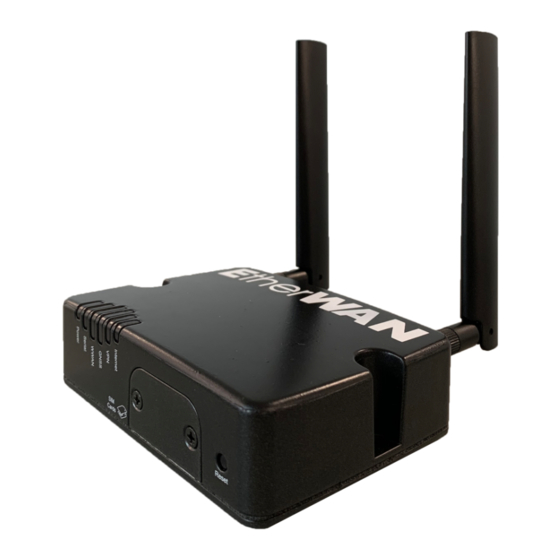

EtherWAN C4G-M-4P6M
Router Hardware Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4G-M-4P6M and is the answer not in the manual?

Questions and answers

Related Manuals for EtherWAN C4G-M-4P6M

Summary of Contents for EtherWAN C4G-M-4P6M

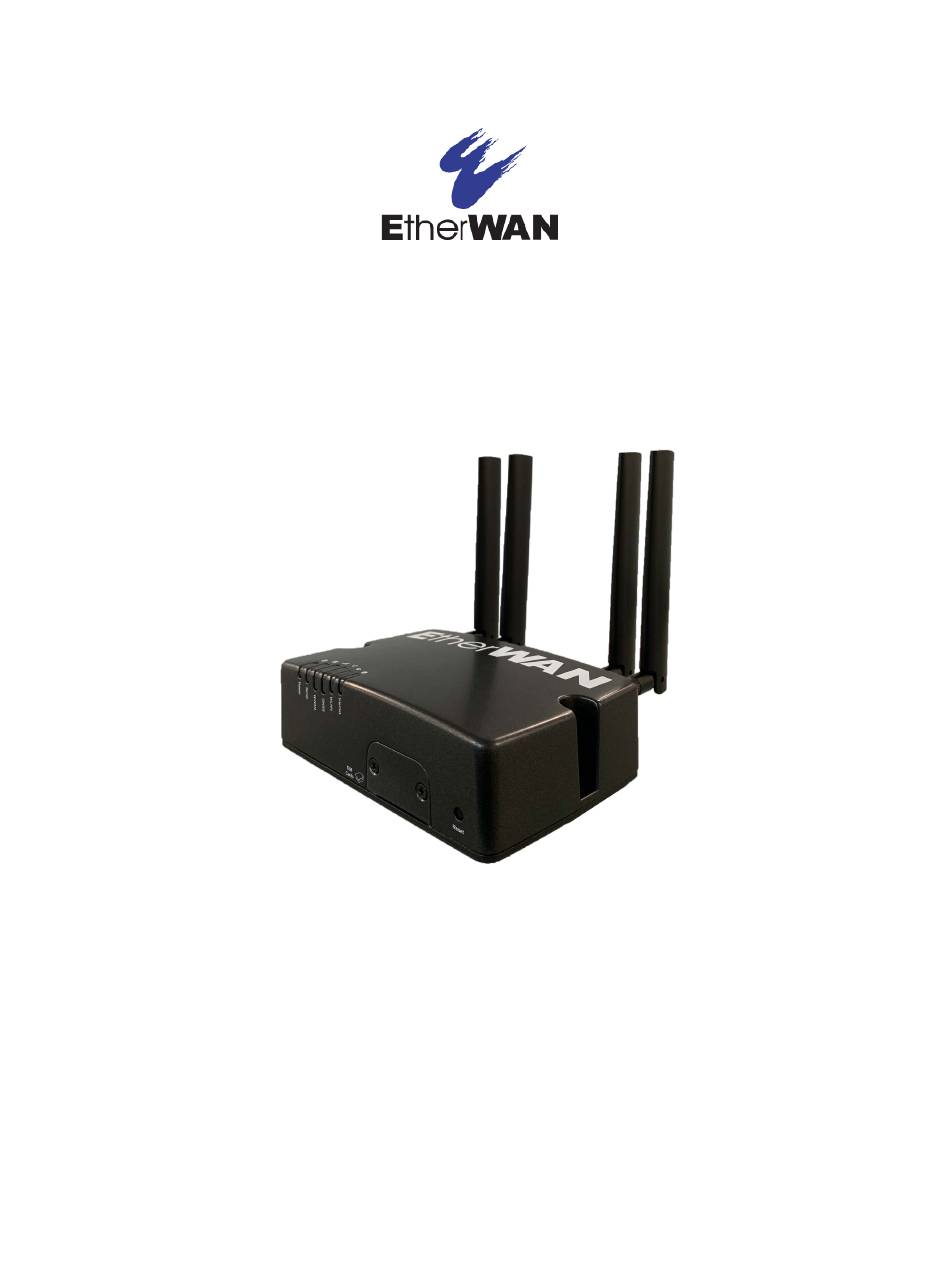

  • Page 1 EtherWAN C4G-M-4P6M Router Hardware Guide...
  • Page 2 EtherWAN router. Information to configure your EtherWAN router can be found in the Router’s User Guide and the Router’s CLI Refernce Guide on the EtherWAN website. Quick Start information can be found in the Cellular LTE Router Quick Start Guide that came with your product.
  • Page 3 Doing so will detract from the driver or operator's control and operation of that vehicle. The EtherWAN is Listed to UL121201 and CSA C22.2 No. 213 and are suitable for use in Class I, Division 2, Groups A, B, C and D Hazardous Locations.
  • Page 4 Cet équipement doit être utilisé dans les matières spécifiées par le fabricant. Warning: In case of malfunction or damage, no attempts at repair should be made by the user. Do not dismantle this product. In case of malfunction or damage, contact EtherWAN Technical support at https://www.EtherWAN.com Avertissement: En cas de dysfonctionnement ou de détérioration, aucune tentative de...
  • Page 5 IEC/EN 60079-0 and accessible only by the use of a tool. Les modèles de routeurs EtherWAN sont destinés à être installés dans un boîtier certifié IECEx/ATEX qui conforme à la norme IP54 conformément à la norme IEC/ EN 60079-0 et accessible uniquement à...
  • Page 6 être altérée. Warning: In case of malfunction or damage, no attempts at repair should be made. Do not dismantle the product. All repairs need to be made by a qualified EtherWAN representative. Contact EtherWAN Systems Technical support at https://www.EtherWAN.com...
  • Page 7 Modifications to this product not authorized by EtherWAN could void the FCC approval and negate your authority to operate the product.
  • Page 8 Preface Publishing History Date Revision Update Details April 2020 A.04.13.2020 Initial release. EtherWAN Series Router Hardware Installation Guide...

  • Page 9: Table Of Contents

    Table Of Contents Preface ............. . . I Overview .

  • Page 10: Overview

    It supports LTE/4G wireless solutions for both fixed and mobile applications (IoT). The LTE/4G supports Cat-12 technology with peak download rates of 600 Mbps and uploads speeds of 150 Mbps. The C4G-M-4P6M includes integrated GNSS receiver (GPS, GLONASS, Bei-dou and Galileo) satellite support.

  • Page 11: Hardware

    Booted - No configuration N/A Amber - Blip Standby mode Standby mode Blips every 5 seconds Amber - Flashing Router booting Router booting Red - Blip Overheat standby Overheat standby Red - Solid Hardware error Hardware error EtherWAN Series Router Hardware Installation Guide...
  • Page 12 No Fix Normal Mode Power Saving Mode Special Notes No VPN No VPN Green-Solid VPN connected VPN connected - Turns off after 5 seconds Green - Flashing VPN connecting Red - Flashing VPN failed EtherWAN Series Router Hardware Installation Guide...

  • Page 13: Sim Card/S

    Red - Solid Connection failed Red - Blip Connection failed SIM Card/s The C4G-M-4P6M supports two SIM cards. See Inserting the SIM card the installation proce-dure.SIM/s Interface 1.8V/3V Antenna/s The router has three SMA antenna connectors Main, Diversity and GNSS. For more information on connecting the antennas see Antenna/s.

  • Page 14: Usb-C Port

    Link + Flashing with activity 100 Mbps Right LED Green Link + Flashing with activity 10 Mbps No LAN connected GNSS Connector GPS+GLONAS+GAILEO Passive Antenna – SMA(M) straight connector See Technical Specifications for electrical details. EtherWAN Series Router Hardware Installation Guide...

  • Page 15: Terminal Block-Power Connector

    Hardware Terminal Block-Power Connector The power plug has two power connections, one relay connection and one digital input connection. See Connecting the Power EtherWAN Series Router Hardware Installation Guide...

  • Page 16: Installation

    3. Align the SIM cover plate and secure the plate with the screws. Note: Do not force the SIM(s) card in or you may damage the card on your C4G-M-4P6M. Connecting the Antenna/s The router has three SMA female antenna connectors: •...

  • Page 17: Connecting To The Ethernet Port

    PC. 6. Press the Enter key on the keyboard and the prompt will display. See the EtherWAN Series Router CLI Reference Guide for more information on using CLI commands. Warning: If you connect or disconnect the console cable with the power applied to the router or any device on the network, an electrical arc can occur.

  • Page 18: Connecting The Power

    A “Grounding Lug” is available if your installation requires additional grounding. The C4G-M-4P6M Router has two power inputs that can be connected simultaneously to provide redundant power. If one power source fails, the other source acts as a backup and powers the Router.

  • Page 19: Operation

    Safe Mode Press the Reset button All LEDs, except Saves the startup config  while powering up power blinking Boots with no config file  Amber Allows you to do setup  mode EtherWAN Series Router Hardware Installation Guide...

  • Page 20: Fast Setup

    Fast setup mode allow the user to configure basic operating parameters on the router. Your EtherWAN router has been shipped to you in Factory Default mode. When the router is in “Factory Default” mode, it will automatically power up in “Fast setup” mode. When the router is in “Fast Setup”...

  • Page 21: Managing The Router

    Managing the Router Managing the Router The C4G-M-4P6M can be configured, operated and monitored using any of the following methods. WebManager The EtherWAN WebManager is an embedded Web based application that provides an easy to use a browser interface for configuring and managing the C4G-M-4P6M. WebManager is accessible through any standard desktop web browser.

  • Page 22: Overheat Standby

    5 minutes. The high threshold can be configured within Alarm Manager /Primary/High Threshold menu. Note: that any value below 60°C/140°F set for this threshold will be ignored and the value of 60°C/140°F will be used for the monitoring for overheat standby. EtherWAN Series Router Hardware Installation Guide...

  • Page 23: I/O Configurations

    Pins 5 and 6 of the power connector can be connected to an external circuit which will be controlled by the internal relay. When the relay is engaged, the external circuit will be completed. The relay is a NO relay. The relay is rated at a maximum of 1A@24VDC. EtherWAN Series Router Hardware Installation Guide...

  • Page 24: Appendix A - Technical Specifications

    Storage Humidity Ranges 0% to 95% non-condensing Operating Altitude Up to 3,048 meters (10,000 feet) MTBF 287,215 hours Standards and Certifications Safety UL/ULC/EN 62368-1 (previously 60950-1) CE Mark CAN/CSA-C22.2 No. 62368-1-14 UL 61010-1 and 61010-2-201 EtherWAN Series Router Hardware Installation Guide...
  • Page 25 ISTA 2A 2001, test categorizes 1, 4,5, and 6 Power connector Digital input and pulse counting Digital Input & Pulse Counting VDC: 0 for ≤ 1V, 1 for ≥ 2.7 Relay Normally Open (NO) dry contact 1A@24VDC EtherWAN Series Router Hardware Installation Guide...
  • Page 26 Bandwidth 45 MHz Impedance 50 Ohm VSWR 2.0 Typical Gain RHCP Polarization 4 dBic (typical) Axial Ratio at elevation 5 dB (typical) Cellular Cellular/Telecom Regulatory FCC/ICES, RED, PTCRB/CTIA, CE Approvals Carrier Certifications AT&T, Verizon EtherWAN Series Router Hardware Installation Guide...
  • Page 27 Band 20 Band 25 1900 (Block C) Band 26 Band 29 Band 30 2300 Band 41 2500 HSPA+,UMTS Band 1 2100 Band 2 1900 Band 3 1800 Band 4 1700 Band 5 Band 8 EtherWAN Series Router Hardware Installation Guide...
  • Page 28 Band 8 Band 9 1700 Band 19 Cellular EN 301 908-1, EN 301- 908-2, EN 301 908-13 EN 62311:2019 / IEC 62311 Ed. 1.0 b:2007 EN 301 489-1 EN 301 489-17 EN 301 489-19 EtherWAN Series Router Hardware Installation Guide...
  • Page 29 Operating Bands - 704-902-928-960 MHz Frequency range 1427.9-1575.42 MHz 1710-2170 MHz 2400-2480-2690 MHz Impedance 50 OHM Gain 2-3 dBi VSWR of Ant 1 and Ant 2 < 3.0 On all bands including Band edges. EtherWAN Series Router Hardware Installation Guide...

  • Page 30: Appendix B - Label (Sample)

    Appendix B - Label (sample) EtherWAN Series Router Hardware Installation Guide...
  • Page 31 2. Insert a flat blade screwdriver into the slot and twist the base to release the clip. Alternatively a downward force on the clip will release the clip. 3. When the clip is released, pull the bottom of the router out slightly and remove it from the DIN rail. EtherWAN Series Router Hardware Installation Guide...

  • Page 32: Appendix D - Mechanical

    Appendix D - Mechanical EtherWAN Series Router Hardware Installation Guide...

  • Page 33: Appendix E - Maintaining And Troubleshooting

    • Cables are not bent, constricted, close to high amperages or exposed to extreme temperatures • Front panel LEDs are easily visible • Do not use solvents or cleaning agents on this router, if case gets dirty wipe with a dry cloth EtherWAN Series Router Hardware Installation Guide...
