Summary of Contents for AIDA UHD-200A

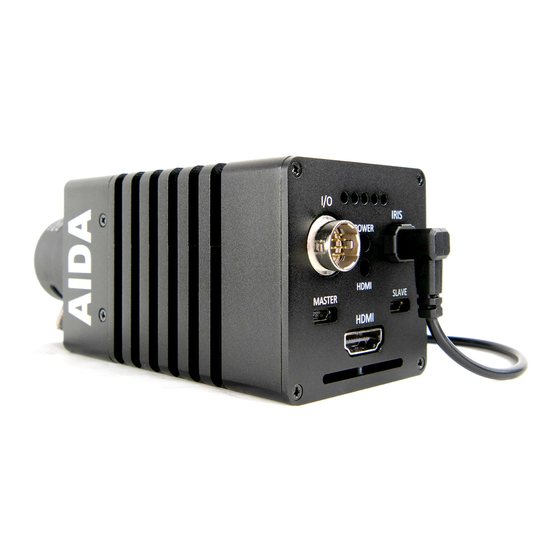

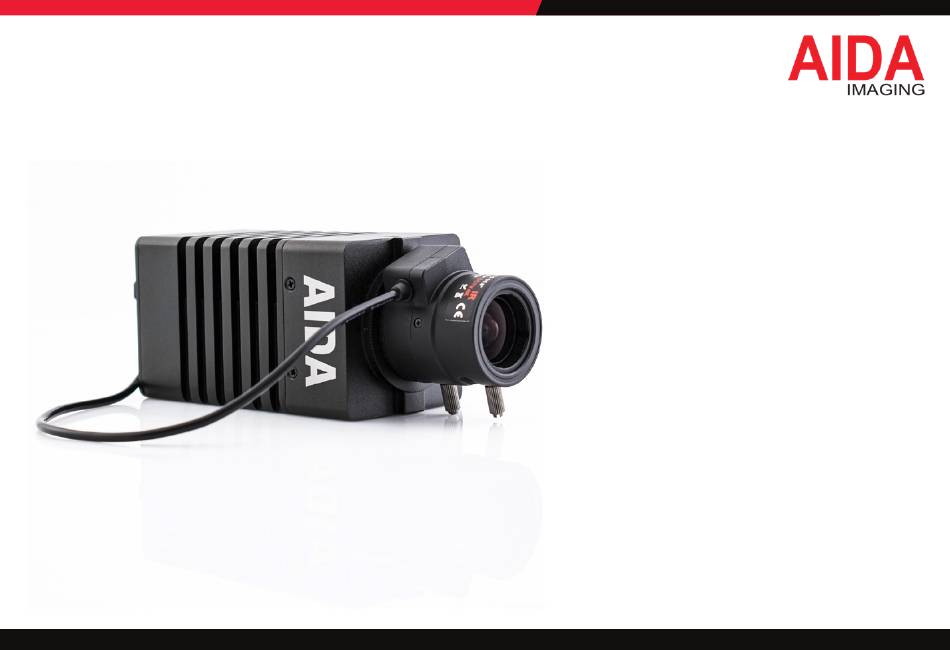

- Page 1 4K 60p POV Camera UHD-200A OPER ATI ON GU I DE Version 1.0 / April 2020 Reproduction of this manual, in whole or in part, by any means, is prohibited.
- Page 2 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
- Page 3 Warning continues Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center.
- Page 4 UHD-200...
- Page 5 FEATURES • 4K UHD 1/1.7” Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions. • Powered by a back-illuminated pixel technology. • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
- Page 6 WB CONTROL AWB - Auto white balance mode will adjust white balance within WHITE BALANCE 3,000˜K ~ 8,000˜K temperature. ATW - Auto trace white mode will adjust white balance within *MODE PUSH 1,900˜K ~ 11,000˜K temperature. BLUE ONE PUSH - One push mode is used if AWB or ATW cannot produce the proper RETURN white balance.
- Page 7 AE CONTROL SHUT FIX AE CONTROL SHUT FIX mode provides more detailed shutter speed option. *AE MODE SHUTTER All other controls are tuned for the selected shutter speed. SHUTTER 1/30 IRIS • SHUTTER : AUTO, 1/30 ~ 1/10,000 ( Shutter speed can be set ) •...
-
Page 8: Day & Night
AE CONTROL MANUAL AE CONTROL MANUAL mode provides more detailed fin tuning options. *AE MODE MANUAL • SHUTTER: AUTO, 1/30 ~ 1/10,000 ( Shutter speed can be set ) SHUTTER 1/100 IRIS • AGC : 0dB ~ 27dB ( Gain level can be set ) •... -
Page 9: Image Control
AUDIO MODE : OFF, LINE, MIC AUDIO Select the proper audio mode from this menu. *MODE LINE AUDIO LEVEL : -12dB ~ 48dB AUDIO LEVEL 0 dB MIC ATTENUATOR Audio level can be manually adjusted from this menu. AGC LIMIT SAMPLE BITS 24BITS MIC ATTENUATOR : ON, OFF... - Page 10 IMAGE CONTROL Camera image control can be adjusted from EFFECT menu. IMAGE CONTROL • BLACK WHITE LV : -64 ~ 64 ( Gamma level can be adjusted ) LENS SHADING SHUTTER • GAMMA CORRECT : DEFAULT, 0.4 ~ 1.0 ( Gamma level can be adjusted ) CONTRAST BRIGHTNESS •...
- Page 11 SPECIAL DEFOG : ON, OFF, AUTO DEFOG SETUP “DEFOG” menu improves foggy image. *STRENGTH • STRENGTH : 0 ~ 16 THRESHOLD AUTO LEVEL Change defog strength. RETURN • THRESHOLD : 0 ~ 3 Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant.
- Page 12 SPECIAL DISPLAY FUNCTION : DISPLAY FUNCITON Adjust image display features from this menu. *FREEZE MIRROR • FREEZE : OFF, ON IMAGE EFFECT ROTATION Image freeze can be turned ON or OFF. PICTURE STYLE PICTURE STYLE : OFF, STANDARD, VIVID, CLEAR, VIVID CLEAR, NEUTRAL PIC CONTRAST PIC SATURATION Different types of picture style can be applied.
- Page 13 PRIVACY POLY SELECT : L- TOPP, L- BOTTOM, R- TOP, R-BOTTOM Change the shape of the polygon by selecting the corner of the polygon. POSITION-X & POSITION-Y Change the size of the selected corner from “POLY SELECT” menu. SIZE-X & SIZE-Y Change the size of the privacy square.
- Page 14 RESET MODE : FACTORY, USER RESET Camera will reset to factory default or user saved value. *MODE FACTORY RESET : RESET SYSTEM INFO Reset the camera to the selected mode. SAVE AS USER RETURN SAVE AS USER : Save the user desired setting from the menu. ( Mode must be set to User )
-
Page 15: Specification
SPECIFICATION VIDEO LENS Image Sensor Lens 1/7” inch Progressive CMOS C/CS Mount (with 4K 3.6mm - 11mm vari-focal Sensor Size Diagonal 9.93mm(17:9) lens) Effective Pixels Horizontal: 4096, Vertical: 2160 AUDIO INPUT Pixel Size 1.85 µm x 1.85 µm Resolution Input 4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 3.5mm TRS Stereo Resolution/Rate 4K (4096 X 2160) 60/59.94/50/30/29.97/25/24... - Page 16 QUESTIONS Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
- Page 17 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
