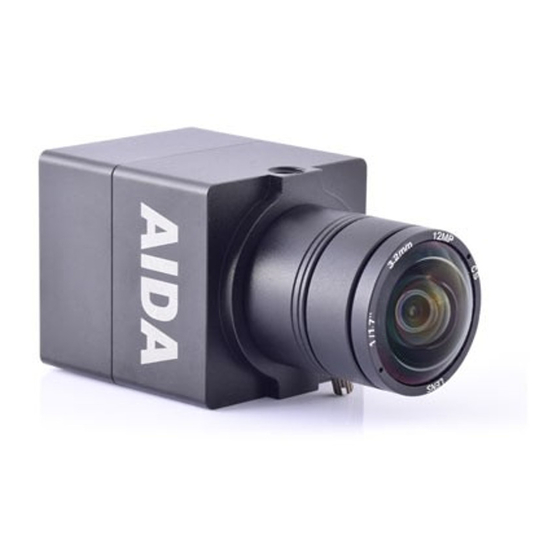

AIDA UHD-100 Operation Manual

Micro uhd hdmi pov camera
Hide thumbs Also See for UHD-100:
Table of Contents

Advertisement

Quick Links

Download this manual

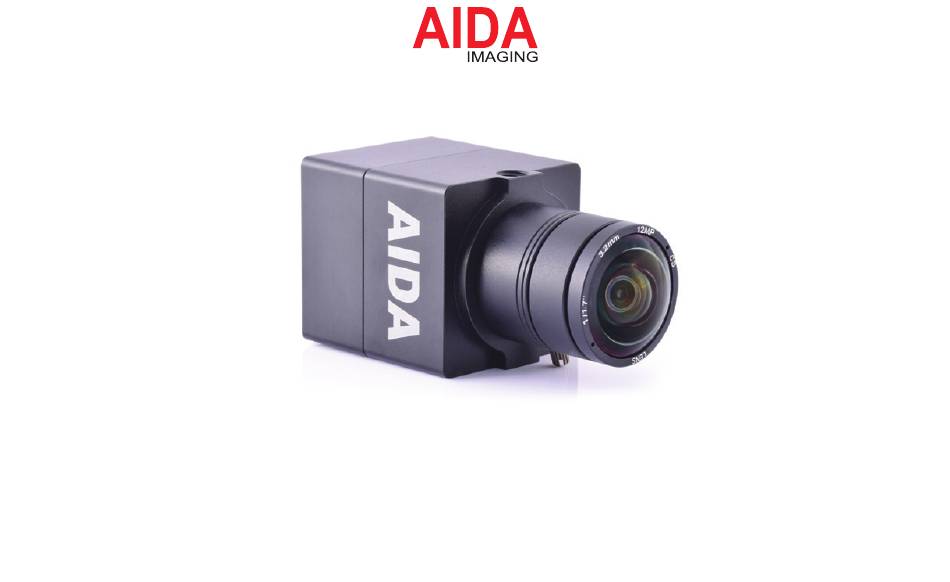

UHD-100
Micro UHD HDMI POV Camera
Operation Guide
Ver. 1.1 / MAR 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHD-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIDA UHD-100

Summary of Contents for AIDA UHD-100

  • Page 1 UHD-100 Micro UHD HDMI POV Camera Operation Guide Ver. 1.1 / MAR 2018...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
  • Page 3 When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury. Do not place conductive objects (e.g. screw drivers, coins, metal items, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects. Do not install the unit in humid, dusty, or sooty locations.
  • Page 4 UHD-100 FRONT REAR Tripod Mounting Hole Power, RS-485 AUTO IRIS Lens Connector POWER LED HDMI LED HDMI OUT RS-485 -...
  • Page 5 FEATURES 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions. Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction. Superb motion-compensated temporal noise reduction filter for motion video without blurring.
  • Page 6 OSD MENU Move the Cursor Up/Down to Choose Menu MAIN MENU To move from item to item in the menu, move the joystick > EXPOSURE to the Up/Down. > WHITE BALANCE DAY & NIGHT > Change the Value > PRIVACY >...
  • Page 7 EXPOSURE AUTO EXPOSURE Auto mode will adjust the exposure level automatically. AE MODE AUTO Detailed fine tuning options are available under this menu. SHUTTER OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX AGC MAX : IRIS “AGC MAX” sets the maximum gain value to control the video noise AGC MAX HIGH caused by Auto Gain Control.
  • Page 8 EXPOSURE SHUT FIX EXPOSURE SHUT FIX mode provides more detailed shutter speed option. AE MODE SHUT FIX All other controls are tuned for the selected shutter speed. SHUTTER AUTO AUTO, 1/30 ~ 1/10,000 SHUTTER : IRIS Shutter speed can be set. AGC MAX HIGH OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX...
  • Page 9 EXPOSURE AGC FIX EXPOSURE AGC FIX mode provides more detailed gain option. AE MODE All other controls are tuned for the selected gain value. SHUTTER AUTO, 0dB ~ 27dB, d2X ~ d9X IRIS AGC : AUTO Gain level can be set. AGC MAX HIGH OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX...

  • Page 10: Auto On/Off

    EXPOSURE IRIS SPEED : 0 ~ 5 EXPOSURE Electronic Iris speed can be controlled. (DC Iris lens only) AE MODE AUTO INDOOR, OUTDOOR, MANUAL LENS MODE : SHUTTER IRIS Lens setting will be optimized for the selected environment. (DC Iris lens only) AGC MAX HIGH SENS UP...

  • Page 11: White Balance

    WHITE BALANCE WHITE BALANCE MODE Auto white balance mode will adjust white balance within 1,900°K ~ PUSH 11,000°K temperature. BLUE SPEED : 0 ~ 7 SPEED White balance adjust speed can be adjusted. OFFSET-B OFFSET-B : 0 ~ 100 OFFSET-R RETURN “OFFSET-B”...
  • Page 12 WHITE BALANCE INDOOR WHITE BALANCE MODE INDOOR “INDOOR” mode will adjust white balance to indoor lighting PUSH condition. BLUE OUTDOOR SPEED OFFSET-B “OUTDOOR” mode will adjust white balance to outdoor lighting OFFSET-R condition. RETURN MANUAL WHITE BALANCE “MANUAL” mode will adjust white balance manually. MODE MANUAL PUSH...

  • Page 13: Day & Night

    DAY & NIGHT Adjust color or B&W setting from this menu. DAY(COLOR), NIGHT(B&W) DAY & NIGHT MODE : MODE DAY (COLOR) Set camera to either color mode or B&W mode. NIGHT COLOR ON, OFF NIGHT COLOR : COLOR BURST RETURN When “NIGHT COLOR”...

  • Page 14: Noise Reduction

    NOISE REDUCTION NOISE REDUCTION Camera noise level can be adjusted from this menu. MODE 2D + 3D OFF, 2D, 3D, 2D+3D DNR MODE : DNR LEVEL AUTO DNR APERTURE Digital noise reduction can be applied from this menu. RETURN AUTO, LOW, MIDDLE, HIGH DNR LEVEL : Noise reduction level can be adjusted from this menu.
  • Page 15 PRIVACY Privacy zone can be setup from this menu. ON, OFF MODE : PRIVACY MASK Enable “PRIVACY ZONE” ON or OFF. MODE SQUARE, POLYGON TYPE SQUARE TYPE: MASK 1 MASK NO. Select privacy zone shape. DISPLAY POLY SELECT WHITE MASK No : MASK1 ~ MASK8 POSITION-X L-TOP...
  • Page 16 EFFECT Camera image control can be adjusted from EFFECT menu. ON, OFF LENS SHADING : EFFECT Optical vignetting issue can be corrected from this menu. LENS SHADING ON, OFF(1.0) GAMMA CORRECT > GAMMA CORRECT: CONTRAST Gamma level can be adjusted. BRIGHTNESS SATURATION FRONT GM EN...

  • Page 17: Auto Saturate

    EFFECT CONTRAST : 0 ~ 20 EFFECT Contrast level can be adjusted. LENS SHADING BRIGHTNESS: GAMMA CORRECT > 0 ~ 20 CONTRAST Brightness level can be adjusted. BRIGHTNESS SATURATION SATURATION : 0 ~ 20 Saturation level can be adjusted. EDGE ENHANCE AUTO SATURATION MIDDLE HUE:...

  • Page 18: Pip Position

    SPECIAL Camera special functions can be adjusted from SPECIAL menu. ON, OFF DZOOM SPECIAL Digital Zoom and PIP function can be enabled from this menu. DZOOM > RATIO, POSITION, RETURN ZOOM CONTROL: DEFOG Adjust the digital zoom ratio and position. BACKLIGHT Use LEFT / RIGHT button to adjust the ratio, then press select.

  • Page 19: Auto Level

    SPECIAL ON, OFF, AUTO DEFOG DEFOG SETUP “DEFOG” menu improves foggy image. STRENGTH STRENGTH : 0 ~ 16 THRESHOLD AUTO LEVEL Change defog strength. RETURN THRESHOLD : 0 ~ 3 Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant. LOW, MID, HIGH AUTO LEVEL : Auto level value sets maximum strength value for automatic defog...

  • Page 20: Black Mask

    SPECIAL OFF, ON BACKLIGHT - HLM HLM can be adjusted. AREA ON, OFF AREA DISPLAY : AREA DISPLAY SIZE/POSITION > HLM AREA DISPLAY can be turned ON or OFF. LEVEL SIZE, POSITION, RETURN SIZE/POSITION : BLACK MASK DEFAULT Adjust BLC area window size. RETURN LEVEL : 0 ~ 20...

  • Page 21: Display Function

    SPECIAL DISPLAY FUNCTION DISPLAY FUNCTION Adjust image display features from this menu. FREEZE OFF, ON FREEZE : MIRROR MIRROR IMAGE EFFECT NEGATIVE Image freeze can be turned ON or OFF. ROTATION OFF, MIRROR, V-FLIP, BOTH(H/V) MIRROR : PICTURE STYLE VIVID RETURN Image mirror or flip can be operated.

  • Page 22: Cam Title

    SETUP Camera setup can be adjusted from this menu. OFF, ON CAM TITLE : SETUP Camera title can be turned ON or OFF. CAM TITLE RS-485 RS485 > MENU COLOR > VISCA communication control can be adjusted. FACTORY RESET > SYSTEM INFO >...
  • Page 23 SPECIFICATION: UHD-100 Image Sensor 1/2.5 inch Progressive CMOS Sensor Size Diagnal 7.20mm Effective Pixels Horizontal: 3840, Vertical: 2202 Pixel Size 1.62 µm (H) x 1.62 µm (V) Sync System Internal Sync. 2160p : 3840 x 2160 1080p / 1080i : 1920 x 1080...
  • Page 24 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities. 3.
