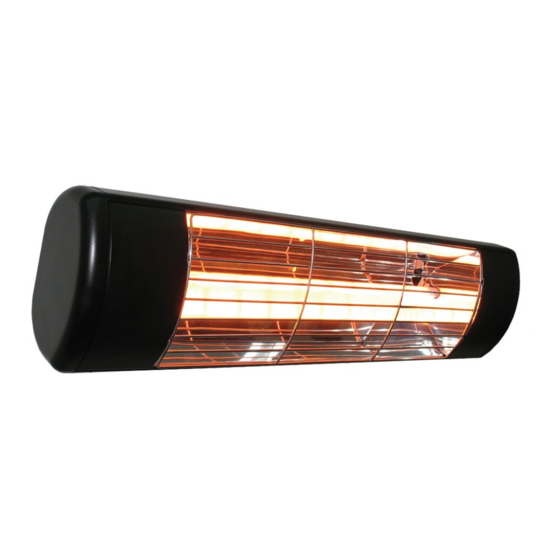

Consort QZWP15N Installation, Operation And Maintenance Instructions

Quartz Infrared Outdoor Heaters
The following information should be considered when installing Quartz
Infrared Heaters.
Installation should always be carried out by a qualified electrician or a
competent person in accordance with current electrical regulations, protected
by a suitably rated isolator and fuse or type3 or type C mcb.
•
The heater should be mounted horizontally where possible or at a
maximum angle of 35 degrees from the horizontal using the mounting
brackets provided to ensure adequate clearances.
•
If mounted on Parasols ensure the heater is left to completely cool before
closing.
•
A minimum air gap of 500mm should always be allowed between the top
of the heater and the ceiling, roof or canvas.
•
A safety distance of 1mtr should always be left in front of the heater.
•
Heaters should not be installed in areas where hazardous vapours may be
present as defined in BS5345
•
This fitting is rated classI and IP55 suitable for outdoor use. To maintain
the protection rating all connections to the mains must be done with a
minimum of IP55 equipment.
•
Ensure that there is no possibility of inflammable material coming into
contact with the heater, or is too near the heater.
The essential element of the heater is the halogen filled quartz linear lamp
with a tungsten element. This operates at about 1600°C and emits short wave
infrared radiant heat.
The lamp operates at full output almost instantly and emits a radiant energy of
1.6 – 1.8 microns.
Specifications
QZWP15N – 230-240V 1500W
Spare Lamp Part No. HE790901
This product conforms to EU Directive 2002/96/EC.
This appliance bears the symbol of the crossed waste bin. This
indicates that, at the end of its useful life, it must not be disposed
of as domestic waste, but must be taken to a collection centre for
waste electrical and electronic equipment. It is the user's
responsibility to dispose of this appliance through the appropriate
channels at the end of its useful life. Failure to do so may incur
the penalties established by laws governing waste disposal.
6.5 Amps Protection - IP55
INSTALLATION, OPERATION AND MAINTENANCE
INSTRUCTIONS FOR
W
EATHERPROOF
Q -Z R
UARTZ ONE
Catalogue Number QZWP15N
PLEASE RETAIN THIS LEAFLET FOR FUTURE MAINTENANCE
Consort Equipment Products Ltd
Registered Office:
Thornton Industrial Estate
Milford Haven, Pembrokeshire, SA73 2RT
Tel: 01646 692172 Fax: 01646 695195
Email: enquiries@consortepl.com
Web: www.consortepl.c
BS EN ISO 9001 Registered Company No FM12671
1.5 W
K
H
ADIANT EATER
