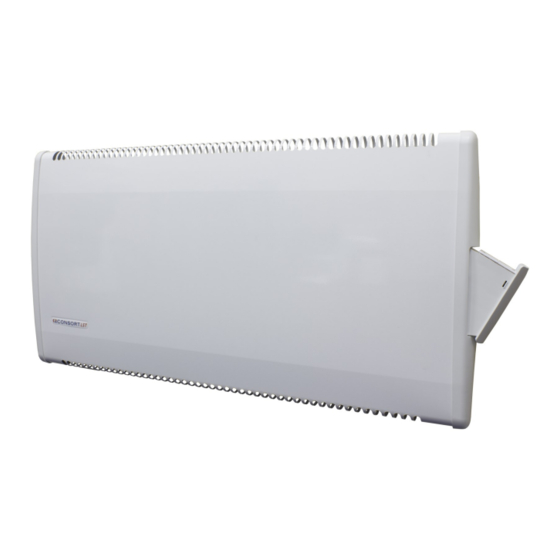

Installation & Control Guide for
Low Surface Temperature Convector Panel Heaters
with Electronic 7-Day Timer
Models
LST500ERF, LST800ERF
All electrical appliances produced by the Company are guaranteed for one year against
faulty materials or workmanship.
This applies only if the appliance has been used for
purposes in accordance with the instructions provided and has not been connected to an
unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired
by any person not authorised by us. This guarantee is offered to you as an extra benefit and
does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of
printing. In the interest of progress the Company reserve the right to vary specifications from
time to time without notice.
66001078 Iss 02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Consort LST500ERF
Summary of Contents for Consort LST500ERF

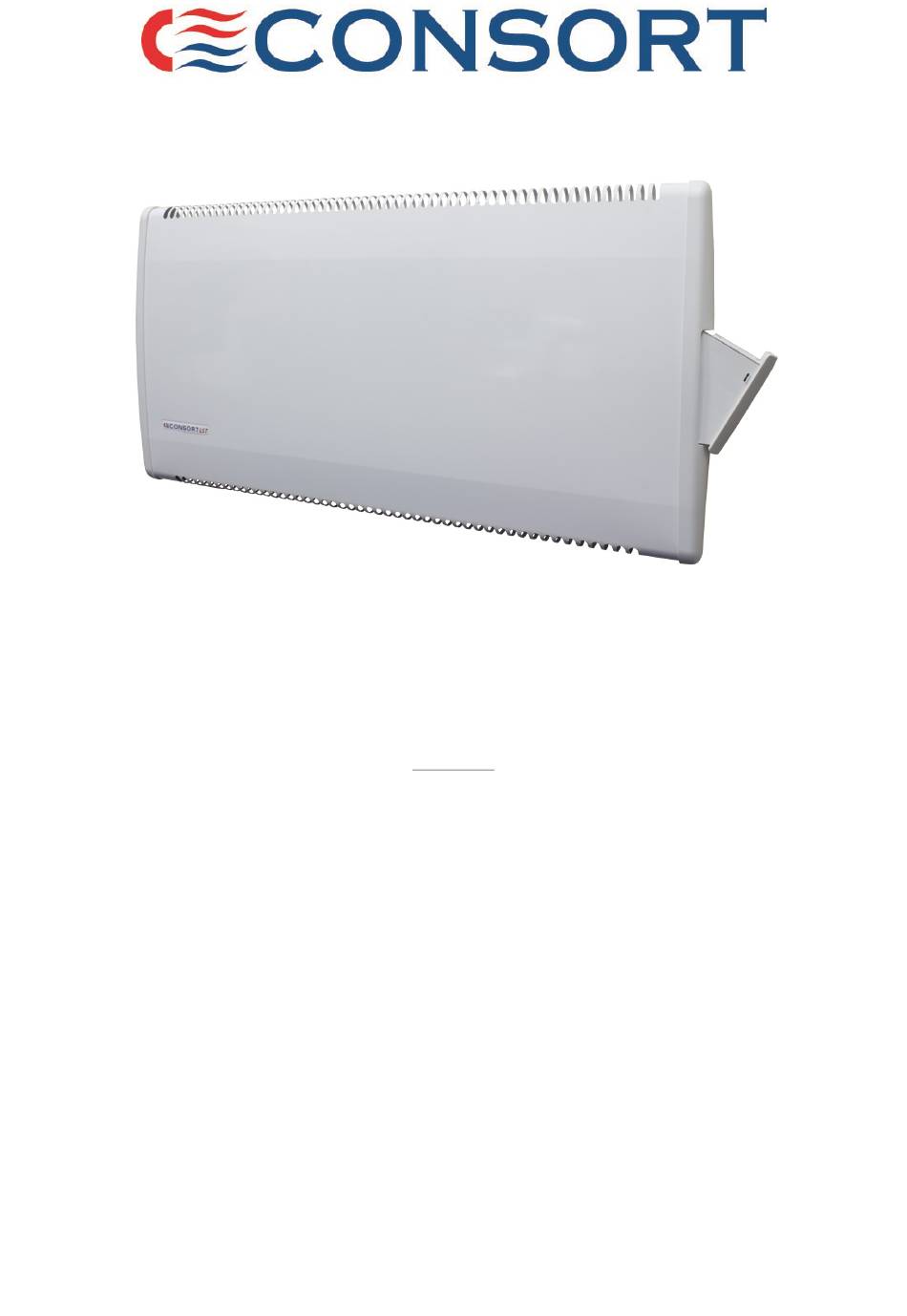

- Page 1 Low Surface Temperature Convector Panel Heaters with Electronic 7-Day Timer Models LST500ERF, LST800ERF All electrical appliances produced by the Company are guaranteed for one year against faulty materials or workmanship. This applies only if the appliance has been used for...
-
Page 2: General Safety
General safety This heater is fitted with a 3-core mains supply cable and must be permanently connected to the electricity supply via Our Low Surface Temperature heaters a double pole switch having 3mm gap on each pole. There have been designed and built to the NHS are no exceptions. -
Page 3: Installation
Installation ILLIMETRES ATTS LSTE500E LSTE800E 1183 66001078 Iss 02... -
Page 4: Temp Mode
Time Prog SET TIME SET PROGRAMME PRESS AND HOLD PRESS AND HOLD FOR 5 SECONDS FOR 5 SECONDS MODE SELECTION EMPERATURE SET Mode BOOST, MANUAL, Temp WHEN DISPLAY SHOWS SETBACK AND ROOM TEMPERATURE, PROGRAM PRESS TO ADJUST 1. Basic Operation 5. - Page 5 8. Set 7-day programme An example of one day programme on LSTE PROGRAM 1 PROGRAM 2 PROGRAM 5 PROGRAM 6 PROGRAM PROGRAM ºC 19ºC 22ºC 22ºC 16ºC 10ºC 4ºC 06:00 08:00 12:00 14:00 16:00 22:00 Logic diagram for setting programme on LSTE Press and hold PROG for 5 seconds to enter the time setting.
- Page 6 12. Open Window Detection 13. Setup Menu Ensuring you don’t waste energy on heating the Press and hold TEMP and MODE together for outside world, the heater is equipped with optional 5 seconds. open / closed window detection. The heater The display will enter the setup menu.
- Page 7 Locking screw Locking tab USTOMER ELPLINE Should you need any advice on the use of your new Consort product please contact our Helpline: Consort Equipment Products Limited Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT Tel: 01646 692172 Fax: 01646 695195 Email: technical@consortepl.com Web: www.consortepl.com...
