Communication Ports
4.4 EoVDSL Ports
•
Universal and Long-Reach EoVDSL ports are physically indistinguishable from each
other. However, the port type can be determined either from the order code or
through the RUGGEDCOM RS930W user interface.
EoVDSL ports can be connected using RJ11 male connectors.
IMPORTANT
Universal and Long-Reach EoVDSL ports (master or slave) must be connected to
EoVDSL ports (slave or master) of the same type. Connection between Universal
EoVDSL ports and Long-Reach EoVDSL ports is not supported. While master/slave
mode can be modified on Universal EoVDSL ports, the operating mode of all Long-
Reach EoVDSL ports is predetermined by hardware. As a result, master/slave mode
cannot be modified on Long-Reach EoVDSL ports.
LEDs
Each EoVDSL port has a Link/Act LED and a Master LED. On devices with Univer-
sal EoVDSL ports, the Master LED can be toggled on or off depending on whether
the port is set to be a Master or Slave. On devices with Long-Reach EoVDSL ports, the
Master LED will be on all the time if the device is set to be the Master, or off if the
device is set to be the Slave.
Master
Link/Act
Pin-Out

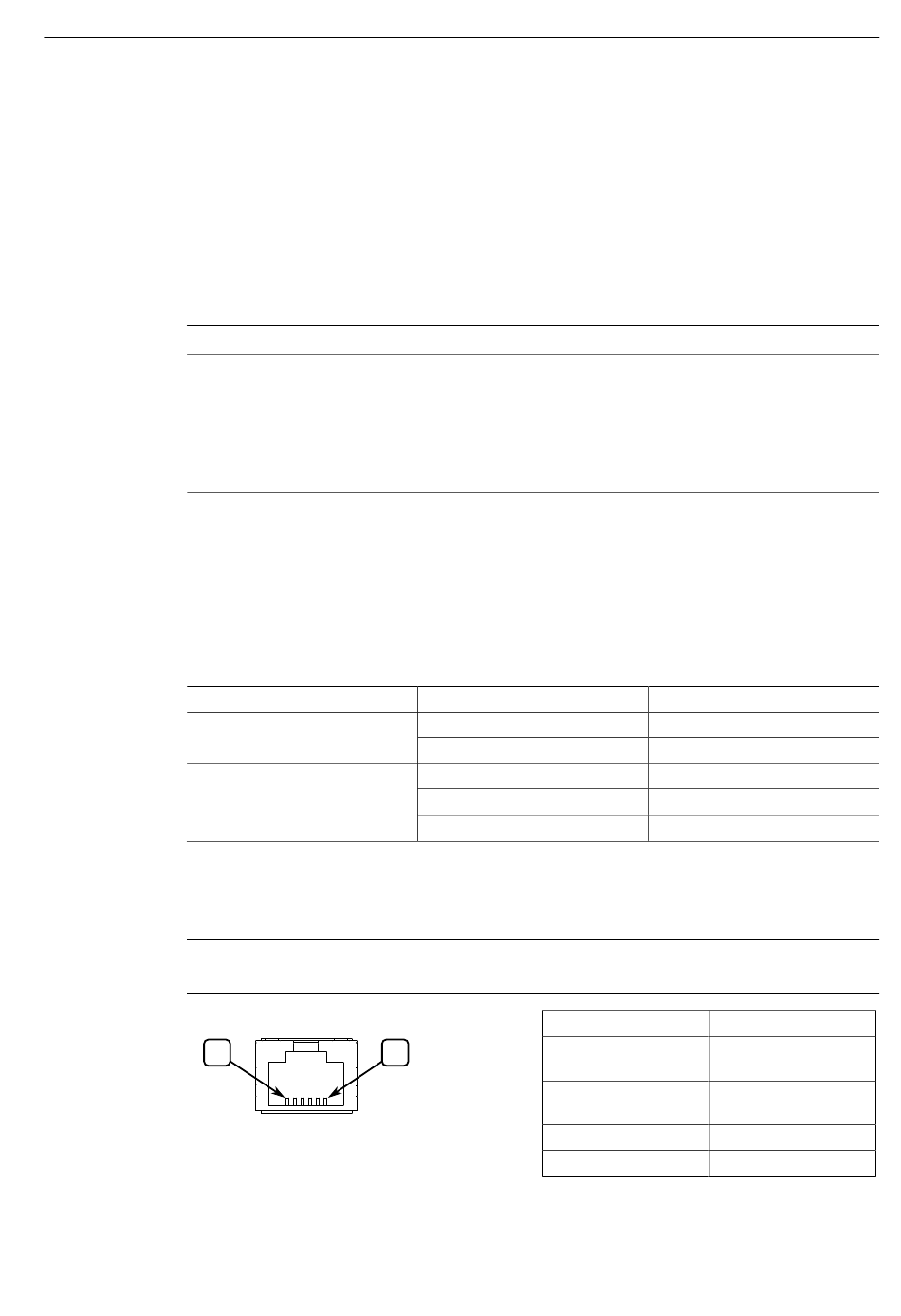

The following is the pin-out for the RJ11 connectors:
Note
All RJ11 connectors conform to the standard telephony pin configuration.
6
Figure 4.8
26
Long-Reach EoVDSL
Long-Reach EoVDSL ports are fixed as either Master or Slave, but offer asymmet-
ric data rates (upstream and downstream) up to 40 Mbps. They are best suited
for lower throughput connections spanning distances up to 5 km (3.1 mi).
LED
EoVDSL RJ11 Modem Port
State
Green (Solid)
Off
Green (Solid)
Green (Blinking)
Off
1
Description
The device is in Master mode.
The device is in Slave mode.
Link established
Link activity
No link detected
Pin Description
1 Reserved (Do
Not Connect)
2 Reserved (Do
Not Connect)
3 Ring
4 Tip
RUGGEDCOM RS930W
