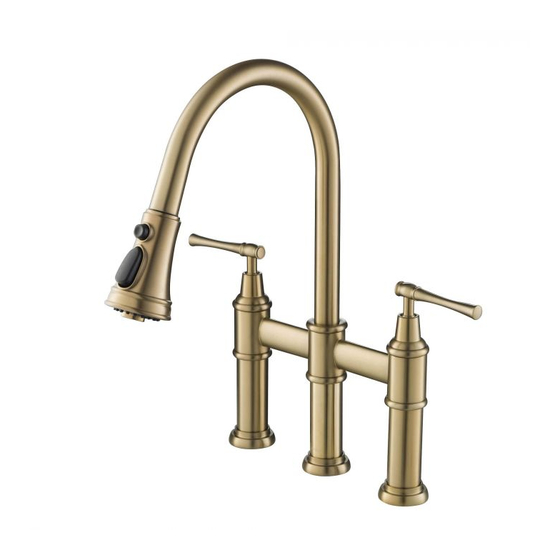

- Page 1 INSTALLATION MANUAL Allyn Transitional Bridge Kitchen Faucet with Pull Down KPF-3121 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. September 3, 2019...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 Diagram and Parts List 1. Faucet Body 2. Rubber & Metal Washer 3. Mounting Nut & Screws 4. Weight...
- Page 5 Faucet Installation Procedure 3 1/4" (83.2mm) 9 3/8" (239.07mm) Ø 1 7/8" (48mm) Ø 1 7/8" (48mm) 4" 4" (102mm) (102mm) 14 5/8" (370.4mm) Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Install faucet and secure mounting hardware Secure the faucet body with the rubber and metal washers (2) and the mounting nuts and screws (3). Do not overtighten. Step 2. Attach spray hose and weight Connect spray hose to quick connector attached to supply line.
- Page 7 Please note that doing so will remove the capability of this product to meet specific low-flow standards. Kraus is not liable for any alterations made to the product post-sale, and highly advises that you consult with your local or...
-
Page 8: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Spray Head SFS, MB, BG* KP44010 2. Check Valve KP44011 3. Washer KP44012 4. Spray Hose SFS, MB, BG* KP44013 5. Spout Washers KP44014 SFS, MB, BG* 6. Metal Handle KP44001 SFS, MB, BG* 7. -
Page 9: Troubleshooting
Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Remove button located at top of handle. cartridge needs to be reseated. - Page 10 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
-
Page 11: Commercial Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty... - Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
