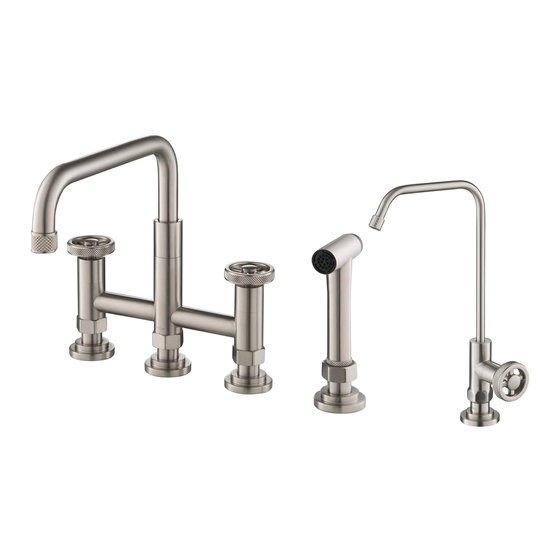

Kraus Urbix KPF-3125 Installation Manual
Industrial bridge kitchen faucet
Hide thumbs
Also See for Urbix KPF-3125:
- Installation manual (15 pages) ,
- Installation manual (15 pages) ,
- Installation manual (15 pages)
Related Manuals for Kraus Urbix KPF-3125
Summary of Contents for Kraus Urbix KPF-3125
- Page 1 INSTALLATION MANUAL Urbix Industrial Bridge Kitchen Faucet KPF-3125 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. September 3, 2019...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 Diagram and Parts List 1. Faucet Body 8. 2.2 gpm Aerator 2. Side Sprayer 3. Sprayer Hose 4. Quick Connector 5. Plug (for NO side sprayer installation) 6. Rubber & Metal Washer 7. Mounting Nut & Screws...
- Page 5 Faucet Installation Procedure 9 3/4" (248.96mm) 2 1/8" (53mm) typ. 4" 4" 4" (102mm) (102mm) (102mm) 14 1/8" (359.98mm) 10 1/4" (258.92mm) * - Adjustable height range. Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 NO Side Sprayer Option Step 1. Drill countertop Drill 3 holes into the countertop for the faucet body (1). Step 2. Install faucet assembly Install the faucet assembly through the holes in the countertop.
- Page 7 Step 3. Secure faucet assembly Secure the faucet body (1) with the rubber and metal washers (6) and the mounting nuts and screws (7). Do not overtighten. Make sure the plug (5) is installed tightly. Skip to Step 7. Side Sprayer Option Step 4.
- Page 8 Step 5. Install faucet assembly Install the faucet assembly through the holes in the countertop. Remove plug (5) and install quick connector (4). Connect the sprayer hose (3). Step 6. Secure faucet assembly Secure the faucet body (1) with the rubber and metal washers (6) and the mounting nuts and screws (7).
- Page 9 Step 7. Connect waterlines Connect waterlines to angle stops. Tighten with a wrench until snug. Turn on hot and cold angle stops and check for leaks. NOTE: Make sure filter washers are installed. Step 8. Flush waterway Remove the aerator from the spout.
- Page 10 Please note that doing so will remove the capability of this product to meet specific low-flow standards. Kraus is not liable for any alterations made to the product post-sale, and highly advises that you consult with your local or...
-
Page 11: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Aerator Housing SFS, MB, BG* KP44031 2. Aerator 1.8 GPM KP44029 3. Aerator 2.2 GPM KP44030 4. Aerator Washer KP44028 5. Spout O-Ring KP44036 6. Spout Sleeve KP44037 2.2GPM option KP44038 7. -
Page 12: Troubleshooting
Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Remove button located at top of handle. cartridge needs to be reseated. - Page 13 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
-
Page 14: Commercial Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty... - Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
