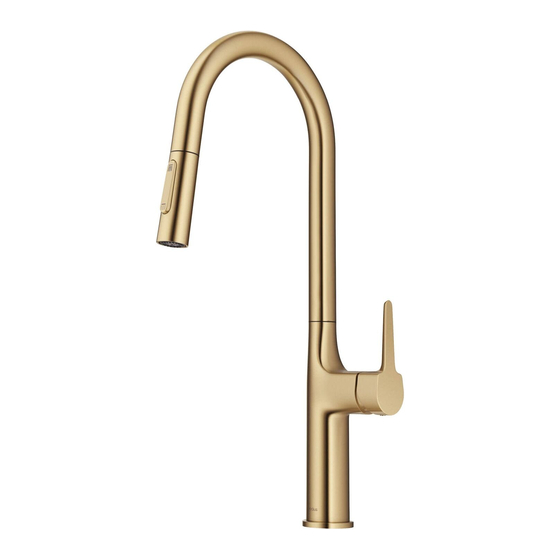

Pull down kitchen faucet
Hide thumbs
Also See for Oletto KPF-3101:
- Installation manual (13 pages) ,
- Installation manual (13 pages)
Related Manuals for Kraus Oletto KPF-3101
Summary of Contents for Kraus Oletto KPF-3101
- Page 1 INSTALLATION MANUAL Oletto Pull Down Kitchen Faucet KPF-3101 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. December 10, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure. - Page 4 1. Rubber & Metal Washer 2. Mounting Nut 3. Mounting Screws C. Weight D. Hex Key Base Seat Assembly For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or Customerservice@kraususa.com...
- Page 5 Faucet Dimension 10 1/4" 4 3/8" (260mm) (112mm) 8 5/8" (219mm) 1 3/4" 2 1/8" (45mm) (52.5mm) Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Installing the faucet assembly Insert all the hoses through the Base Seat Assembly (E). Insert the faucet body through the hole in the sink or countertop. Step 2. Securing the faucet assembly Install the rubber washer and metal washer (B1) onto the threaded mounting shank.
- Page 7 Step 3. Securing the faucet assembly Push the quick connector (1) firmly upward and attach it to the receiving block (2). Pull down moderately to ensure the connection has been made. Step 4. Attach the counterweight Install the weight (C) on the marked area of the spray hose.
- Page 8 Step 5. Making the waterline connections Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a wrench. Do not overtighten. Step 6. Flushing and checking for leaks Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction.
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Sprayer Head KP46002 CH,SFS,MB,BG* 2. Check Valve KP46025 3. Sprayer Hose KP46001 CH,SFS,MB,BG* KP46022 4. Handle Assembly CH,SFS,MB,BG* 5. Cartridge Cover KP46015 CH,SFS,MB,BG* KP46013 6. Locking Nut 7. Cartridge KP46012 8. Base Seat Assembly KP46021 CH,SFS,MB,BG* 9. -
Page 10: Troubleshooting
Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Remove button located at top of handle. cartridge needs to be reseated. - Page 11 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
-
