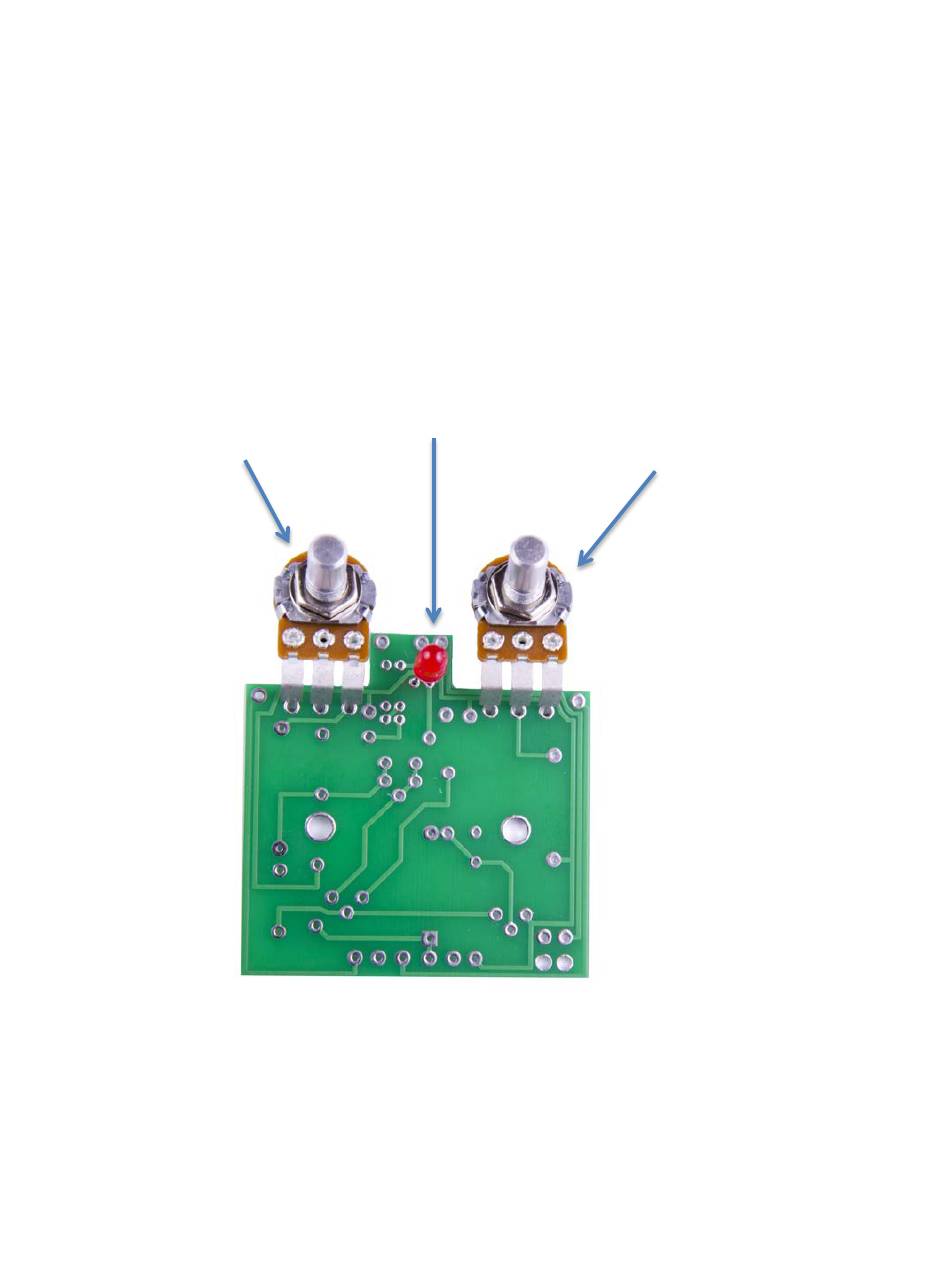

Step 2: Flip the PCB over so that the bottom or solder side is up. Insert the
B1k (FUZZ) & A500k (VOLUME) potentiometers, and the LED into the
bottom side of the PCB.
DO NOT SOLDER ANYTHING YET!!!
The
LED will have one lead that is longer than the other.
MAKE SURE THE
LONGER LEAD GOES IN THE HOLE MARKED "N" AND THE
SHORTER LEAD IN THE HOLE MARKED "P"!!!!!!
LED
A500k
B1k
