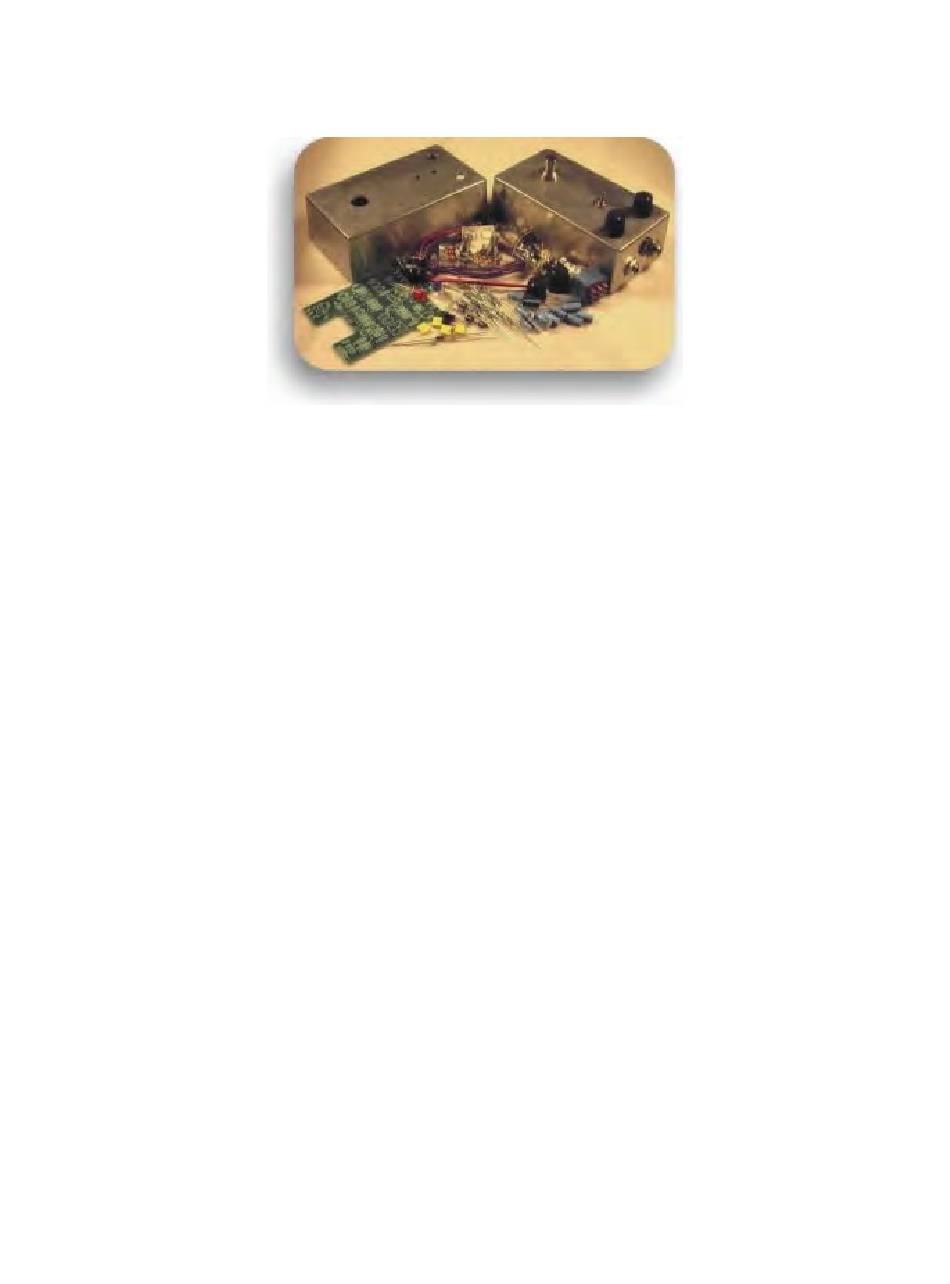

BYOC Octave Fuzz Kit Instructions
Warranty:
BYOC, LLC guarantees that your kit will be complete and that all parts and
components will arrive as described, functioning and free of defect. Soldering,
clipping, cutting, stripping, or using any of the components in any way voids this
guarantee. BYOC, LLC guarantees that the instructions for your kit will be free of
any major errors that would cause you to permanently damage any components in
your kit, but does not guarantee that the instructions will be free of typos or minor
errors. BYOC, LLC does not warranty the completed pedal as a whole functioning
unit nor do we warranty any of the individual parts once they have been used. If
you have a component that is used, but feel it was defective prior to you using it, we
reserve the right to determine whether or not the component was faulty upon
arrival. Please direct all warranty issues to:
Sales@buildyourownclone.com this would include any missing parts issues.
Return:
BYOC, LLC accepts returns and exchanges on all products for any reason, as long as they
are unused. We do not accept partial kit returns. Returns and exchanges are for the full
purchase price less the cost of shipping and/or any promotional pricing. Return shipping
is the customer's responsibility. This responsibility not only includes the cost of shipping,
but accountability of deliver as well. Please contact sales@buildyourownclone.com to
receive a return authorization before mailing.
Tech Support:
BYOC, LLC makes no promises or guarantees that you will successfully complete your
kit in a satisfactory manner. Nor does BYOC, LLC promise or guarantee that you will
receive any technical support. Purchasing a product from BYOC, LLC does not entitle
you to any amount of technical support. BYOC, LLC does not promise or guarantee that
any technical support you may receive will be able to resolve any or all issues you may
be experiencing.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BYOC Octave Fuzz
Summary of Contents for BYOC Octave Fuzz
- Page 1 Sales@buildyourownclone.com this would include any missing parts issues. Return: BYOC, LLC accepts returns and exchanges on all products for any reason, as long as they are unused. We do not accept partial kit returns. Returns and exchanges are for the full purchase price less the cost of shipping and/or any promotional pricing.
-
Page 2: Revision Notes
That being said, we will do our best to help you as much as we can. Our philosophy at BYOC is that we will help you only as much as you are willing to help yourself. We have a wonderful and friendly DIY discussion forum with an entire section devoted to the technical support and modifications of BYOC kits. - Page 3 OCTAVE FUZZ KIT INSTRUCTION INDEX Parts Checklist……………………....……..page 4 - 5 Populating the Circuit Board…………....page 6 - 12 Assembly………………………………....page 13 - 15 Wiring the Footswitch & Jacks........page 16 - 18 Schematic..............page 19...
- Page 4 Parts Checklist for BYOC Octave Fuzz Resistors: 1 - 220ohm (red/red/black/black/brown) 1 - 470ohm (yellow/purple/black/black/brown) 1 - 1k (brown/black/black/brown/brown) 1 - 1.2k (brown/red/black/brown/brown) 1 - 4.7k (yellow/purple/black/brown/brown) 1 - 22k (red/red/black/red/brown) 1 - 47k (yellow/purple/black/red/brown) 1 - 180k (brown/gray/black/orange/brown) 1 - 220k (red/red/black/orange/brown)
- Page 5 Hardware: 1 - drilled enclosure w/ 4 screws 1 - BYOC Octave Fuzz circuit board 1 - SPDT PC mounted toggle switch 1 - 3PDT footswitch 2 - knobs 1 - AC adaptor jack 1 - ¼”mono jack 1 - ¼”stereo jack...
-
Page 6: Populating The Circuit Board
Populating the Circuit Board STEP 1: Add the resistors. Resistors are not polarized, so it does not matter which end goes in which solder pad. - Page 7 STEP 2: Add the diodes. The 1N4001 will be black with a silver stripe and is highlighted in yellow. The Germanium diodes will go in the spots highlighted in red. Be sure to match the end of the diode with the stripe to the layout on the PCB.
- Page 8 STEP 3: Add the film and ceramic disc capacitors. These are not polarized so they can be inserted into the PCB in either direction. The ceramic disc capacitor is highlighted in yellow.
- Page 9 STEP 4: Add the transistors. Match the flat side of the transistor to the flat side of the layout on the PCB. The 2N3904 transistors are highlighted in red. The 2N3906 transistor is highlighted in yellow.
- Page 10 STEP 5: Add the aluminum electrolytic capacitors. These are polarized. The positive end will have a longer lead and should go in the square solder pad. The negative end will have a shorter lead with a black strip running down the body of the capacitor.
- Page 11 STEP 6: Add the transformer. A transformer has a primary and secondary side. The primary side will be labeled with a “P”. Insert the transformer into the PCB so that the primary side matches the PCB.
- Page 12 Step 7: Add the battery snap. Thread the solder ends of the snap through the under side of the strain relief holes. Insert the stripped ends of the battery snap wires into the topside of their respective solder pads. Remember, the red wire goes in the “+” hole and the black wire goes in the “-”...
- Page 13 Assembly Step 1: Mount the DC adaptor jack to the enclosure. Step 2: Connect the TIP (negative) terminal of the DC adaptor jack to the “-” eyelet on the PCB with 2 inches of hook up wire. Connect the SLEEVE of the DC adaptor jack to the “+”...
- Page 14 center of the PCB with 2” of hookup wire. Step 3: Flip the PCB over so that the bottom or solder side is up. Insert the two potentiometers, the LED, and the toggle switch into the bottom side of the PCB. DO NOT SOLDER!!!There are only two ways in which the toggle switch can fit into the PCB.
- Page 15 Step 4: Hold the PCB in one hand so that the component side of the PCB is in the palm of your hand and the bottom side with the pots, toggle switch and LED is facing up. Now use your other hand to guide the predrilled enclosure onto the PCB assembly so that the pots, toggle switch and LED all go into there respective holes.
- Page 16 Wiring the footswitch, and jacks Step 1: Install the 1/4” jacks to the enclosure. Be sure to turn the OUT jack a 1/4 turn counter clockwise so that solder terminal for the tip does not short out against the enclosure.
- Page 17 Step 2: Cut 4 x 3/4” pieces of wire. Strip 1/8” off each end. These will be used to connect lugs/eyelets 1, 2, 7, & 8 Cut 1 x 1” piece of wire. Strip 1/8” off each end. This will be used to connect lug/eyelet 5 Cut 1 x 1.5”...
- Page 18 Cut 1 x 1.5” piece of wire. Strip 1/4” off each end. This will be used to connect the ring of the IN jack to the ring eyelet on the PCB. Step 3: Solder the wires for the footswitch. Step 4: Remove the PCB assembly from the enclosure. Solder the open ends of the wires that you just soldered to the footswitch to their respective eyelets on the PCB.
- Page 20 For high resolution image, visit: http://byocelectronics.com/octavefuzzschematic.pdf Please visit http://byocelectronics.com/board for any technical support copyright 2018 B.Y.O.C., LLC...
