Atlantic Furniture Portland Headboard Assembly Instructions

Before assembling your headboard, please read through these
instructions carefully and familiarize yourself with the different parts.
please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726
PARTS LIST
1 HEADBOARD PANEL 1 PC
2 LEFT LEG 1 PC
3 RIGHT LEG 1 PC
4 SPACER BLOCK 2 PCS
5 PILLOW STOP 1 PC
6 PACKING STICK 2 PCS
Remove packing stick (6) from headboard panel (1) and
Step 1
locator holes on spacer block (4) and pillow stop (5). Attach the spacer blocks (4) to the legs (2) and
(3), using wood screws (D), as shown below. Tighten with Phillips screwdriver. (customer supplied)
6
6
Attach the legs (2) and (3) to the headboard panel (1) and pillow stop (5),
Step 2
using JCB (B) and barrel nut (C). Tighten with the Allen wrench (H).
C
B
B
2
B
BACK VIEW
C
If you purchased a wood headboard to attach to metal bed frame, please refer to page 3.

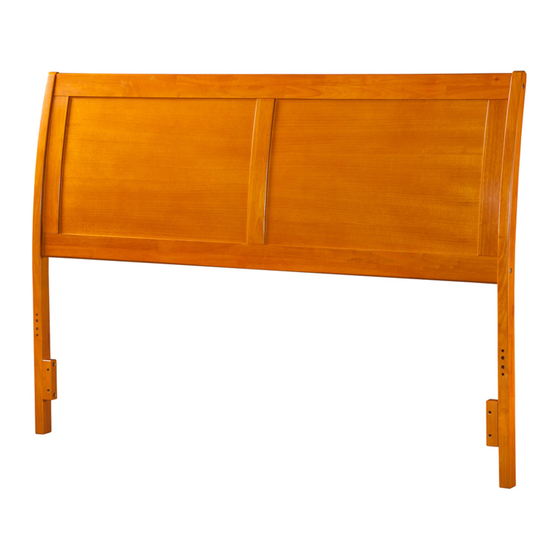

PORTLAND HEADBOARD
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
Wooden dowel - 8 pcs
Spare - 2 pcs
B
JCB M6 X 70mm (2 3/4") - 4 pcs
C
Barrel nut - 4 pcs
Spare - 1 pc
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
1
1
C
5
QUEEN > KING
D
Wood screw - 4 pcs
Spare - 1 pc
Spare - 1 pc
H
Allen wrench - 1pc
Spare - 1pc
4
5
A
A
C
B
B
3
HARDWARE
HARDWARE FOR METAL BED FRAME
E
JCB M6 X 25mm (1") - 4 pcs
F
Flat washer - 4 pcs
G
Split washer - 4 pcs
DISCARD
. Insert wooden dowels (A) to the
D
D
4
PO :
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
4
3
2
Adult assembly
Page 1 of 3
