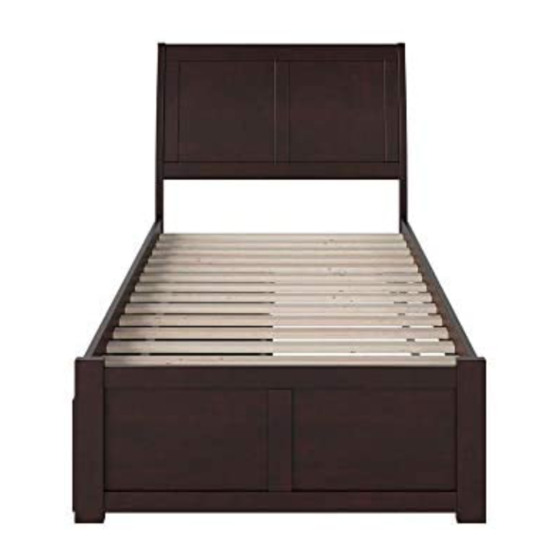

Atlantic Furniture Portland Assembly Instructions

READY
please contact Atlantic Furniture at service@atlanticfurniture.com 1-800-955-3726 / M-F 9:00-5:00 EST
PARTS LIST
1 HEADBOARD PANEL 1 PC
2 LEFT LEG
3 RIGHT LEG
SPACER BLOCK 2 PCS
4
NOTE: WE INCLUDE SPARE HARDWARE IN CASE THE ALLEN WRENCH, WOOD DOWEL, JCB, BARREL NUT, WOOD SCREW, SPLIT OR FLAT WASHER ARE DAMAGED DURING ASSEMBLY.

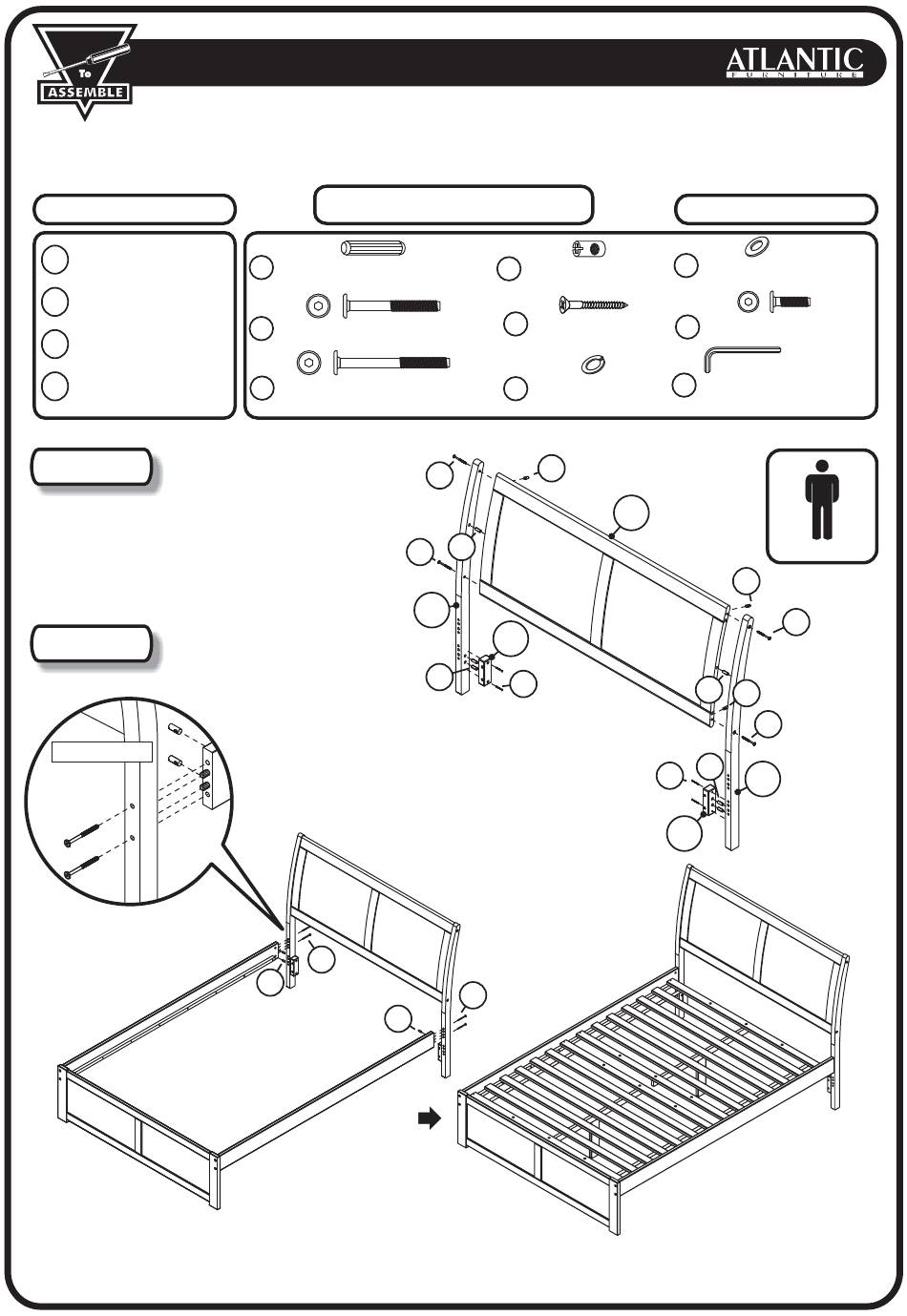

Step 1
Attach the legs (2)(3) to headboard panel (1),
using wood dowel (A), JCB (B) and barrel nut (D).
Tighten with Allen wrench (I).
Attach spacer block (4) to the legs, using wood
dowel (A) and wood screw (E)Tighten with the
Phillips head screwdriver (Customer Supplied).
Step 2
BACK VIEW
Attach bed frame assemblies to the headboard assemblies, using JCB M6 X 90mm (C) and barrel nut (D) as shown.
Tighten with allen wrench (I). For Slat kit assembly, follow assembly instructions included with slat kit.
Portland Headboard
PORTLAND HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your Headboard, please read through these
instructions carefully. Familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
Instructions apply for all sizes of bed
TWIN > FULL > QUEEN > KING
A Wood dowel - 6 pcs
Spare - 2 pcs
1 PC
JCB M6 X 70mm(2 3/4") - 4 pcs
B
1 PC
C
JCB M6 X 90mm(3 1/2") - 4 pcs
C
D
Barrel Nut - 4 pcs
D
E Wood Screw - 4 pcs
Spare - 1 pc
F Split Washer - 4 pcs
Spare - 1 pc
D
B
A
B
2
4
A
E
C
D
HARDWARE
G Flat Washer - 4 pcs
Spare - 1 pc
JCB M6 X 25mm(1") - 4 pcs
H
Spare - 1 pc
Allen Wrench - 1pc
I
Spare - 1 pc
1
A
A
E
4
Spare - 1 pc
Spare - 1 pc
Spare - 1pc
Adult Assembly
D
B
D
B
3
Page 1 of 2
