READY
1
HEADBOARD PANEL 1 PC
2
LEFT LEG
3
RIGHT LEG
NOTE : WE INCLUDE SPARE HARDWARE IN CASE THE ALLEN WRENCH, JCB , BARREL NUT, WOOD BUTTON OR WASHER ARE DAMAGED DURING ASSEMBLY.

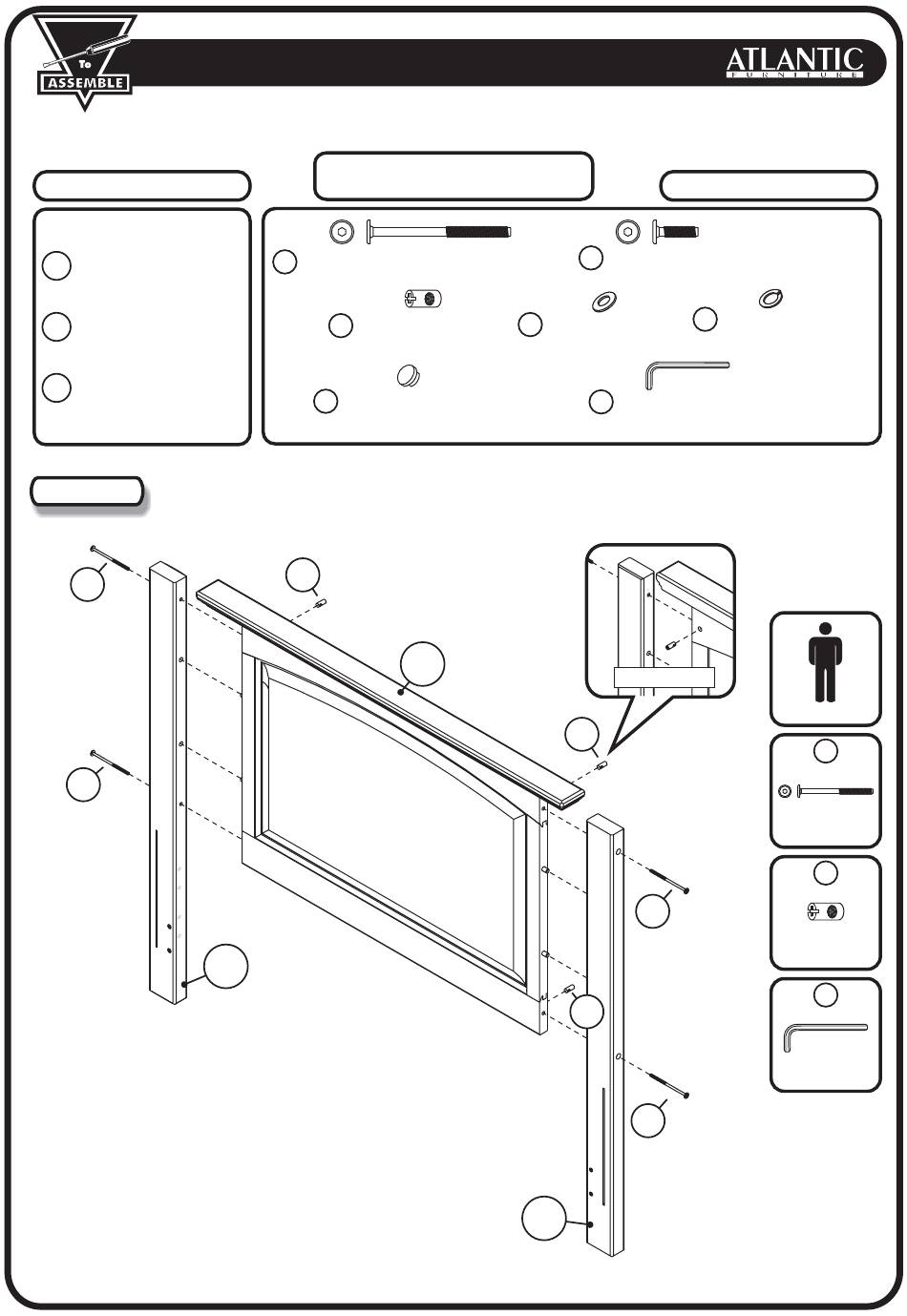

Step 1
Attach left, right legs (2)(3) to the headboard panel (1) as shown below. Using JCB (A) and barrel
nut (B) tighten with Allen wrench (G).
A
A
Monterey Headboard & Bed
MONTEREY HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your Headboard, please read through these
instructions carefully, familiarize yourself with the different parts.
Instructions apply for all sizes of bed
Twin > Full > Queen > King
A
JCB M6 X 110mm (4 3/8") - 4 pcs
1 PC
B
Barrel Nut - 4 pcs
1 PC
C
Wood Button - 4 pcs
B
2
Spare - 1 pc
E
Flat Washer - 4 pcs
Spare - 1 pc
Spare - 1 pc
1
3
HARDWARE
D
JCB M6 X 25mm (1") - 4 pcs
Spare - 1 pc
F
Split Washer - 4 pcs
Spare - 1 pc
G
Allen Wrench - 1 pc
Spare - 1 pc
BACK VIEW
B
A
B
A
Spare - 1 pc
Adult Assembly
A
JCB M6 X 4 3/8"
B
Barrel Nut M6
G
Allen Wrench
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Atlantic Furniture Monterey Headboard
Summary of Contents for Atlantic Furniture Monterey Headboard
- Page 1 Attach left, right legs (2)(3) to the headboard panel (1) as shown below. Using JCB (A) and barrel nut (B) tighten with Allen wrench (G). BACK VIEW Adult Assembly JCB M6 X 4 3/8” Barrel Nut M6 Allen Wrench Monterey Headboard & Bed Page 1 of 6...
- Page 2 Adult Assembly Wood Button Congratulations ! Your Monterey Headboard is now ready to assembly. We recommend that you recheck that all screws are tight, and that all parts are secure before use. Periodically to ensure lasting Safety. Monterey Headboard & Bed...
- Page 3 Instructions apply for all sizes of bed Twin > Full > Queen > King BED SHOWN WITH OPEN FOOTRAIL Adult Assembly Phillips head screwdriver Customer supplied BED SHOWN WITH FLAT PANEL FOOTBOARD BED SHOWN WITH RAISED PANEL FOOTBOARD Monterey Headboard & Bed Page 3 of 6...
- Page 4 Attach the long rail (04) to the headboard (02) using bed hook as shown below. Adult Assembly Using the upper set of pins when using only mattress, and using the lower set of pins if using both box spring and mattress. Monterey Headboard & Bed Page 4 of 6...
- Page 5 Congratulations ! Your Monterey Bed is now ready for use. We recommend that you recheck that all screws are tight, and that all parts are secure before use. Periodically to ensure lasting Safety. Monterey Headboard & Bed Page 5 of 6...
- Page 6 READY MONTEREY HEADBOARD with METAL FRAME ASSEMBLY INSTRUCTIONS Before assembling your Bed, please read through these instructions carefully, familiarize yourself with the different parts. Instructions apply for all sizes of bed Twin > Full > Queen > King PARTS LIST...
