Atlantic Furniture PORTLAND Assembly Instructions

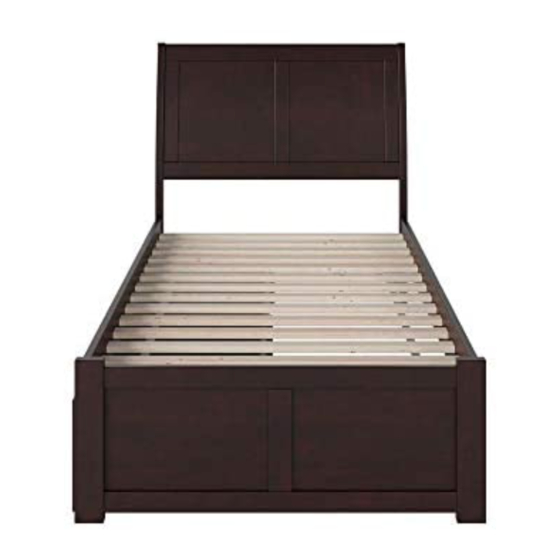

PORTLAND BED WITH MATCHING FOOTBOARD
Before assembling your headboard, please read through these
instructions carefully and familiarize yourself with the different parts.
please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726
PARTS LIST
1 HEADBOARD PANEL 1 PC
2 LEFT LEG 1 PC
3 RIGHT LEG 1 PC
4 SPACER BLOCK 2 PCS
5 PACKING STICK 2 PCS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Remove packing stick (5) from headboard panel (1) and
to the locator holes on spacer block (4). Attach the spacer blocks (4) to the legs (2) and (3), using
wood screws (D), as shown below. Tighten with Phillips screwdriver. (customer supplied)
5
5
Attach the legs (2) and (3) to the headboard panel (1),
Step 2
using JCB (B) and barrel nut (C). Tighten with the
Allen wrench (H).
C
B
B
2
B
BACK VIEW
C
To ensure lasting safety, we recommend that you periodically check
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
TWIN > FULL
A
Wooden dowel - 4 pcs
Spare - 1 pc
B
JCB M6 X 70mm (2 3/4") - 4 pcs
C
Barrel nut - 4 pcs
Spare - 1 pc
1
1
C
Congratulations!
Your headboard is now assembled.
that all screws are tight and all parts are secure.
D
Wood screw - 4 pcs
Spare - 1 pc
Spare - 1 pc
H
Allen wrench - 1pc
Spare - 1pc
DISCARD
4
A
C
B
B
3
HARDWARE
HARDWARE FOR METAL BED FRAME
E
JCB M6 X 25mm (1") - 4 pcs
Spare - 1 pc
F
Flat washer - 4 pcs
Spare - 1 pc
G
Split washer - 4 pcs
Spare - 1 pc
. Insert wooden dowels (A)
D
D
4
2
PO :
READY
TO
ASSEMBLE
4
3
Adult assembly
Page 1 of 2
