The length and width of the upper and lower bunk mattress and foundation are as follows :
Size
Twin
Full
Ensure thickness of upper and lower mattress and foundation combined does not exceed 9 ½"
and that the mattress is at least 5" below upper edge of guardrails.
Replacement parts, including additional guardrails, may be obtained from any
!
Follow the information on the warnings appearing on the upper bunk end structure
( 1 )
and on the carton. Do not remove warning label from bed.
Always use the recommended size mattresses or mattress support, or both,
( 2 )
to help prevent the likelihood of entrapment or falls.
( 3 )
Surface of mattress must be at least 5 in. (127mm) below the upper edge of guardrails.
( 4 )
Do not allow children under 6 years of age to use the upper bunk.
( 5 )
Periodically check and ensure that the guardrail, ladder, and other component are
in their proper position, free from damage, and that all connectors are tight.
( 6 )
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
Always use ladder for entering or leaving upper bunk.
( 7 )
( 8 )
Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
( 9 )
Use of a night light may provide added safety precaution for a child using the upper bunk.
(10)
Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed
next to the wall, the guardrail that runs the full length of the bed should be placed against
the wall to prevent entrapment between the bed and the wall.
(11)
The use of water or sleep flotation mattresses is prohibited.
(12)
STRANGULATION HAZARD : Never attach or hang items to any part of the bunk bed
that are not designed for use with the bed; for example, but not limited to, hooks, belts
and jump ropes.
(13)
Keep these instructions for future reference.

Size of Mattress and Foundation

Length
74"- 75"
74"- 75"
You must use only this size mattress.
This Bunk Bed uses a slat kit for mattress foundation.

Replacement Parts

Atlantic Furniture dealer

SAFETY WARNINGS

Width
37 ½"- 38 ½"
52"- 53"
Thickness
9 ½" max
9 ½" max
!
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WESTBROOK STAIRCASE BUNKBED and is the answer not in the manual?

Questions and answers

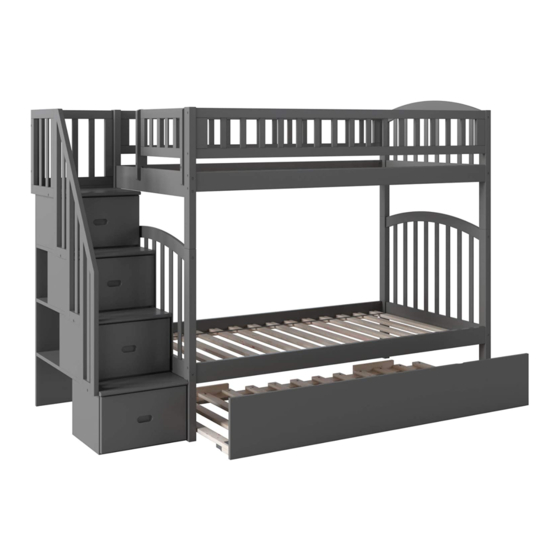

Summary of Contents for Atlantic Furniture WESTBROOK STAIRCASE BUNKBED

  • Page 1 This Bunk Bed uses a slat kit for mattress foundation. Replacement Parts Replacement parts, including additional guardrails, may be obtained from any Atlantic Furniture dealer SAFETY WARNINGS Follow the information on the warnings appearing on the upper bunk end structure ( 1 ) and on the carton.
  • Page 2 Please note that you will require a Phillips head screwdriver and an Allen wrench. ATTENTION! If you receive a damaged or defective item, please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726 Adult assembly Allen wrench...
  • Page 3 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL PARTS LIST HARDWARE A UPPER PANEL B UPPER PANEL LEFT, RIGHT END CAP SHORT GUARD RAIL 1 BOX LOWER PANEL LEFT POST RIGHT POST SHORT RAIL FRONT, BACK GUARD RAIL 1 BOX SIDE RAILS...
  • Page 4 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL STEP Attach the side rails (11) to the upper panels (02) (03) , using JCB M6 X 3 ” (A) and barrel nut ( ). Tighten with the Allen wrench (R). JCB M6 X 3 ”...
  • Page 5 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL STEP Attach the front, back guard rails (10) to the upper panel posts using Allen screw Tighten with the Allen wrench (R). Adult assembly Allen crew ” Allen wrench STEP Insert wooden dowel (C) as shown below.
  • Page 6 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL Attach the short guard rail to the upper panel (03-B) as shown below, using wood screw (I), STEP tighten with the Phillips head screwdriver. ( Customer supplied ) INSIDE VIEW Adult assembly WOOD SCREW 1 1/4”...
  • Page 7 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL Install Large L-Bracket (L) to the lower panel, using wood screw (J) tighteen with Phillips head STEP screwdriver ( Customer supplied ). Be sure to align. Attach the extension full to the lower panels (06) as shown below, using metal bracket (Q), JCB M6 X 1 3/8”...
  • Page 8 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL Lay the full slat kit ( 2) onto the bed. STEP FOR SLAT KIT ASSEMBLY follow assembly instructions included with slat kit. Adult assembly Customer supplied Phillips head screwdriver Insert metal pins (H) into the holes on top of the lower panels. Lift the upper panels onto the lower STEP panels as shown, and fit the metal pins into the holes in the bottom of the upper panel legs.
  • Page 9 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL STEP Insert wooden dowel (C) to the locator holes as shown below. Wooden owel Adult assembly STEP Attach top panels (1 ) 4 (15)(16)(17) drawers (12) as shown below sing allen screw ( ).
  • Page 10 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL STEP Attach drawers back panel (13) as shown below. Using allen screw ( ). D Tighten with Allen wrench (R). Adult assembly Allen crew 1 5/8” Allen wrench FRONT VIEW BACK VIEW STEP Remove drawers and install wood screw (I) to bottom rail as shown below. Tighten with Phillips head screwdriver.
  • Page 11 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL Attach side short guardrail (19) to the staircase bookshelf. U sing allen screw E . STEP Tighten with llen wrench ( ). Adult assembly Allen crew 2 ” Allen wrench Attach hand guardrail (18) to the staircase bookshelf.
  • Page 12 WESTBROOK STAIRCASE BUNKBED TWIN OVER FULL Attach staircase bookshelf to the bunk bed as shown below. Attach L bracket ( ) STEP to upper , lower bunk panel using 5/8”wood screws J to attach L-bracket 4 places at back of bookshelf as shown.
