Installation - Step By Step

How does it works
Step 1: The powerful outside antenna captures
a voice and data signal and transfers it to the
booster.
Step 2: The booster receives the signal,
amplifies it and then rebroadcasts the signal by
the inside antenna.
Step 3: Your mobile devices will get a better
signal, never experiencing dropped calls or slow
data speed.
Supported Carriers
• AT&T 2G/3G/4G (HSPA+ & LTE)
• Verizon 3G/4G
• T-Mobile 2G/3G/4G
• Sprint 3G/4G
• US Cellular 3G/4G
• Metro PCS 3G/4G
• Major Canadian Carriers 2G/3G/4G
• All other carriers using 700MHz, 850MHz ,
1900 MHz and 2100 MHz
Coverage Area
Note: Any cell phone booster has a limit of
amplification power. This depends on the
original output power of the closest cell tower.
Power level
at the outdoor antenna location
Strong (5 bars on the cellphone)
Medium (3~4 bars on the cellphone)
Weak (1~2 bars on the cellphone)
Conduct a Test Installation
Conduct a test instillation to ensure correct
product functioning before permanently
installing the booster.
The test instillation will help to determine the
best location for the inner and outer antenna
and additionally the routing cable

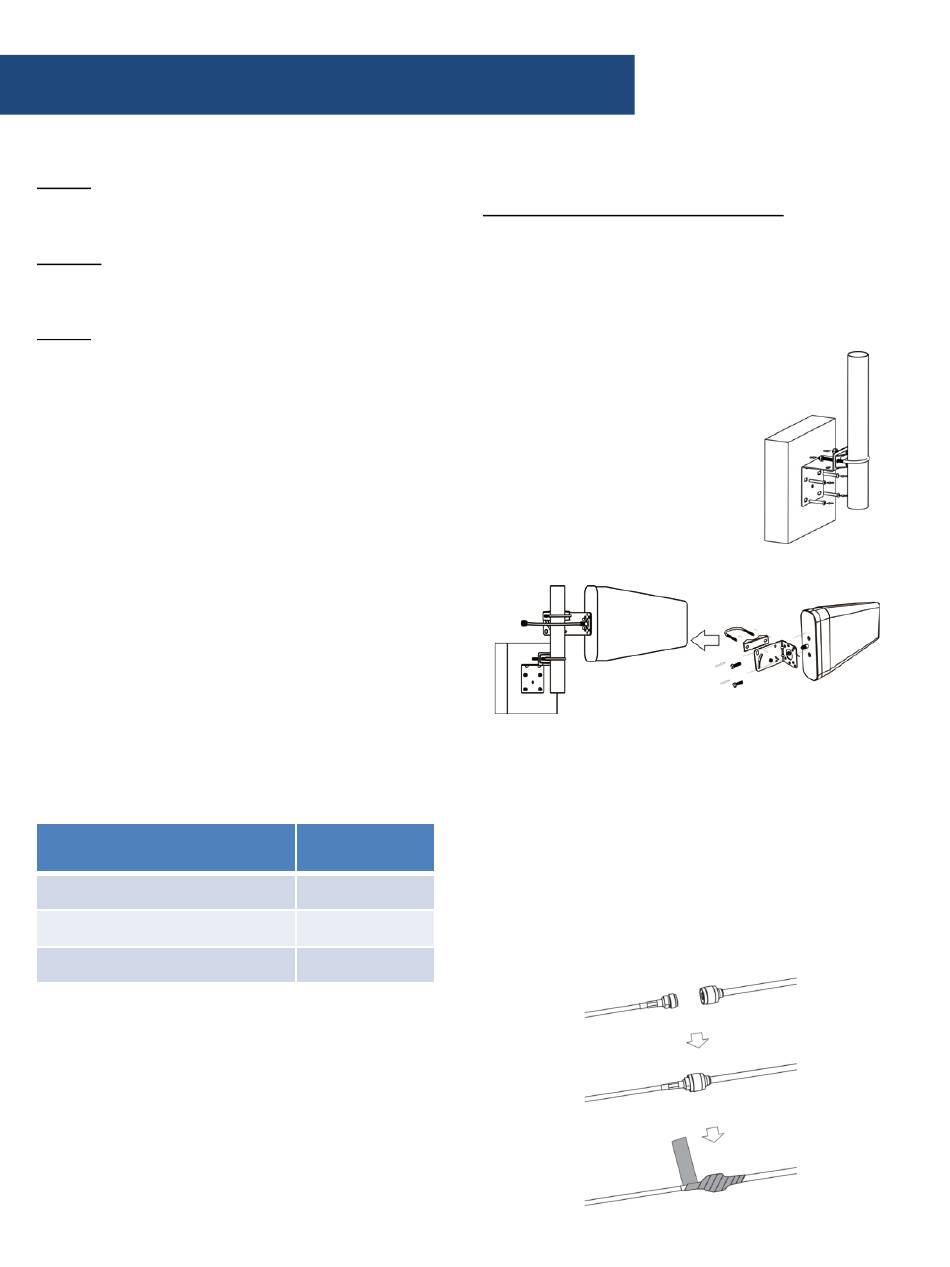

STEP BY STEP INSTALLATION
Step 1: Mount the outside antenna
a. Choose right position
• Find the strongest signal position in the
• 30 cm away from any other metallic objects
• 100 cm away from any windows
b. Mount the antenna pole
c. Mount the antenna to the pole
Caution: The inside and outside antennas can
NOT directly face each other. This will result in
possible self oscillation. (see self oscillation
section)
Coverage Area
(sq. ft.)
d. Connect the outside cable to the outside
12000
• Make sure connectors are well screwed in
5000
• Seal the connectors with glued tape
1200
possible install locations by reading your cell
phone signal bar (see Find Strongest Signal)
antenna
