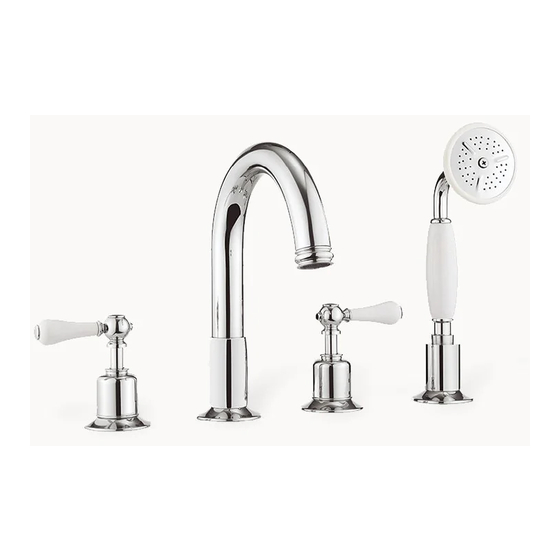

Belgravia Deck-mount Tub Faucet
with Handshower
US-BL440
Installation Instructions

Introduction

The faucets in this range are single flow (hot and cold water mix in the
body) and should therefore be supplied with hot and cold water at
balanced pressures. If the faucets are not supplied at balanced
pressures then the mixer will not function correctly.
The minimum water pressure required for these faucets is 1.45 psi. The
maximum water pressure is 72.5 psi, (beyond which pressure reducing
valves must be installed).
The faucets are fitted with quarter-turn ceramic disc cartridges which
provide a good flow rate with very smooth movement.
IMPORTANT: Before beginning installation, check for any damage
that may have occurred during transport.
Note: Damage claims cannot be made during or after installation.
Please read these instructions carefully before beginning and
retain for future reference. These instructions have been
prepared for your guidance, you must exercise due care at all
times. We do not accept responsibility for any problems that may
occur through incorrect installation.

Installation notes

The installation must comply with all plumbing codes including local
codes and be installed by a licensed plumbing contractor.
Anti-scald protection is the responsibility of the installer and
according to applicable codes.
IMPORTANT! Before installing a new faucet it is essential that the
supply pipes are thoroughly flushed in order to remove any remaining
debris, solder or other impurities. Failure to carry out this simple
procedure can cause problems or damage to the working of the
faucet.
Installing shut-off valves on incoming supply lines is recommended
for ease of maintenance.
Turn off the main water supply before connecting to any existing
pipework or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in wall or floor.

Tools required

Channel
locks
Plumbers' putty Adjustable
or caulking wrench

Dimensions

6-1/2"
6-1/2"
Flat head
screwdriver
3"
2-3/8"
2-3/8"
1-1/4"
2 3 / " dia
8
3"
2-3/8"
2-3/8
1-1/4"
2 3 / " dia
8
Cross head Hexagonal
screwdriver key
