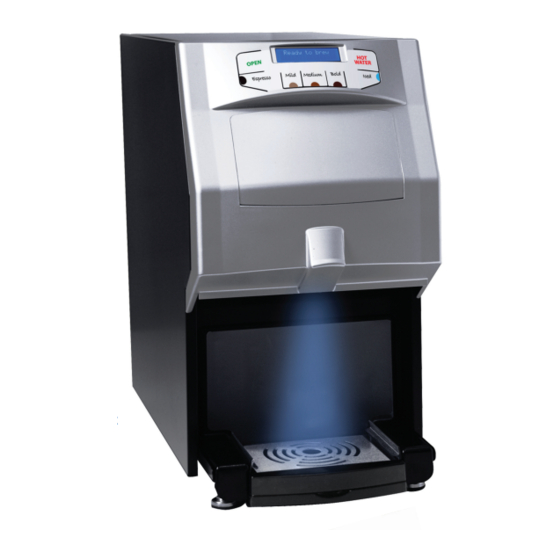

Newco FKP-3 Manual

Single serving automatic pod machine

Hide thumbs

Table Of Contents

PN780607 REV 20017-01-30

SINGLE SERVING AUTOMATIC POD MACHINE

FKP-3

NEWCO ENTERPRISES INC,

3650 NEW TOWN BLVD

SAINT CHARLES, MO 63301

1-800-325-7867

FAX 1-636-925-0029

Features/ Specifications

•

AUTOMATIC POD REMOVAL

•

FLOWMETER

•

20 OZ TRAVEL MUG

•

LARGE POD WASTE TRAY / THRU COUNTER OPTION

•

ADJUSTABLE DRINK STRENGTH

•

ADJUSTABLE DRINK VOLUME

Table of Contents

Need help?

Do you have a question about the FKP-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newco FKP-3

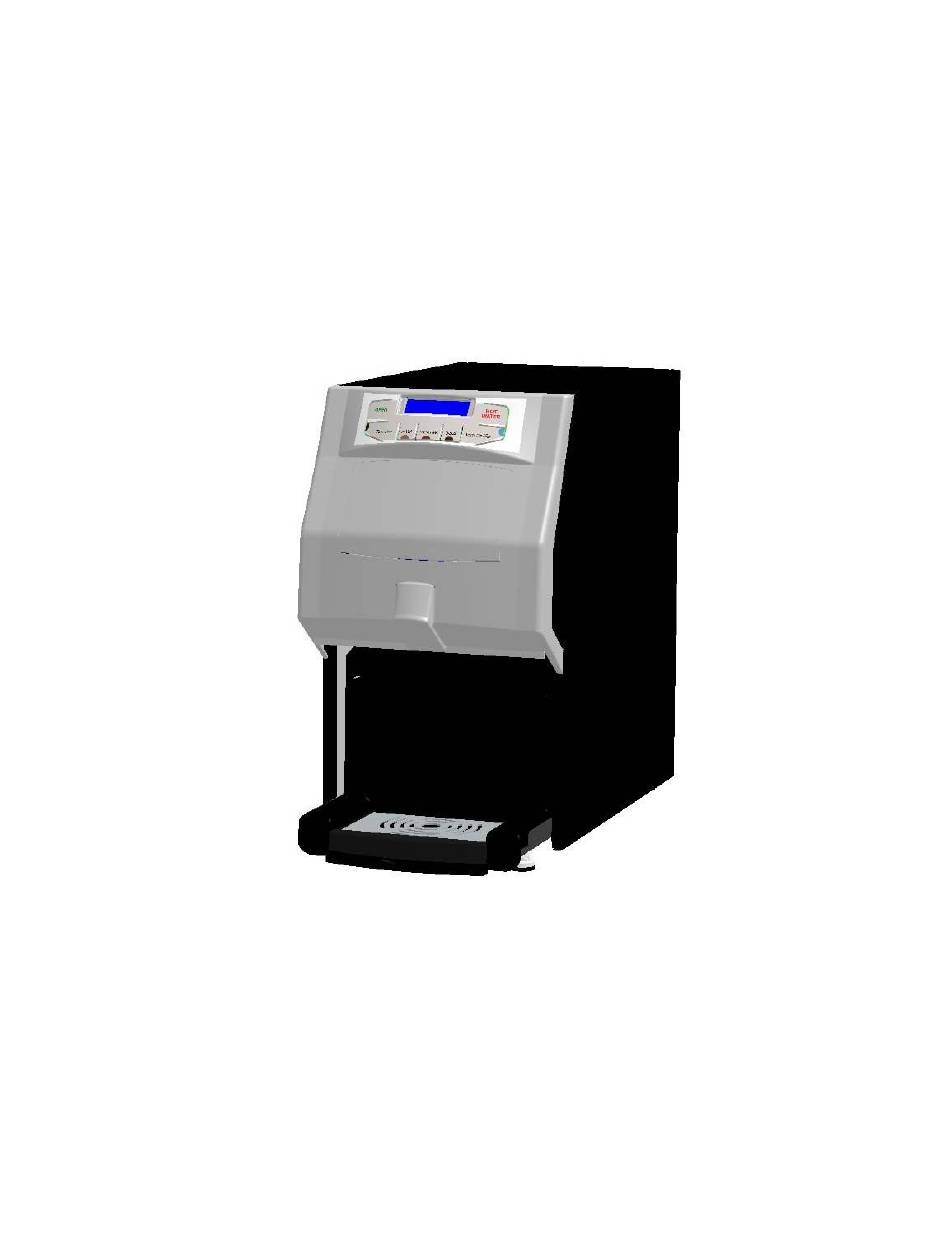

Page 1 PN780607 REV 20017-01-30 SINGLE SERVING AUTOMATIC POD MACHINE FKP-3 NEWCO ENTERPRISES INC, 3650 NEW TOWN BLVD SAINT CHARLES, MO 63301 1-800-325-7867 FAX 1-636-925-0029 Features/ Specifications • AUTOMATIC POD REMOVAL • FLOWMETER • 20 OZ TRAVEL MUG • LARGE POD WASTE TRAY / THRU COUNTER OPTION •...
Page 2 LEFT BLANK INTENTIONALLY...
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS................... 4 NEWCO PRODUCT WARRANTY ..............5 MACHINE SET-UP..................6 MACHINE OPERATION.................. 7 MACHINE PROGRAMMING................7 DRAINING THE HOT WATER TANK ............11 SERVICING THE MACHINE ................. 11 REMOVING THE BREW MECHANISM............11 SIDE PANEL REMOVAL ................12 TANK REMOVAL &...
Page 4: Specifications
SPECIFICATIONS TANK WATTAGES US 1700W 120V- CANADA 1400W 120V- INTERNATIONAL 1700W 220V TANK CAPACITY-1 US GALLON DRIP TRAY CAPACITY 8 OUNCES POD WASTE TRAY CAPACITY 40 PODS USE WASTE TRAY PN 780306 FOR THRU-COUNTER USE UP TO 20 OZ CUP SIZE SHIPPING WT-APPROX 35 LBS...
Page 5 OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute...
Page 6: Machine Set-Up
MACHINE SET-UP NOTE: The FRESH CUP machine weighs approximately 35 LBS. Use CAUTION when unpacking LIFT MACHINE FROM MACHINE BOTTOM ONLY. DO NOT MOVE and lifting machine. MACHINE UNLESS THE HOT WATER TANK IS DRAINED AND EMPTY. Open and install the drip tray grill and place drip tray into pod tray 2.
Page 7: Machine Operation
MACHINE OPERATION PUSH & HOLD FOR HOT DRAWER OPEN WATER DISPENSE WHEN BUTTON BREWER MESSAGE DISPLAY DRAWER IS CLOSED PUSH TO RETURN BREW MECHANISM TO HOME POSITION PROGRAMMABLE WHEN DRAWER BREW BUTTONS IS OPEN (CUP STRENGTH OR CUP SIZE, TEA, •...
Page 8: Machine Programming
MACHINE PROGRAMMING THESE MACHINES ARE EQUIPPED WITH A FLOWMETER- Please run your Fresh Cup pod brewer a few times. If the volume dispensed is comparable to the amount expected from your Button Settings (which are set in the programming menu as described BELOW) and consistent and the pulsing is acting as expected you are done.
Page 9 MACHINE PROGRAMMING CONT’D Set Temperature : In this entry the user may set the tank temperature in the range of 170 to 205 degrees Fahrenheit with the default at 200 degrees F. Pressing button D (see Fig 1) will toggle the display so the user may view the real tank temperature. The real temperature display has all three decimal points illuminated.
Page 10 MACHINE PROGRAMMING CONT’D Flowmeter Adjustment This entry displays the value used to represent the amount of liquid for one tick of the flow meter count. Each tick adjusts the value approximately 2/10 an ounce. While in this entry, pressing the A key will decrement and the B key will increment this value.
Page 11: Draining The Hot Water Tank
DRAINING THE HOT WATER TANK THE DRAIN TUBE IS CLIPPED TO THE TANK PLATE IN FRONT OF THE TANK. THE HOT WATER TANK CAN BE DRAINED FROM THE FRONT OF THE MACHINE – UNPLUG MACHINE FROM POWER SOURCE. REMOVE POD WASTE TRAY. CAUTION-UNLESS THE TANK IS LEFT TO COOL THE WATER IS EXTREMELY HOT AND CAN CUASE HARMFUL BURNS.
Page 12: Side Panel Removal
SIDE PANEL REMOVAL 3. SLIDE PANEL 1. LOOSEN (2) TO THE SCREWS THEN REAR OF REMOVE COVER PANEL MACHINE 2. REMOVE (2) SCREWS FROM REAR OF SIDE PANEL 5. SLIDE PANEL DOWN 4. LIFT PANEL UP AND RELEASE TOP FLANGE 6.
Page 13: Tank Removal & Access Areas
TANK REMOVAL & ACCESS AREAS REMOVE (3) 8-32 NUTS TO PREPARE TANK FOR REMOVAL (TWO ON TOP OF TANK & ONE ON BOTTOM OF PUMP BRACKET LOOSEN SCREWS TO REMOVE TOP & BACK COVERS REMOVE (2) 6-32 SCREWS LOOSEN BUT DO NOT TO REMOVE SIDE PANEL REMOVE THESE 2 FOR PUMP ACCESS...
Page 14: Pod Brewing Mechanism
POD BREWING MECHANISM 780622-61MM ITEM # PART NUMBER DESCRIPTION QTY/EA 780230 BREW MECH MOTOR 780231 DELTROL SOLENOID 780553 LOWER BREW CHAMBER 773246 U-CUP SEAL RING 780257 UPPER BREW CHAMBER 61MM 780554 EJECT SLOPE CAM ASS’Y 780528 MOLDED BUMP DISC PAD ¼”...
Page 15: Tank Ass'y
TANK ASS’Y 780609 ITEM # PART NUMBER DESCRIPTION QTY/EA 110958 RELAY, 12 VDC SPST 30A 111593 HI-LIMIT THERMOSTAT GEAR PUMP ASS’Y 109937 PUMP ASS’Y W/ELBOW (HOT WATER) 781772 780253 TANK ONLY 773056 AIR PUMP, POD 500396 LIQUID LEVEL PROBE& BUSHING 151677 DUAL TEMP THERM PROBE 100149...
Page 16: Electrical Components
ELECTRICAL COMPONENTS ITEM # NEWCO PN DESCRIPTION QTY/EA 780608 CONTROL BOARD & BRACKET 110626 SWITCH, DPST, ON/OFF 102383 SOLENOID FILL VALVE 105115 TRANSFORMER 120VAC-24VAC 780601 DISPLAY BOARD...
Page 17 ERROR MESSAGES Message - "THERMISTOR ERROR" THERMISTOR IS OPEN OR SHORTED-REPLACE PN 151677 Message - "HIGH TEMP ERROR" RAPID TEMPERATURE RISE-HEATER ON WITH LOW WATER LEVEL-CHECK FILL VALVE OR WATER SUPPLY LINE Message - "UPPER/LOWER MOTOR ERROR" BREW CHAMBER DRIVE MOTOR ERROR-CHECK FOR JAM OR OBSTRUCTION IN BREW CHAMBER Message - "BOARD ERROR"...
Page 18: Wiring Diagram
WIRING DIAGRAM...
