INSTALLATION and OPERATION MANUAL for GX SERIES BREWERS
GXF3-15
No of
Model
Warmers
GXF1-15
1
GXF1-30
1
GXF2-15
2
GXF2-30
2
GXF3-15
3
GXF3-30
3
GXF-P
N/A
GXF-T
N/A
GXF-TD
N/A
GXF-8D
N/A
* Height does not include the 4" adjustable legs. Add approximately 4" to the height shown when using these legs.
NOTE: Automatic models without faucet and non plumbed in units are also available.
N E W C O
BREWER SPECIFICATIONS
Width
Length
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
9-1/2"
19"
Shipping weight is approximately 50 pounds for all above units
E N T E R P R I S E S
US
Height*
120V
Amps
20-3/4
12.7
26-3/8
12.7
22-3/8
13.5
28
13.5
22-3/8
14.4
28
14.4
25-1/8
11.7
32-9/16
11.7
27-11/16
11.7
30-3/16
11.7
2Man Pt No 701528
GXF-8D
US
Canada
120/240V
120V
Amps
Amps
24.1
10.8
24.1
10.8
24.9
11.6
24.9
11.6
25.8
12.5
25.8
12.5
23.3
9.8
23.3
9.8
23.3
9.8
23.3
9.8
REV 10-01
Canada
120/240V
Amps
20.3
20.3
21.1
21.1
22
22
19.5
19.5
19.5
19.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXF-8D and is the answer not in the manual?

Questions and answers

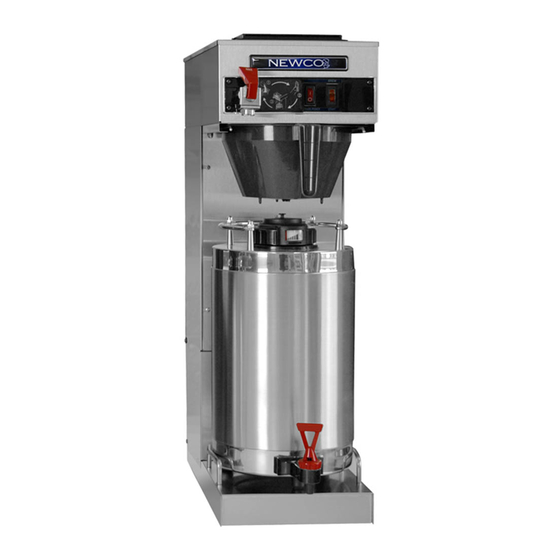

Summary of Contents for Newco GXF-8D

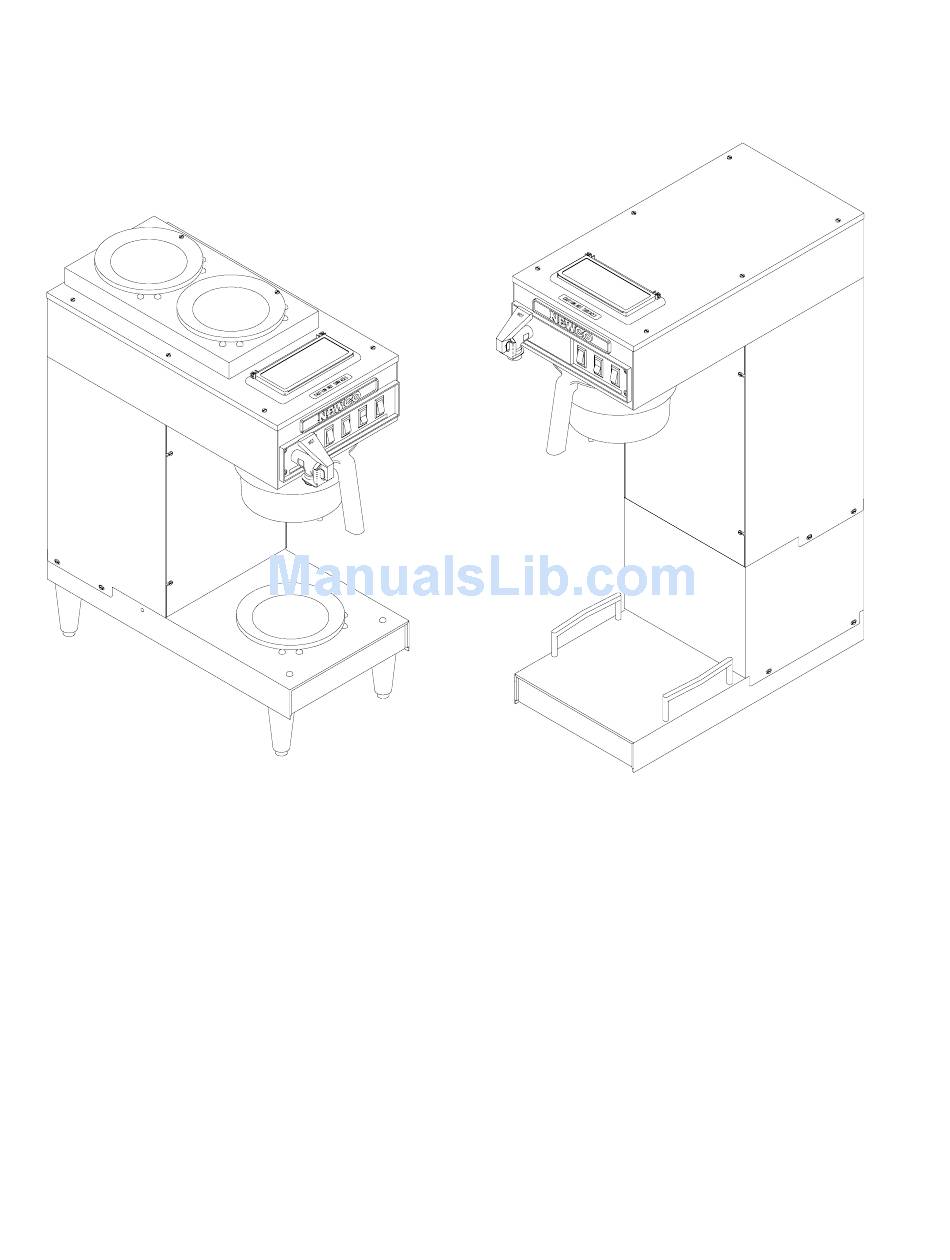

  • Page 1 GXF-P GXF-T GXF-TD GXF-8D * Height does not include the 4” adjustable legs. Add approximately 4” to the height shown when using these legs. NOTE: Automatic models without faucet and non plumbed in units are also available. E N T E R P R I S E S...
  • Page 2: Electrical Hook-Up

    PLUMBER'S INSTALLATION INSTRUCTIONS (AUTOMATIC BREWERS) CAUTION: Power to brewer must be OFF before proceeding with plumbing installation. 1) Attach strainer assembly to back of brewer if desired. Note: Faucet units will have a mini arrestor installed on the back of the brewer to which strainer should be attached. Strainer inlet will point down. 2) Flush water line before installing brewer.
  • Page 3: Installation Instructions

    ELECTRICAL HOOKUP (CONT’D) 5) Make electrical connections as shown below and on the wiring diagram on the back of manual. Tighten strain relief as applicable. 6) If the brewer has been converted from the original voltage as shown on the serial tag it will be necessary to apply the appropriate electrical rating decal (Pg 3, Items 5 and 8) in place on the serial tag to cover the previous rating.
  • Page 4 This system is designed to allow you to adjust brew-steeping time to enhance the recipe of the coffee being brewed. Bypassing is used when brewing large volumes of coffee. NEWCO has three Brew Baskets available. Brewer comes standard with Plastic Color Changing Basket P/N 701714 4) For 120 V units the brewer is shipped with thermostat turned on.
  • Page 5: Coffee Preparation Procedures

    6) After water has reached brewing temperature (thermostat will click off and heating noise will stop.) turn lower warmer/power switch to the ON position. To remove expanded water from tank, run one cycle by pouring one half decanter of water through pour-in screen (pour over models) or by depressing brew start switch (automatic models). After water begins to flow from the brew basket cancel brew cycle by turning the Lower/Power switch to the OFF position.
  • Page 6: Warranty

    No warranty expressed or implied, other than the aforesaid is made or authorized by Newco Enterprises, Inc. Prompt disposition will be made if item proves to be defective, within warranty. Before returning any item, write or call Newco, or the dealer from whom the product was purchased, giving model number, serial number, and date of purchase, and describe the nature of the defect.
  • Page 7: Wiring Diagram

    Pour In Grid and Evaporation Cover Assembly 701147 Gasket, Receiving Pan WIRING DIAGRAM Newco Enterprises, Inc. * 1735 South River Rd. * P.O. Box 852 * St. Charles, MO 63303 701295 Brew Basket, Plastic Newco 701714 Brew Basket, Plastic GX–30 and 8D...
