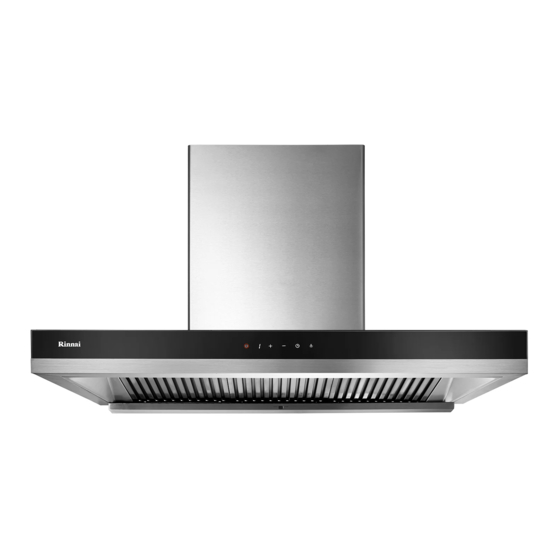

- Page 1 Operation / Installation Manual Chimney Hood RH-C819-GB Rinnai Corporation...
- Page 2 TABLE OF CONTENTS English Page 1 - 7 Version: 2018 08...
-
Page 3: Safety Warnings
IMPORTANT To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance. SAFETY WARNINGS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance. - Page 4 Do not flambé or grill with an open flame directly • under the extractor hood. Flames could be drawn up into the hood by the suction and the grease filters may catch fire. • Monitor cooking continuously as overheated oil increases the risk of self-ignition.
-
Page 5: Specifications
SPECIFICATIONS Model RH-C819-GB Voltage 220V - 240V / 50Hz Power of 220W Motor Power of 1 x 7W Lamp Cable Length 1.5m 898 x 505 x 545~1010mm Appliance Dimension (W x D x H) Note: The manufacturer reserves the right to change any technological improvement or modification without prior notice. -
Page 6: Installation
INSTALLATION This appliance can be installed in ducted or recirculation Wall mounting (Fig. 7 & 8) Do ensure that the appliance is mounted on a solid mode. surface which could withstand the appliance’s weight. Ducted mode (Fig. 4) • Draw a vertical line at the center of the wall. •... - Page 7 Aligning the hood body (if necessary) (Fig. 9) • Before attaching hood body to wall, adjust the 2(two) screws located on the hood body mounting points. • Hook the hood body onto the support screws and tighten the support screws fully. •...
- Page 8 Light : Touch to select on/off 7. Delay Stop Timer: (i) Press Fan Speed 1, then press timer icon. Speed 1 will blink for 5 seconds and follow by timer icon blink. (ii) Press the Delay stop Timer icon to select the require stop timing. [Indication of "1"...
-
Page 9: Maintenance And Care
Light replacement it from the unit.You are advised that the safety cable is not meant to support the grease filter after removal from the Kindly contact Rinnai customer care service for unit. replacement of LED light bar You are strongly recommended to follow these safety instructions. The... -
Page 10: Troubleshoot
Replace the damaged bulbs Bulbs are loose Tighten the bulbs If problem persists after the above checks, please contact Rinnai Customer Care Centre for assistance. Please quote the model number of your appliance as shown on the rating plate attached to your equipment (Fig. 13). - Page 11 URL:www.rinnai.co.id Macau |澳門 ประเทศไทย Thailand | Rinnai Appliance Service Center Rinnai (Thailand) Co., Ltd. / Lucky Flame Co., Ltd. Edificio Industrial, 3 andar F.A da Zona Macau 61/1 Soi Kingkaew 9, Kingkaew Rd. 林內爐具服務中心 Racha Thewa, Bangphli, Samutprakarn 10540, Thailand ร◌...
