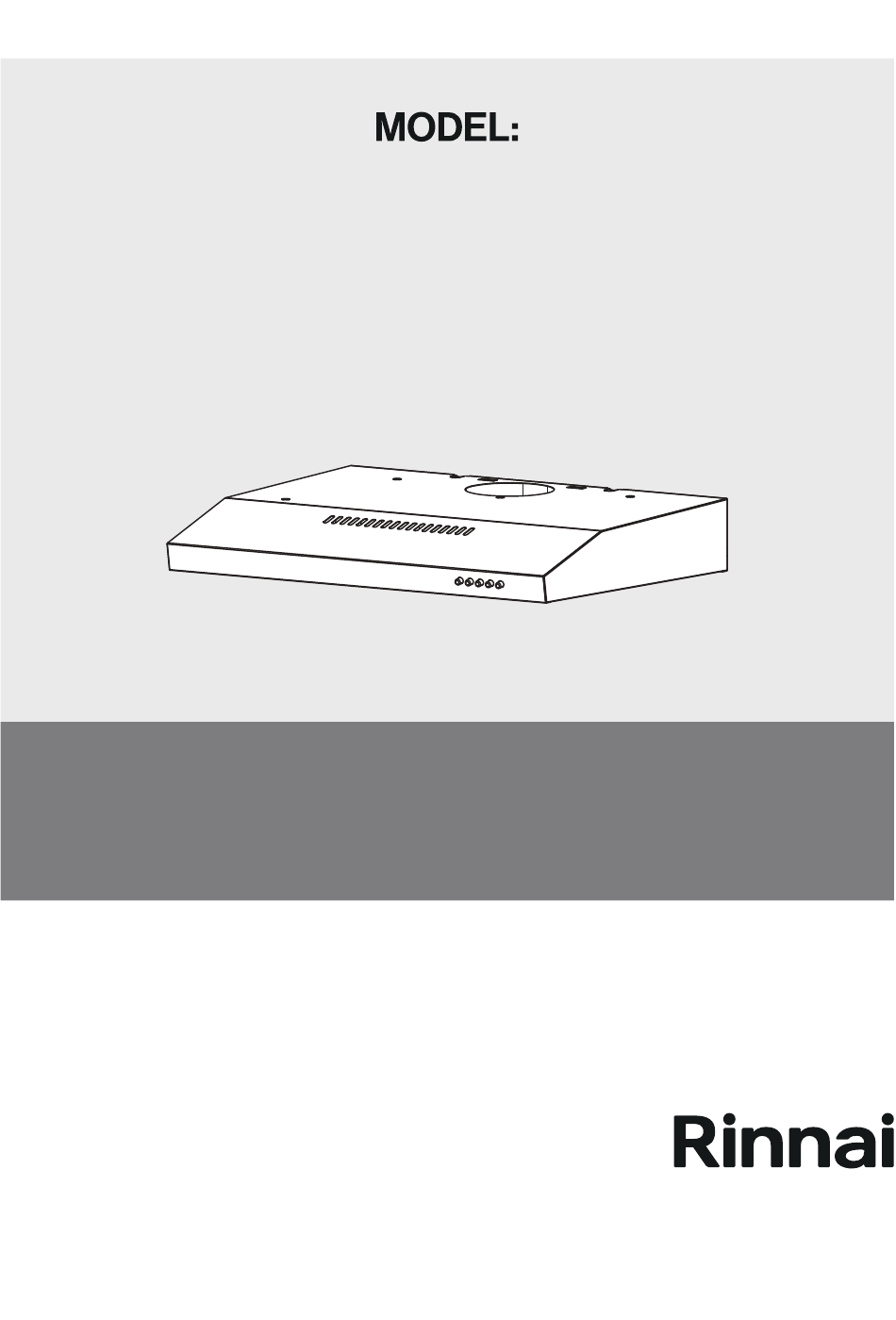

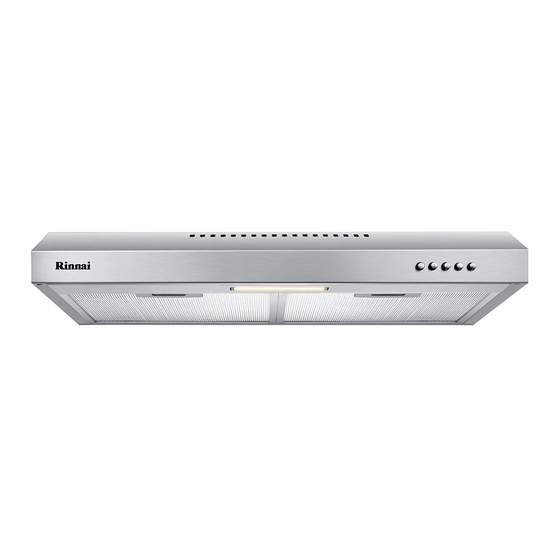

- Page 1 RH-S65A-SSVR RH-S75A-SSVR RH-S95A-SSVR Slim Line Hood Operation / Installation Manual...
-
Page 2: Table Of Contents
Maintenance and care --------------------------------------------------------------------------------------------------------------------- 7 Troubleshoot --------------------------------------------------------------------------------------------------------------------------------- 8 IMPORTANT To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance. Version: 2019.0... -
Page 3: Safety Warnings
SAFETY WARNINGS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance. Keep these instructions for reference and pass them on to future user. Unpacking For the user •... - Page 4 • Do not flambé or grill with an open flame directly under the extractor hood. Flames could be drawn up into the hood by the suction and the grease filters may catch fire. • Monitor cooking continuously as overheated oil increases the risk of self-ignition.
-
Page 5: Appliance Specifications
Product components Non return ap Outlet Connector Outlet Cover Hood Body Charcoal lter Grease Filters For RH-S65A-SSVR & RH-S75A-SSVR For RH-S95A-SSVR Installa on components ST4 x 25 Ø8 x Ø6 wall plug Fig. 3 Documentation Operation / Installa on Manual... -
Page 6: Installation
INSTALLATION This appliance can be installed in ducted or recirculation mode. Ducted mode (Fig. 4) • In ducted mode, the extractor hood fan extracts the cooking vapors and passes them through the grease filter. The air then flows to the outside. •... -
Page 7: Operation
Fitting in to wall cabinet (Fig. 9) • For ducted mode, cut a minimum of Ø1 mm hole on the cabinet base. • Lift the hood into the cabinet from below. • Secure 4 (four) screws ST4 x 25 firmly to cabinet. Fig. -
Page 8: Maintenance And Care
MAINTENANCE AND CARE • Removing and inserting the charcoal filter: Disconnect the power supply cord before carrying out o Remove the grease filters. any cleaning or maintenance activities. It is important o Remove the saturated charcoal filter from the to clean and/or replace the filters at appropriate blower as shown. -
Page 9: Troubleshoot
Lights are not working Light bars are b Replace the damaged light Light bar connection are loose Reset the connection If problem persists after the above checks, please contact Rinnai Customer Care Centre for assistance. RANGE HOOD MODEL : RH-S65A-SSVR... - Page 11 2805 ประเทศไทย 內 บริ ษ ั ท ริ น ไน (ประเทศไทย) จํ า กั ด 電話 เลขที / ซอยกิ งแก้ ว ถนนกิ งแก้ ว ตํ า บลราชาเทวะ 傳真 อํ า เภอบางพลี จั ง หวั ด สมุ ท รปราการ ประเทศไทย ျမန္ မ ာ အမွ...
