Summary of Contents for Rinnai RH-C809-GB

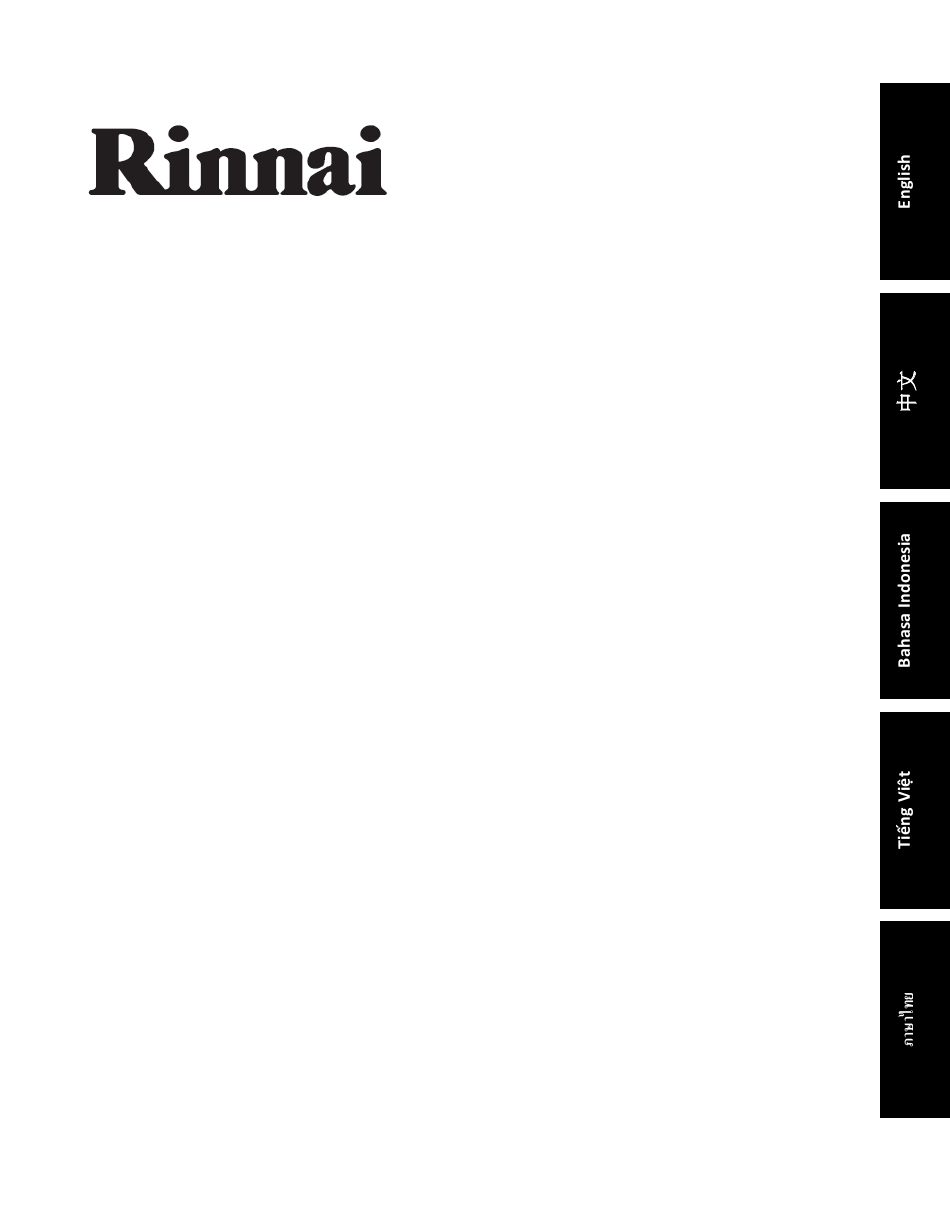

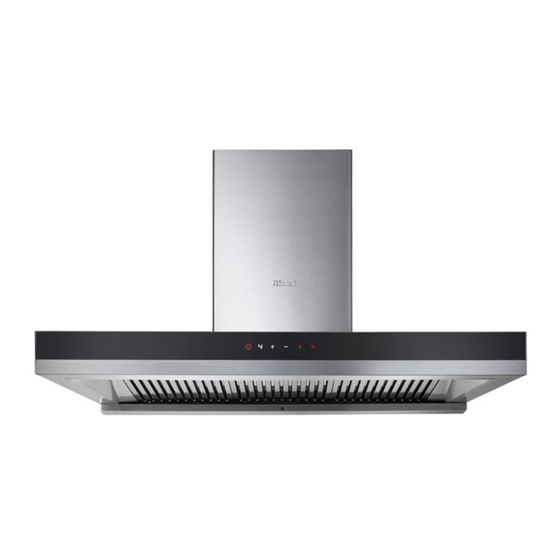

- Page 1 คู ่ ม ื อ การติ ด ตั ้ ง /การใช้ ง าน Chimney Hood 塔形烟机 Tudung Hisap Máy Hút Khói Mùi – Dòng Chimney เครื ่ อ งดู ด ควั น ชนิ ด กระโจมติ ด ผนั ง RH-C809-GB Rinnai Corporation...
- Page 2 TABLE OF CONTENTS English Page 1 - 7 Version: 2015 08...
-
Page 3: Table Of Contents
IMPORTANT To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance. SAFETY WARNINGS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance. - Page 4 Do not flambé or grill with an open flame directly under the extractor hood. Flames could be drawn up into the hood by the suction and the grease filters may catch fire. Monitor cooking continuously as overheated oil increases the risk of self-ignition.
-
Page 5: Specifications & Components
SPECIFICATIONS RH-C809 GC Model Voltage 220V - 240V / 50Hz 400W Power of Motor 1 x 8W Power of Lamp Cable Length 1.5m 898 x 500 x 545-1010mm Appliance Dimension (W x D x H) Note: The manufacturer reserves the right to effect any technological improvement or modification without prior notice. -
Page 6: Installation
INSTALLATION This appliance can be installed in ducted or recirculation Wall mounting (Fig. 7 & 8) Do ensure that the appliance is mounted on a solid mode. surface which could withstand the appliance’s weight. Ducted mode (Fig. 4) Draw a vertical line at the center of the wall. ... -
Page 7: Operation
Aligning the hood body (if necessary) (Fig. 9) Before attaching hood body to wall, adjust the 2(two) screws located on the hood body mounting points. Hook the hood body onto the support screws and tighten the support screws fully. ... -
Page 8: Maintenance And Care
Avoid using corrosive or abrasive products that could • damage the surface. Light replacement Fig.10.2 Kindly contact Rinnai customer care service for replacement of LED light bar. You are strongly recommended to follow these safety Fig.12 instructions. The manufacturer will not be held liable for... -
Page 9: Troubleshoot
Replace the damaged lamps Lamps are loose Tighten the lamps If problem persists after the above checks, please contact Rinnai Customer Care Centre for assistance. Please quote the model number of your appliance as shown on the rating plate attached to your equipment (Fig. 13). - Page 10 URL : www.rinnai.sg Macau |澳門 ประเทศไทย Thailand | Rinnai Appliance Service Center Rinnai (Thailand) Co., Ltd. / Lucky Flame Co., Ltd. Edificio Industrial, 3 andar F.A da Zona Macau 61/1 Soi Kingkaew 9, Kingkaew Rd. 林內爐具服務中心 Racha Thewa, Bangphli, Samutprakarn 10540, Thailand 澳門青洲跨境工業大廈3樓F座...
