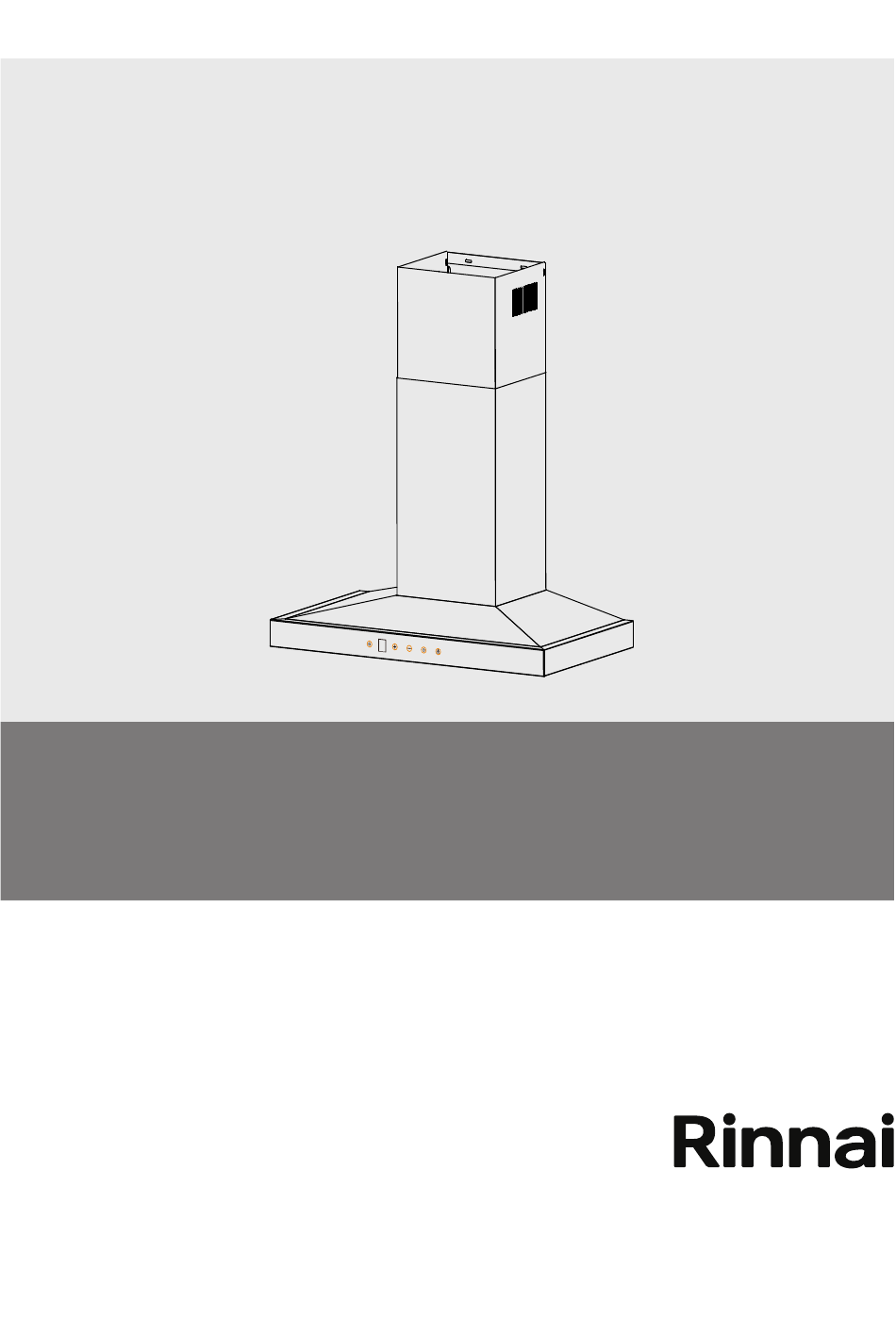

- Page 1 MODEL: RH - C2859 - SSW Pyramid Hood Operation / Installation Manual...
-
Page 2: Table Of Contents
CONTENTS …………………………………………………………………………..…………………………………..…………..…… 1 Safety Warnings …………………………………………………………………………..…………………………………..…………..…… 3 Specifications …………………………………………………………………………..…………………………………..…………..…… 3 Components …………………………………………………………………………..…………………………………..…………..…… 4 Installation …………………………………………………………………………..…………………………………..…………..…… 6 Operation …………………………………………………………………………..…………………………………..…………..…… 7 Maintenance and Care …………………………………………………………………………..…………………………………..…………..…… 9 Troubleshooting Version: 2020.10... -
Page 3: Safety Warnings
SAFETY WARNINGS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information concerning your personal safety as well as use and care of the appliance. Unpacking Do not use the appliance if there are obvious signs of transportation damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or qualified technical personnel in order to avoid a hazard. - Page 4 Disposal This appliance and its packaging are environmentally friendly and recyclable. Please help us to care for the environment by disposing the packaging in a proper manner and recycling any old appliances. Before disposing an old appliance, disconnect it from the power supply and remove the power cord to prevent hazards. Note: The manufacturer will not be held liable for any damages resulting from improper installation nor failure to adopt proper safety measures during installation and operational use of the appliance.
-
Page 5: Specifications
SPECIFICATIONS Model : RH C2859 SSW Power Rating : 300W Voltage : 220 240V Power Frequency : 50/60Hz Power of Lamps : 2 x 1.5W Length of the cable : 1.5m Appliance Dimensions : 895 x 500 x 598-1078mm *The manufacturer reserves the right to effect any technological improvement or modification without prior notice. -
Page 6: Installation
INSTALLATION This appliance can be installed in ducted or recirculation mode. Ducted Mode (Fig. 4) In ducted mode, the extractor hood fan extracts the cooking vapours and passes them through the grease filter. The air then flows to the outside. The grease filter absorbs the solid particles in the cooking vapours. - Page 7 ④ ③ Fig. 6 Fig. 8 Fig. 7 ⑥ ⑤ Fig. 10 Fig. 9 ② ① Fig. 12 Fig. 13 Fig. 11...
-
Page 8: Operation
s equipped with 3 speed control. Control the functions of the extractor by pressing the buttons shown below. OPERATION Note: Touch the sensor buttons gently to operate this appliance. To achieve better air extraction, it is advisable to switch on the blower a few minutes before starting to cook and leave it on for approximately 15 minutes after cooking (or at least all cooking smell is completely removed). -
Page 9: Maintenance And Care
MAINTENANCE AND CARE Before carrying out any cleaning or maintenance activities, ensure that the appliance is disconnected from the main power supply. It is important to clean and/or replace the filters at appropriate intervals as grease deposits build up increases the risk of fire. Grease Filter (Fig. - Page 10 MAINTENANCE AND CARE (Fig. 17 & Fig. 17. 1) Replacing the lamp Ensure that the appliance is disconnected from the main power supply. Note: Replace the lamp with another which has the same characteristics as a higher voltage lamp could damage the electrical unit. Remove grease filters and push out the lamp.
-
Page 11: Troubleshooting
Replace the lamps Lamp connection are loose Reset the connection If problem persists after the above checks, please contact Rinnai After Sales Service for assistance. Please quote the model number of your appliance as shown on the rating plate. (Fig. 16 ). - Page 12 2805 ประเทศไทย Rinnai Appliance Service Center Nam Kwong Petroleum & Chemicals Co., Ltd Avenida do Dr. Rodrigo Rodrigues, Nam Kwong Building, 17/F, Macau บริ ษ ั ท ริ น ไน (ประเทศไทย) จํ า กั ด เลขที / ซอยกิ งแก้ ว ถนนกิ งแก้ ว ตํ า บลราชาเทวะ...
