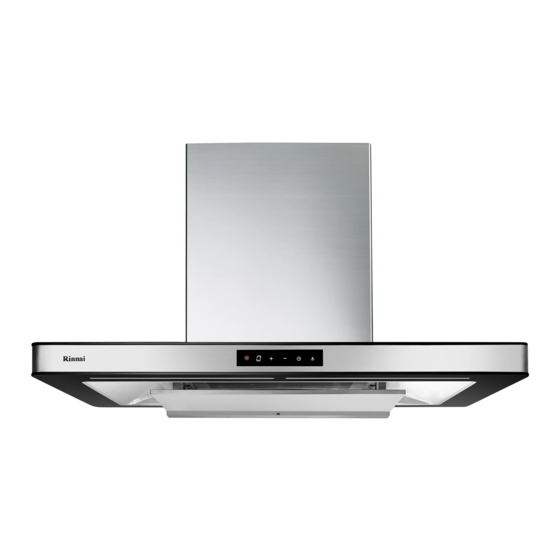

- Page 1 Operation / Installation Manual Chimney Hood RH-C91A-SSVR Rinnai Corporation...
- Page 2 2019 03...
- Page 3 IMPORTANT To register your product warranty, please paste the serial numbers stickers enclosed with the packaging on your warranty card. Please contact your local Rinnai Customer Care Centre should you require further assistance. SAFETY WARNINGS Please read this user manual thoroughly before attempting to use this appliance for the first time. This manual contains important information on safe installation, use and care of the appliance.
- Page 4 Do not flambé or grill with an open flame directly • under the extractor hood. Flames could be drawn up into the hood by the suction and the grease filters may catch fire. • Monitor cooking continuously as overheated oil increases the risk of self-ignition.
- Page 5 SPECIFICATIONS RH-C91A-SSVR Model Voltage 220V - 240V / 50Hz Power of 220W Motor Power of 1 x 7W Lamp Cable Length 1.5m 898 x 500 x 547~1010mm Appliance Dimension (W x D x H) Note: The manufacturer reserves the right to change any technological improvement or modification without prior notice.
- Page 6 INSTALLATION This appliance can be installed in ducted or recirculation Wall mounting (Fig. 7 & 8) Do ensure that the appliance is mounted on a solid mode. surface which could withstand the appliance’s weight. Ducted mode (Fig. 4) • Draw a vertical line at the center of the wall. •...
- Page 8 Light : Touch to select on/off 7. Delay Stop Timer: (i) Press Fan Speed 1, then press timer icon. Speed 1 will blink for 5 seconds and follow by timer icon blink. (ii) Press the Delay stop Timer icon to select the require stop timing. [Indication of "1"...
- Page 9 • Fig. 10 damage the surface. Light replacement • Kindly contact Rinnai customer care service for replacement of LED light bar. Fig. 10.2 You are strongly recommended to follow these safety instructions. The manufacturer will not be • The charcoal filter should be replaced when it is...
- Page 10 Please contact Rinnai Customer Contact Rinnai Service Center Care Service ：RH-C91A-SSVR...
- Page 11 URL:www.rinnai.co.id Macau |澳門 ประเทศไทย Thailand | Rinnai Appliance Service Center Rinnai (Thailand) Co., Ltd. / Lucky Flame Co., Ltd. Edificio Industrial, 3 andar F.A da Zona Macau 61/1 Soi Kingkaew 9, Kingkaew Rd. 林內爐具服務中心 Racha Thewa, Bangphli, Samutprakarn 10540, Thailand ร◌...
