- A fixed IP address can be assigned.
Use the program "SensorFinder" delivered on the CD, to make the above-de-
scribed sensor settings.
LED Displays
7. Transmitting Measurement Results
scanCONTROL 30xx/BL offers the following options for transmitting measurement
results:
- Ethernet interface
ƒ Modbus TCP protocol
ƒ UDP protocol
ƒ Analog output of measurement values (via optional Output Unit)
ƒ Digital output of switching signals (via optional Output Unit)
- RS422 interface
ƒ Modbus RTU protocol
ƒ Measurement value transmission in ASCII format
8. System Requirements
scanCONTROL Configuration Tools
The following minimum system specification is necessary:
- Windows 7 (32 bit and 64 bit), Windows 8 or 8.1 (32 bit and 64 bit), Windows 10
(32 bit and 64 bit)
- 1-GHz or faster (32 bit and 64 bit) processor / 1 GB RAM
- Screen resolution: 1024 x 768
scanCONTROL 3D-View
The following minimum system specification is necessary:
- Windows 7 (64 bit), Windows 8 or 8.1 (64 bit), Windows 10 (64 bit)
- 1-GHz or faster (64 bit) processor
- 1 GB RAM
- Screen resolution: 1024 x 768
- Graphic card/GPU with OpenGL 3.1 or higher

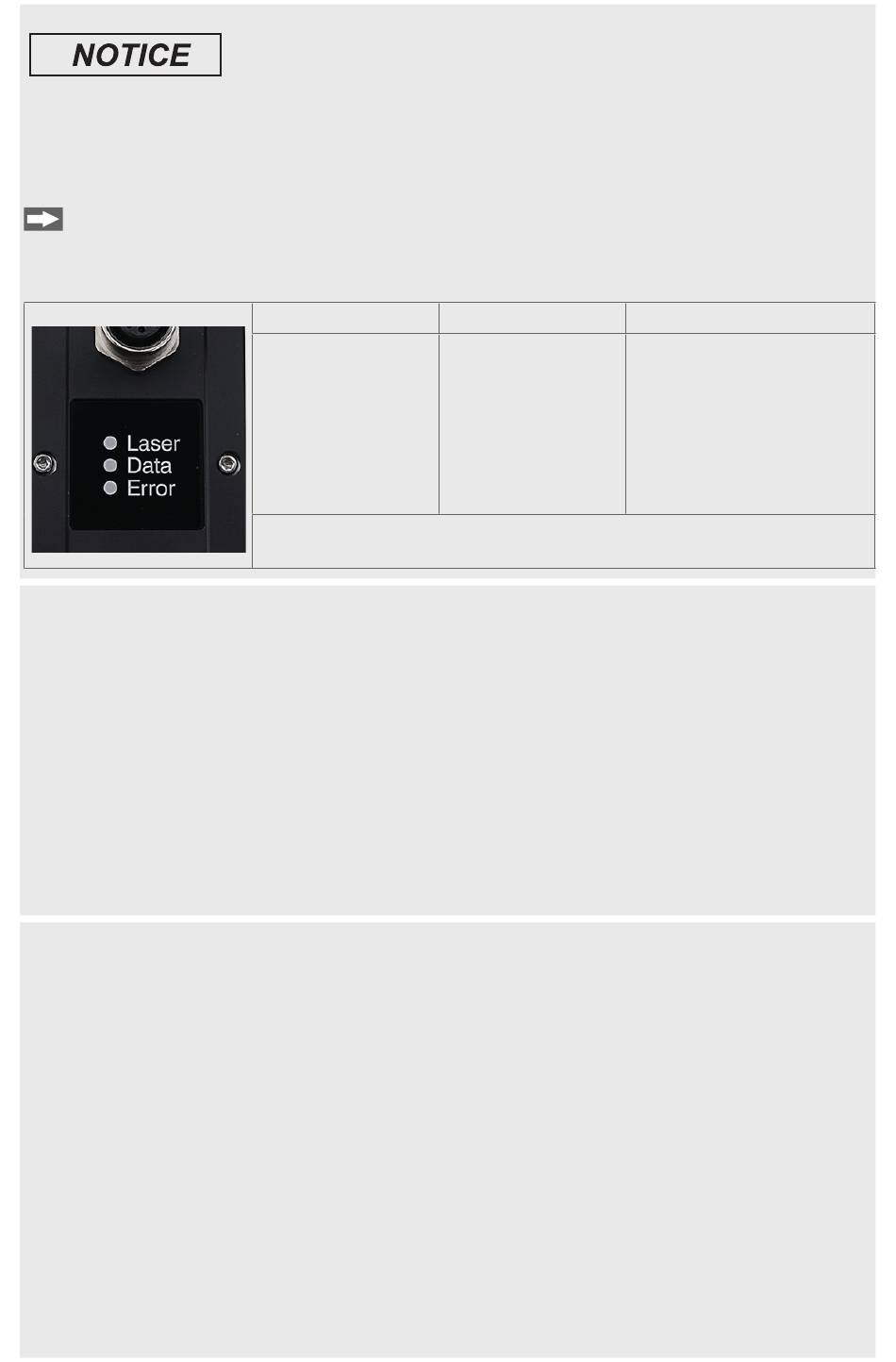

If the sensor is connected to a network adapter/switch that
is capable of POE and if you also use the power supply of
the multifunction port, these two power supplies have to be
galvanically isolated.
> Damage of the sensor and/or the Ethernet card!
Laser
LED
Yellow: Laser on
Data
The LED flashes green, long during active transmission
and short for controller accesses.
Data
LED
Green: Measure-
ment is active
Green, flashes:
Data transmis-
sion is active
Error
LED
Red, flashes: Error
code, see operating
instructions Chap. 11.
