- Page 1 FIJI ISA S.p.A. Via Madonna di Campagna 123 - 06083 Bastia Umbra PG - Italy T. +39 075 801 71 - F. +39 075 800 09 00 - E. customerservice@isaitaly.com www.isaitaly.com 428000377137 FIJI USE AND MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS 11.1 LIGHTING 11.2 WEIGHTS 11.3 OPENING / CLOSING (OPERATOR SIDE) CONTROL PANEL 12.1 USER INTERFACE EW974 CLEANING 13.1 INTERNAL 13.2 CONDENSING UNIT 13.3 DEFROST WATER COLLECTION TRAY (IF PRESENT) PROLONGED APPLIANCE SWITCH-OFF 428000377137 FIJI USE AND MAINTENANCE MANUAL... - Page 3 Live electrical parts technical assistance centre ATTENTION / DANGER Important information Operations that must be performed by two Information persons Eye check Notes/Important Notes DANGER Waste disposal Slipping DANGER Recyclable Material Tripping Earthing 428000377137 FIJI USE AND MAINTENANCE MANUAL...
-
Page 4: Notes / Warnings
NOTES / WARNINGS NOTE The content of this manual is of a technical nature and is owned by ISA. It is forbidden to reproduce, circulate or modify all or part of its content without written consent. Any infringement will be legally pursued. - Page 5 Keep the air vents in the casing of the appliance or in the structure built into the wall free of obstructions. Do not damage the refrigeration circuit. RISK OF EXPLOSION Do not store products containing flammable propellants or explosives. 428000377137 FIJI USE AND MAINTENANCE MANUAL...
- Page 6 INTRODUCTION ISA employs materials of the best quality and as they enter the company, we constantly monitor their storage and the use as part of the manufacturing process to prevent damage, deterioration and failure. All manufacturing elements has been designed and manufactured in order to guarantee reliability and high safety standards.
- Page 7 WARNING Installers and users must read and understand all instructions herein before carrying out any operation on the equipment. 428000377137 FIJI USE AND MAINTENANCE MANUAL...
- Page 8 19 m³ for each cooling system present in the room. ATTENTION Maintenance must be performed by qualified technical personnel with appropriate training and authorisation to work with inflammable refrigerants. 428000377137 FIJI USE AND MAINTENANCE MANUAL...
- Page 9 17 m³ for each cooling system present in the room. ATTENTION Maintenance must be performed by qualified technical personnel with appropriate training and authorisation to work with inflammable refrigerants. 428000377137 FIJI USE AND MAINTENANCE MANUAL...
-
Page 10: Manufacturer
MANUFACTURER ISA S.p.A. www.isaitaly.com Via Madonna di Campagna 123 T. +39 075 801 71 06083 Bastia Umbra PG F. +39 075 800 09 00 Italy E. customerservice@isaitaly.com WARRANTY TERMS AND CONDITIONS The seller's warranty on the equipment is valid for 12 (TWELVE) months from the date of delivery. -
Page 11: Use

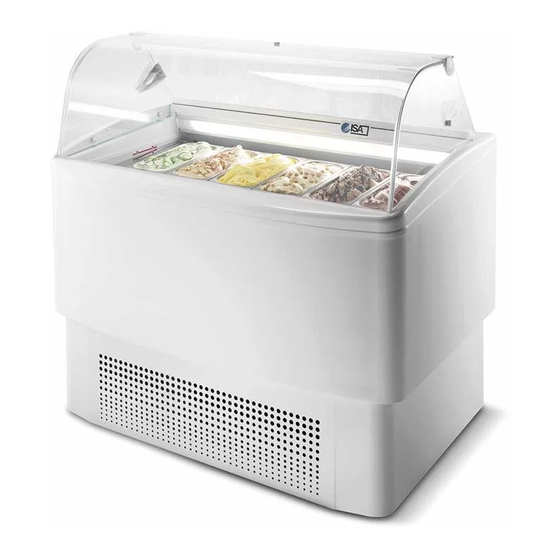

The appliance is composed of: Ventilated refrigeration unit Condenser unit on board Electrical system Electronic command panel Insulated monolithic structure in ecological polyurethane Internal LED lighting Operator side closure with flap Swivel casters with brakes 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 12: Safety
It is strictly forbidden to conduct any electrical modification, in order to prevent additional unforeseen hazards and risks. FIRE DANGER In the event of a fire, immediately disconnect the master switch from the main power supply line. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 13: Explosive Atmosphere
(remove the packaging damaged by exposure and clean using specific products). 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 14: Disposal Of Waste Material
Further information on the disposal of liquid coolant, oils and other substances is available on the safety data sheet corresponding to the substance itself. In order to dispose of foamed assemblies, remember that the polyurethane foams used are CFC, HFC and HCFC free. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 15: Installation
III (3) over-voltage conditions and therefore protects the circuits against earth faults, overloads and short circuits. Do not route the electricity cable in passageways. ATTENTION Earthing is necessary and mandatory by law. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 16: Wall Mounting
It is fundamental to respect the distances indicated (mm) for correct installation of the appliance. POSITIONING / HANDLING ATTENTION SWIVEL CASTERS The appliance has swivel drive wheels with brake to facilitate handling. After positioning it, the appliance must be stabilised on the floor as indicated. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 17: Maintenance
(electronic control unit - thermostat - etc.) REPLACEMENT POWER SUPPLY CABLE, PLUGS AND / OR ELECTRICAL SOCKETS ATTENTION After all maintenance it is mandatory to perform all electrical safety tests in accordance with the IEC EN 50106 Standard. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 18: Faults - Technical After-Sales Assistance
If the control unit is set up especially for must R290 refriger- ant, it must only be replaced with an original replacement from ISA. Replace the temperature probes only after check- ing which of the two is not operating efficiently. -
Page 19: Alarms List (Where Present)
Broken thermostat probe. Compressor output according to“COn” and “COF parameters Broken evaporator probe. Set time for defrosting. High temperature alarm. Low temperature alarm. External alarm. Real time clock is broken. Machine parameter error. Operating parameters error 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 20: Technical Specifications
TECHNICAL SPECIFICATIONS 4-6-7-9-12 120-140 1214 1354 1659 2119 1214 1354 Length External Depth dimensions 1247 Height Weight (net) ARRANGEMENT ICE CREAM CONTAINERS 4.75 litres 5 litres 260x157x170H 360x165x120H Double reserve line 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 21: Lighting
OPENING / CLOSING (OPERATOR SIDE) TILT FLAP ATTENTION Ensure complete / correct closure; incomplete / incorrect closure negatively impacts on performance of the appliance with possible excessive accumulation of ice on the internal walls. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 22: Control Panel
Press the main switch (1), the equipment starts working automatically. ATTENTION The electronic control board is installed already programmed. Any changes to the control board settings can be carried out exclusively by qualified technical personnel. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 23: User Interface Ew974
ON for compressor on. Flashing for delay, protection or blocked activation. DEFROSTING ON for defrosting in progress. Flashing for manual activation. ALARM ON for active alarm. Flashing for silenced alarm. FANS ON for operating fans. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 24: Cleaning
Fit the accessories that were removed (step 3). Turn on the equipment and allow to cool on the bench for at least 2 hours or until it reaches the desired temperature before reintroducing foods. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 25: Condensing Unit
Clean based on use and as needed and in certain environmental conditions (e.g., high humidity, low environmental temperature, presence of dust, etc.) in order to avoid the incorrect and complete evaporation of the water and/or the presence of unpleasant odours. Disinfect the tray with suitable products. 428000377137 FIJI USE AND MAINTENANCE MANUAL... -
Page 26: Prolonged Appliance Switch-Off
The equipment, whether equipped with its packaging or not, must be stored with care in the warehouse or in an area protected from the elements, atmospheric agents and away from direct sunlight, at a temperature between 0 and +40 °C. 428000377137 FIJI USE AND MAINTENANCE MANUAL... - Page 27 ATTACHMENT WIRING DIAGRAM - 412100264000 428000377137 FIJI USE AND MAINTENANCE MANUAL...
- Page 28 ATTACHMENT WIRING DIAGRAM - 412100411000 428000377137 FIJI USE AND MAINTENANCE MANUAL...
- Page 29 ATTACHMENT WIRING DIAGRAM - 412100756000 428000377137 FIJI USE AND MAINTENANCE MANUAL...
