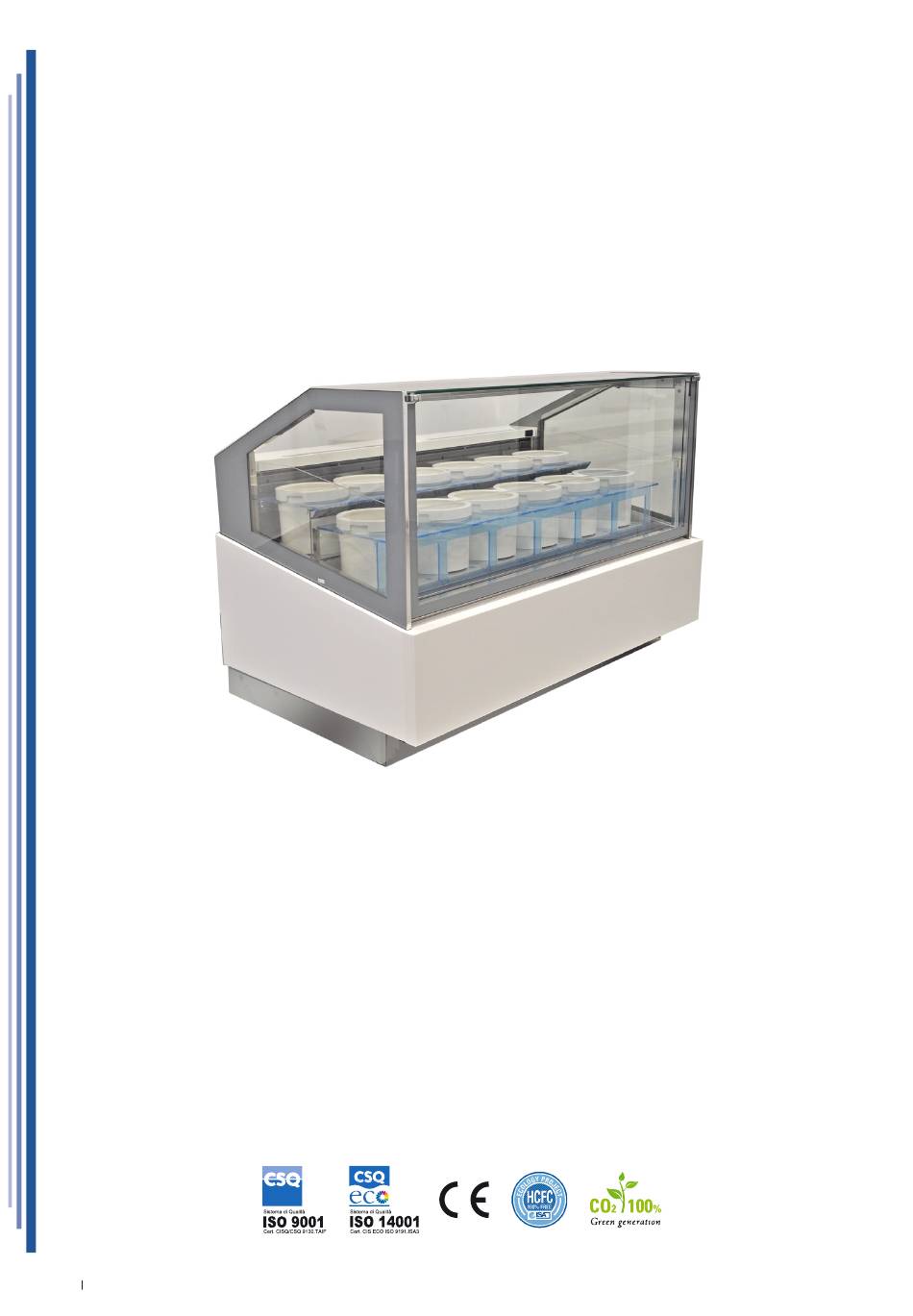

- Page 1 REACH DIPPING MY18 ISA S.p.A. Via Madonna di Campagna 123 - 06083 Bastia Umbra PG - Italy T. +39 075 801 71 - F. +39 075 800 09 00 - E. customerservice@isaitaly.com www.isaitaly.com 428001072037 REACH DIPPING MY18 OPERATION MANUAL...
-
Page 2: Table Of Contents
Is the cabinet located close to door ways, drive thru windows or drafts which could introduce air into the cabinet? Is the overall placement of the cabinet acceptable, not exposed to sources of heat or direct sunlight? Has the updated defrost parameters been confirmed? (ask your service agent) Has the temperature been set to the corrent setting? Has the cabinet reached set point and cycled off? Is the sight glass full? Are all the lights on? Is the condenser air way unobstructed and air filter in place? Is the owners manual with 1 spare light and compressor fuse with the cabinet? 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 3: Installation
INSTALLATION PLINTH ASSEMBLY FRONT Insert the plinth in the lower part Push up Secure the plinth using the dedicated screws REMOVING THE FILM 428001072037 REACH DIPPING MY18 OPERATION MANUAL... - Page 4 INSTALLATION 428001072037 REACH DIPPING MY18 OPERATION MANUAL...
-
Page 5: Control Panel
Ensure there are no multiple socket can be carried out exclusively by qualified earth contact connected. technical personnel. START-UP (ON) The appliance will start working automatically Plug the appliance in at the socket SWITCH OFF 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 6: User Interface
Pressed for 3 sec., they lock and unlock the keyboard. With keyboard lock on, the following operations can be performed: • Change SET POINT • Act on the light • Act on the ON/OFF status To enter the programming mode. To exit the programming mode 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 7: Maintenance
Operations that must be inside. performed by 2 people For glass cleaning and inner surfaces use only water or a Operations that must be neutral product that does not performed by specialised staff contain alcohol or solvents. 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 8: Maintenance Table
(electronic control unit - thermostat - etc.) REPLACEMENT POWER SUPPLY CABLE, PLUGS AND / OR ELECTRICAL SOCKETS ATTENTION After all maintenance it is mandatory to perform all electrical safety tests in accordance with the IEC EN 50106 Standard. 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 9: Cleaning
Remove and turn over the blind to clean the inside Clean the magnetic strip and the metal plates EXTERNAL CLEANING 1-2-3 Dust and clean the surfaces and glass on the outside Clean the glass on the customer side 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 10: Internal Cleaning
Accompany the glass and hold it until it is completely open CLOSING Accompany the glass and hold the handle until it is completely closed 4.3.2 Removal of glass shelves Please use a particular care with glasses 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 11: Ice Cream Tub Use
Remove the bulk from the refrigerator storage Insert the ice cream tub into the basket Install the ring and turn it to lock it 5.1.1 Temperature conditions Wait until the interior has reached room temperature -18°C / -20°C 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 12: Load The Baskets Correctly
Place the baskets in the machine paying attention to the position of the handles, making sure they are all facing the same direction Turn the basket to connect it to the protruding element on the base 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 13: Removing The Ice Cream Tub From The Basket
REMOVING THE ICE CREAM TUB FROM THE BASKET Handle the basket using the two handles Turn the ring to remove it Press from the bottom to remove the ice Remove the ice cream tub cream tub 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 14: Flavour Cards Use
FLAVOUR CARDS USE INSERTING THE FLAVOUR CARDS Prepare and insert the cards in the slot of the flavour card holder INSTALLING THE FLAVOUR CARD HOLDER The flavour card holders must be installed paying attention to the slots 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 15: Cleaning (Internal)
Remove all internal panels Remove all the components shown Remove all internal elements Lift and remove the front panel Lift and remove the panel Remove the side panels Vacuum and clean the internal surfaces 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 16: Cleaning (Internal Evaporator)
CLEANING (Internal evaporator) CLEANING THE EVAPORATOR Remove the bottom trays Vacuum any solid residues Clean the steel surfaces Make sure that the drain is clean and free from obstructions 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 17: Cleaning Dust Filter
CLEANING DUST FILTER Unscrew the filter knob Remove the filter Vacuum dust from the filter Wash the filter thoroughly under running water and then wait for it to dry before putting it back in 428001072037 REACH DIPPING MY18 OPERATION MANUAL... -
Page 18: Cleaning The Condenser
10. CLEANING THE CONDENSER Unscrew the screws of the lower panel Remove the lower panel Clean the condenser using a vacuum cleaner Attention Sharp parts; wear protective gloves 428001072037 REACH DIPPING MY18 OPERATION MANUAL...
