8-Port Gigabit Switch with PoE
and 2 SFP Ports
Model: ES-10XP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeSwitch 10 XP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti EdgeSwitch 10 XP

Summary of Contents for Ubiquiti EdgeSwitch 10 XP

  • Page 1 8-Port Gigabit Switch with PoE and 2 SFP Ports Model: ES-10XP...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch® 10XP. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents EdgeSwitch 10XP Wall Mount Wall Mount Screws (Qty. 2) Anchors (Qty. 2)

  • Page 3: Hardware Overview

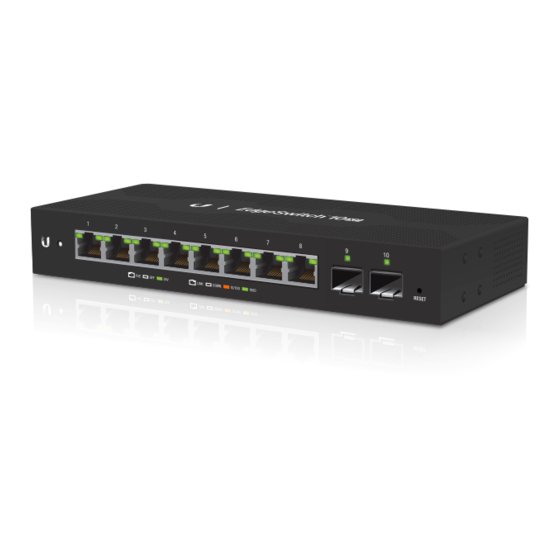

    Hardware Overview Front Panel Ports SFP Ports 9-10 RJ45 Ports 1-8 Interface Description RJ45 1‑8 RJ45 ports support 10/100/1000 Ethernet connections and 24V Passive Power over Ethernet (PoE) output. SFP 9‑10 Hot‑swappable SFP ports support 1 Gbps connections. Front Panel Button Reset Button Description...
  • Page 4 Front Panel LEDs System System LED State Status Flashing White Bootup in Progress Ready for Use White Not Connected to Ubiquiti® Network Management System (UNMS ™ Ready for Use Blue Connected to UNMS Steady Blue Ready for Use with Occasional...
  • Page 5 RJ45 LEDs Speed/Link/Activity State Status No Power over Ethernet Green 24V Power over Ethernet No Link Amber Link Established at 10/100 Mbps Speed/ Amber Link Activity at 10/100 Mbps Link/ Flashing Activity Green Link Established at 1000 Mbps Green Link Activity at 1000 Mbps Flashing SFP LEDs Link/Activity...

  • Page 6: Back Panel

    Back Panel Power Grounding Point Interface Description Power Connect the included Power Adapter to the Power port. Grounding Ground bonding point for an optional Point ground wire. Side Panel Bracket Mounting Holes Ventilation Holes...

  • Page 7: Hardware Installation

    Hardware Installation The EdgeSwitch can be placed on a horizontal surface, mounted on a wall, or mounted in a rack (brackets not included). The optional EdgeRouter Rackmount Kit, model ™ ER‑RMKIT, is sold separately. Follow the Wall Mounting instructions to mount the EdgeSwitch using the included screws and anchors.
  • Page 8 3. Position the EdgeSwitch with the Ethernet ports facing down. Place the wall‑mount slots of the EdgeSwitch over the screw heads on the wall. Then slide the EdgeSwitch down to lock it into place. Grounding the EdgeSwitch (Recommended) The EdgeSwitch is grounded through the Power Adapter; however, you can add optional ESD grounding for enhanced ESD protection.

  • Page 9: Connecting Power

    Connecting Power 1. Connect the Power Adapter to the Power port. 2. Connect the Power Cord to the Power Adapter. 3. Connect the other end of the Power Cord to a power outlet.

  • Page 10: Connecting Ethernet

    Connecting Ethernet 1. Connect an Ethernet cable from your DHCP server or LAN system to any port on the EdgeSwitch. 2. Connect your computer or host system and other devices to the other ports on the EdgeSwitch.
  • Page 11 Using SFP Ports To use an SFP port: 1. Remove the protective plug covering the SFP port. 2. Plug a compatible fiber module into the SFP port. 3. Connect the fiber optic cable to the fiber module. Then connect the other end of the cable to another fiber device. For information about compatible fiber SFP modules, visit: community.ubnt.com/edgemax...

  • Page 12: Accessing The Configuration Interface

    2. The login screen will appear. Enter ubnt in the Username and Password fields. Click Sign In. (When you sign in, you agree to accept the Ubiquiti License Agreement.) The EdgeSwitch Configuration Interface will appear. Customize additional settings as needed. For 24V Passive PoE configuration, refer to the Configuring PoE Settings section.
  • Page 13 4. The login screen will appear. Enter ubnt in the Username and Password fields. Click Sign In. (When you sign in, you agree to accept the Ubiquiti License Agreement.) 5. The EdgeSwitch Configuration Interface will appear. Click the System tab.
  • Page 14 6. Change the IP Address to a unique IP address or keep the default, DHCP. Click Apply. Note: If you change the IP settings, the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address. The EdgeSwitch Configuration Interface will appear.

  • Page 15: Configuring Poe Settings

    Configuring PoE Settings The PoE setting for ports 1-8 is set to Off by default. WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. 1. On the Dashboard tab, click the PoE setting of the Ethernet port you want to configure.

  • Page 16: Specifications

    Specifications ES‑10XP Dimensions 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54") Weight 500 g (1.10 lb) Total Non‑Blocking 10 Gbps Throughput Switching Capacity 20 Gbps Forwarding Rate 14.88 Mpps Max. Power Consumption (Excluding PoE Output) Power Method 24VDC, 2.5A Supported Voltage Range 9 ‑...

  • Page 17: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 18: Limited Warranty

    Limited Warranty www.ubnt.com/support/warranty/ The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 19: Rohs/Weee Compliance Statement

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste.
  • Page 20 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 21: Declaration Of Conformity

    Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.ubnt.com/compliance Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta ES-10XP tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance...

  • Page 22: Online Resources

    2014/35/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.ubnt.com/compliance Latviešu valoda [Latvian] Ar šo, UBIQUITI NETWORKS, deklarē, ka ES-10XP ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās 2014/30/ES, 2014/35/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: www.ubnt.com/compliance Lietuvių...
  • Page 23 New York, NY 10017 ©2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeRouter, EdgeSwitch, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
