Summary of Contents for Ubiquiti EdgeSwitch 16XP

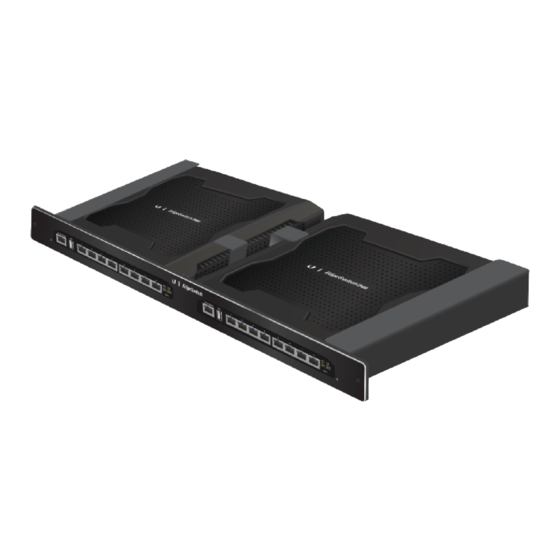

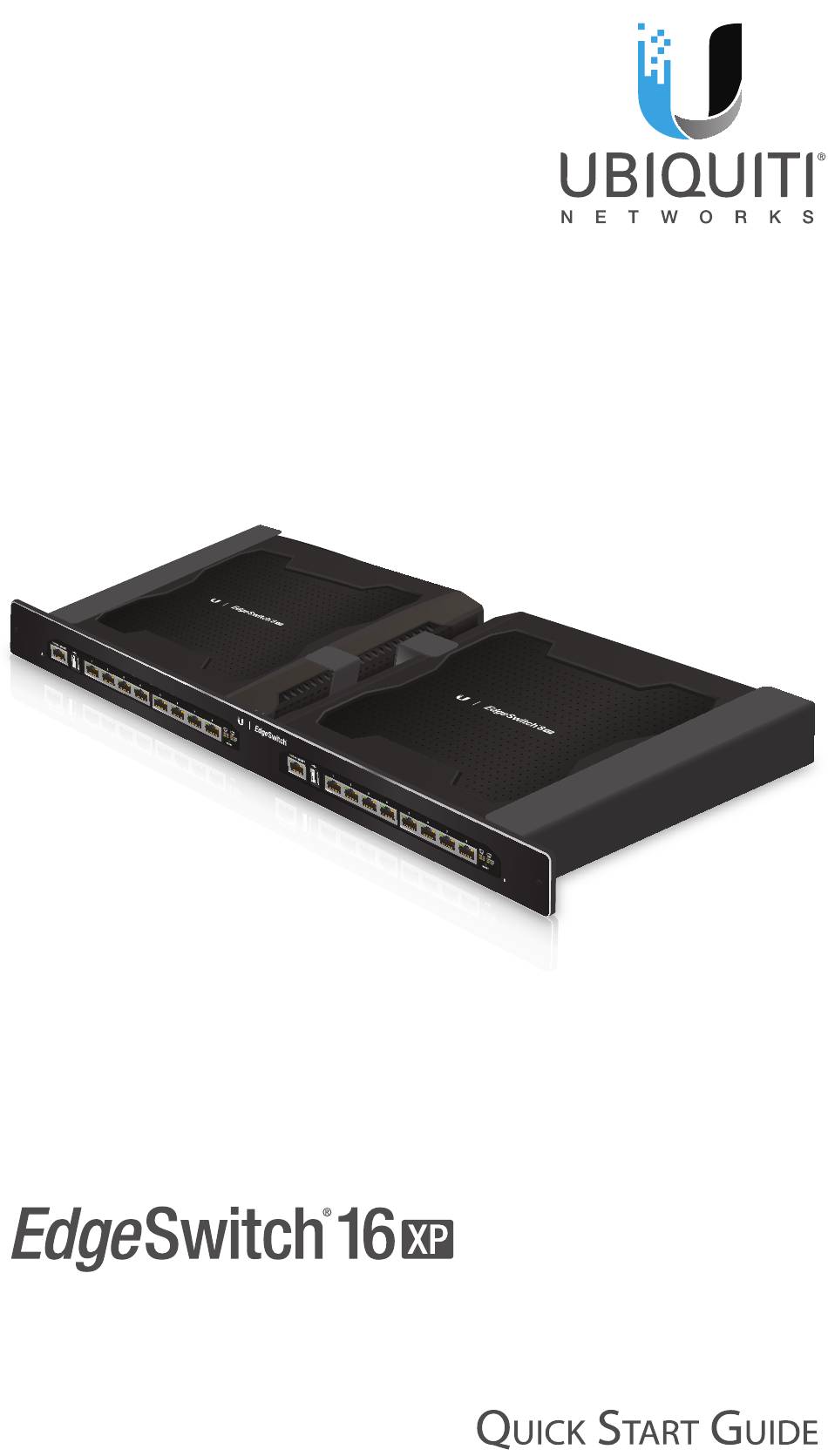

- Page 1 Rack-Mount Power over Ethernet Managed Switches Model: ES-16XP...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch® 16XP. This Quick Start Guide is designed to guide you through installation and includes warranty terms. Package Contents EdgeSwitch 16XP Flathead Screws Phillips Screws Cage Nuts (Qty. 2) (Qty. 4) (Qty. 4) -
Page 3: Hardware Overview
Hardware Overview A and B designate the two 8-Port EdgeSwitch devices housed in the rack. This may be useful for the Location setting on the Device tab in the Configuration Interface. Front Panel Ports Management Ports 1-8 Management Ports 1-8 Reset Reset EdgeSwitch A... - Page 4 Front Panel LEDs Power/Link Speed/Link/Act State Status No Power/No Link After bootup, the LED indicates power. After an initial link is established, the LED indicates a Power/ 10/100 Mbps connection. If the link Link Amber terminates, the LED turns off until a link is re-established.
-
Page 5: Installation Requirements
AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable IMPORTANT: Although the cabling can be located outdoors, the EdgeSwitch itself should be housed inside a protective enclosure. -
Page 6: Hardware Installation
Hardware Installation 1. Remove the faceplate from the EdgeSwitch by lifting up the bottom portion of the faceplate. 2. Connect the Power Cord to the Power port of each EdgeSwitch. - Page 7 3. Attach the EdgeSwitch 16XP to the rack using the four Phillips Screws. (If the rack has square slots, then use the Cage Nuts with the Phillips Screws.) 4. Attach the top portion of the faceplate at a slight angle, and then snap on the bottom portion.
- Page 8 5. Connect the other end of each Power Cord to a power outlet. Daisy-Chain (Optional) All data ports are available as uplink ports. If you want to daisy-chain EdgeSwitch A and B, we recommend that you connect an Ethernet cable from port 8 of EdgeSwitch A to port 1 of EdgeSwitch B.
-
Page 9: Accessing The Configuration Interface
4. The login screen will appear. Enter ubnt in the Username and Password fields. Click Login. The Configuration Interface will appear, allowing you to customize your settings as needed. You can also manage your device using the Ubiquiti® Network Management System. UNMS lets you configure, monitor, ™... -
Page 10: Configuring Poe Settings
Configuring PoE Settings WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. By default, PoE is off on each port. 1. Click the Ports tab. 2. On the Ports tab, select the Ethernet port you want to configure. -
Page 11: Specifications
Specifications ES-16XP Dimensions 480 x 44.5 x 186 mm (18.9 x 1.75 x 7.32") Weight 3.95 kg (8.71 lb) Hardware Configuration (2) 8-Port EdgeSwitch 8XP Devices Mounting 19" 1U Rack-Mount 8-Port ES-8XP* Power Input 110-120VAC / 210-230VAC Max. Power Consumption 150W PoE Out Voltage Range 45-48VDC / 22-24VDC... -
Page 12: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 13: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 14: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 15 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 16: Australia And New Zealand
Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. - Page 17 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 18: Declaration Of Conformity
English Hereby, UBIQUITI NETWORKS, declares that this ES-16XP device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: www.ubnt.com/compliance... -
Page 19: Online Resources
Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta ES-16XP tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance Italiano [Italian] Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo ES-16XP, è... - Page 20 New York, NY 10017 ©2012-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeSwitch, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
