Ubiquiti EdgeSwitch ES-48-500W Quick Start Manual

Managed poe+ gigabit switch with sfp+
Hide thumbs Also See for EdgeSwitch ES-48-500W:
Table of Contents

Advertisement

Quick Links

See also: Administration Manual
Managed PoE+ Gigabit Switch
with SFP+
Models: ES-48-500W, ES-48-750W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeSwitch ES-48-500W and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti EdgeSwitch ES-48-500W

Summary of Contents for Ubiquiti EdgeSwitch ES-48-500W

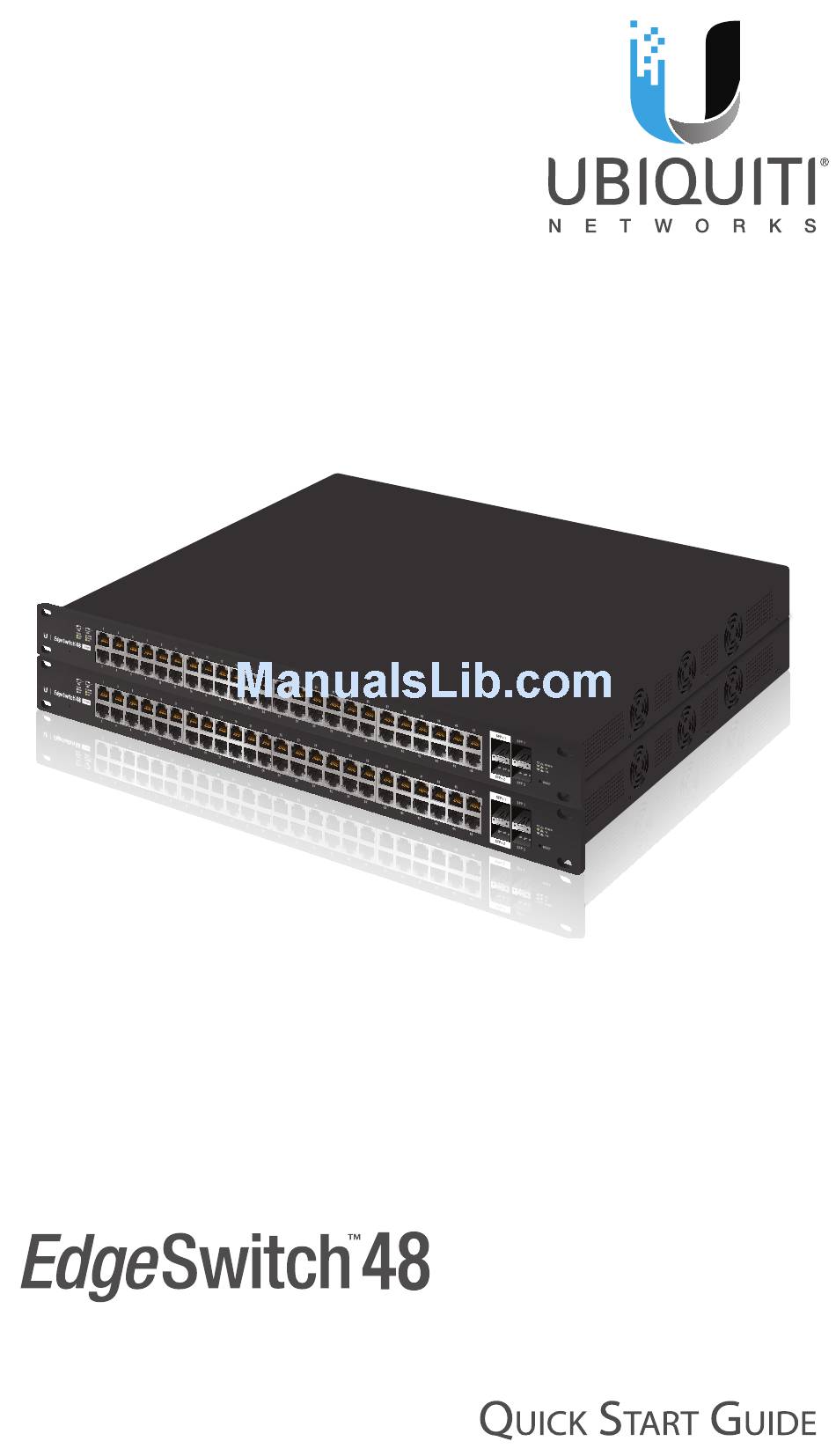

  • Page 1 Managed PoE+ Gigabit Switch with SFP+ Models: ES-48-500W, ES-48-750W...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch ™ This Quick Start Guide is designed to guide you through installation and also includes warranty terms. The hardware description and installation instructions are the same for both models, ES‑24‑250W and ES‑24‑500W.

  • Page 3: Installation Requirements

    We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeSwitch to rain or moisture.
  • Page 4 State Status White Ready for Use Bootup in Progress Blue Flashing Indicates Reset to Factory Defaults No PoE Amber IEEE 802.3af/at Green 24V Passive No Link Speed/ Link Established at 10/100 Mbps Amber Link/ Flashing Indicates Activity Link Established at 1000 Mbps Green Flashing Indicates Activity No Link...

  • Page 5: Front Panel Button

    Front Panel Button Reset Button Description There are two methods to reset the EdgeSwitch to factory defaults: Runtime Reset (Recommended) The EdgeSwitch should be running after bootup is complete, and the System LED is white. Press and hold the Reset button. The EdgeSwitch will reboot, and the System LED becomes blue after three seconds.

  • Page 6: Front Panel Ports

    Front Panel Ports RJ45 1-48 SFP+ 1-2 SFP 1-2 Port Description RJ45 ports support Power over Ethernet (PoE) RJ45 1‑48 and 10/100/1000 Ethernet connections. Hot-swappable SFP+ ports support 1/10 Gbps SFP+ 1‑2 connections. Hot‑swappable SFP ports support 1 Gbps SFP 1‑2 connections.

  • Page 7: Hardware Installation

    Hardware Installation WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. 1. Connect the Power Cord to the Power port of the EdgeSwitch. 2. Attach the EdgeSwitch to the rack using the four Mounting Screws.

  • Page 8: Connecting Ethernet

    3. Connect the other end of the Power Cord to a power outlet. Connecting Ethernet 1. Connect an Ethernet cable from your computer or host system to any port of the EdgeSwitch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the other numbered ports of the EdgeSwitch.
  • Page 9 Using SFP+ and SFP Ports These ports support the specified module types at the following speeds: Ports SFP+ Module Type SFP Module Type SFP+ 1‑2 10 Gbps 1 Gbps SFP 1‑2 (Not supported) 1 Gbps To use an SFP+ or SFP port: 1.

  • Page 10: Accessing The Configuration Interface

    Press enter (PC) or return (Mac). 2. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 11 Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License...
  • Page 12 5. The EdgeSwitch Configuration Interface will appear. Go to System > Connectivity > IPv4. 6. Change the IP Address to a unique IP address or select DHCP on the IPv4 tab. Click Submit. Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address.

  • Page 13: Configuring Poe Settings

    Configuring PoE Settings The PoE settings for ports 1-48 are set to PoE+ auto by default, so 802.3af/at devices can be plugged in and automatically receive PoE. WARNING: Before activating 24V passive PoE, ensure that the connected device supports PoE and the supplied voltage.

  • Page 14: Specifications

    Specifications EdgeSwitch Dimensions 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") Weight ES‑48‑500W 6.1 kg (13.5 lb) ES‑48‑750W 6.5 kg (14.3 lb) Total Non‑Blocking Line Rate 70 Gbps Max. Power Consumption ES‑48‑500W 500W ES‑48‑750W 750W Power Method 100‑240VAC/50‑60 Hz, Universal Input Power Supply ES‑48‑500W...

  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 16: Limited Warranty

    Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 17 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.

  • Page 18: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING...

  • Page 19: Industry Canada

    Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 22: Declaration Of Conformity

    Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/30/ESB, 2014/35/ESB. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è...

  • Page 23: Online Resources

    [Slovak] a ďalšími relevantnými ustanoveniami smernice 2014/30/EÚ, 2014/35/EÚ. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de las Directivas 2014/30/UE, 2014/35/UE.
  • Page 24 . u b n t . c o m ©2014‑2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeSwitch, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
