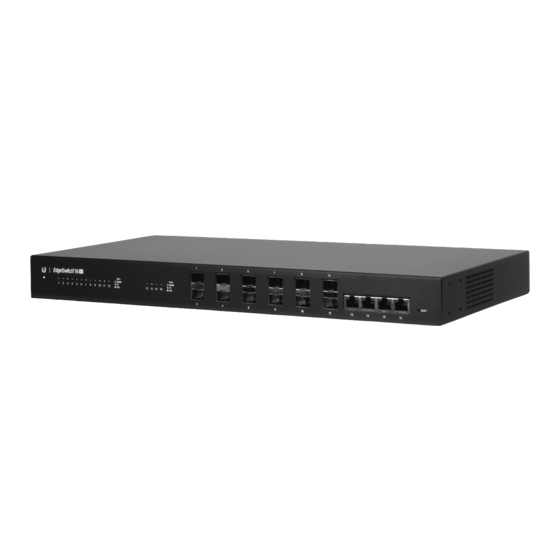

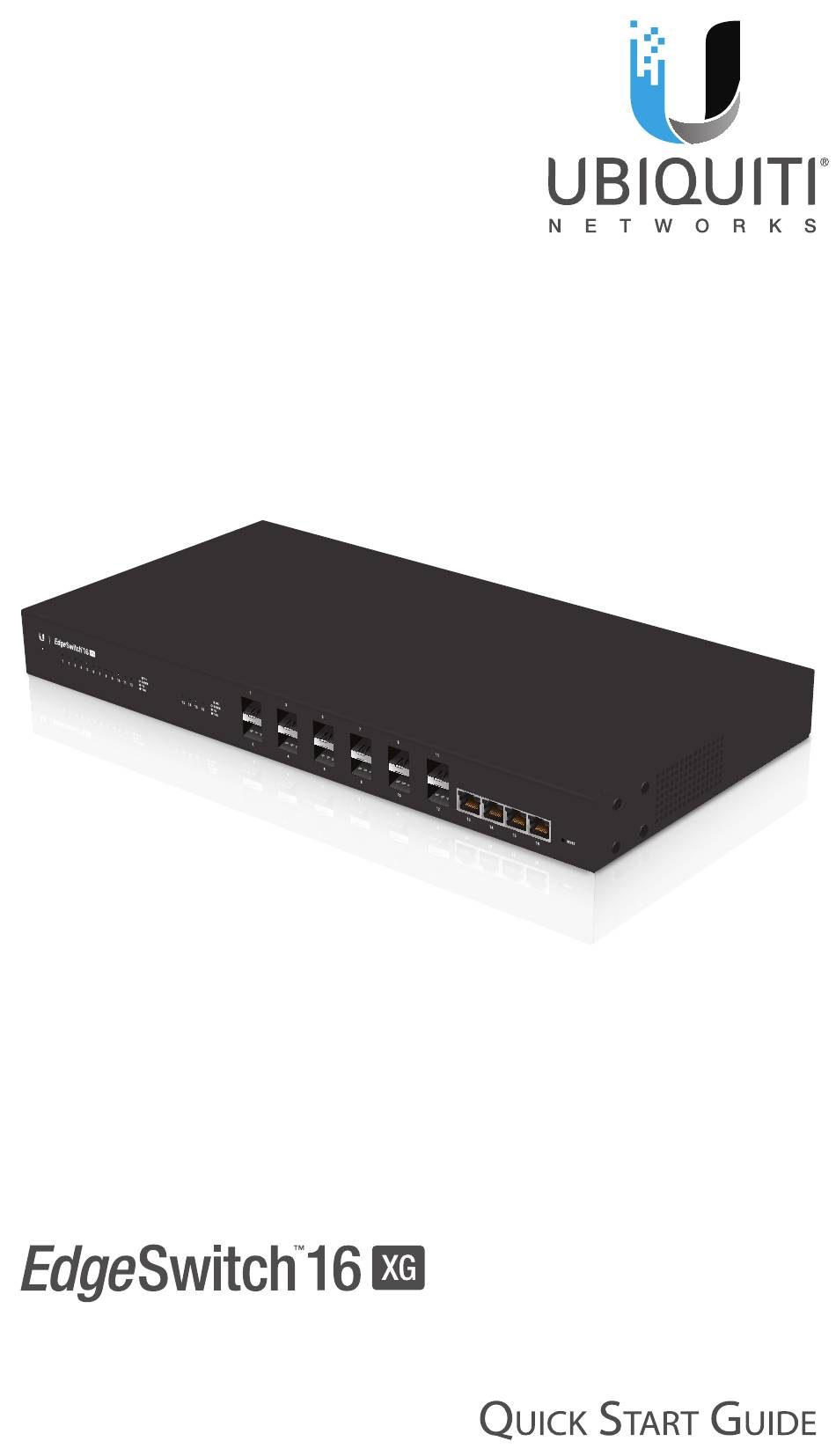

- Page 1 10G 16-Port Managed Aggregation Switch Model: ES-16-XG...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch ™ XG. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents EdgeSwitch XG Power Cord Rack-Mount Brackets Bracket Screws (Qty. 2) (M4, Qty. 8) -
Page 3: Installation Requirements
AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the switch to rain or moisture. - Page 4 Front Panel LEDs System SFP+: Speed/Link/Act RJ45: Speed/Link/Act State Status White Ready for Use Bootup in Progress Blue Flashing Indicates Reset to Factory Defaults No Link Link Established at 1 Gbps Speed/ Green Flashing Indicates Activity Link/ Link Established at 10 Gbps White Flashing Indicates Activity No Link...
-
Page 5: Front Panel Button
Front Panel Button Reset Button Description There are two methods to reset the EdgeSwitch XG to factory defaults: Runtime Reset (Recommended) The EdgeSwitch XG should be running after bootup is complete, and the System LED is white. Press and hold the Reset button. - Page 6 Back Panel Console Port Console Port Description RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer. Then configure the following settings as needed: Console •...
-
Page 7: Side Panel
Back Panel Power Power DC Input DC Input The 25VDC input can connect a redundant or stand-alone DC power source (not included) with minimum power: 56W, 25 to 16V, and 2.5 mm DC power inline connector. Note: You can use the redundant DC power source as a hot spare;... -
Page 8: Hardware Installation
Hardware Installation The EdgeSwitch XG can be placed on a horizontal surface, mounted on a wall, or mounted in a rack. WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. -
Page 9: Connecting Power
Connecting Power 1. Connect the Power Cord to the Power port of the EdgeSwitch XG. 2. Connect the other end of the Power Cord to a power outlet. - Page 10 Connecting SFP+ 1. Remove the protective plug covering the SFP+ port. 2. Plug a compatible fiber module into the SFP+ port. 3. Connect the fiber optic cable to the fiber module. Then connect the other end of the cable to another fiber device. 4.
- Page 11 Connecting RJ45 1. Connect an Ethernet cable from your computer or host system to any RJ45 port of the EdgeSwitch XG. 2. Connect Ethernet cables from the RJ45 ports of your devices to the other RJ45 ports of the EdgeSwitch XG.
-
Page 12: Accessing The Configuration Interface
Press enter (PC) or return (Mac). 2. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it. - Page 13 Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License...
- Page 14 5. The EdgeSwitch Configuration Interface will appear. Go to System > Connectivity > IPv4. 6. Change the IP Address to a unique IP address or select DHCP on the IPv4 tab. Click Submit. Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch XG using the new IP address.
-
Page 15: Specifications
Specifications ES-16-XG Dimensions 443 x 221 x 43 mm (17.44 x 8.70 x 1.69") Weight 2.62 kg (5.78 lb) With Mount Brackets 2.71 kg (5.97 lb) Total Non-Blocking 160 Gbps Line Rate Max. DC Power Consumption (excludes SFP/SFP+ module) Power Method 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector... -
Page 16: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 17: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 18: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. -
Page 19: Industry Canada
Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. -
Page 20: Australia And New Zealand
Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. - Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/30/ESB, 2014/35/ESB. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è... -
Page 23: Online Resources
[Slovak] a ďalšími relevantnými ustanoveniami smernice 2014/30/EÚ, 2014/35/EÚ. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de las Directivas 2014/30/UE, 2014/35/UE. - Page 24 . u b n t . c o m ©2015-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeSwitch, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
