THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

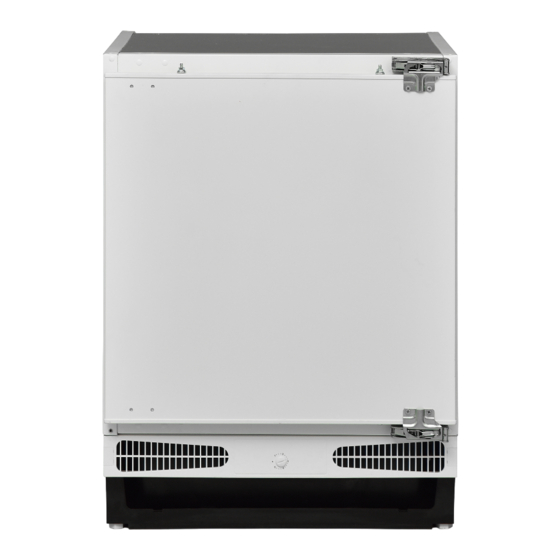

Built-under 4* Ice-Box Fridge
MBUR115
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MBUR115
Summary of Contents for montpellier MBUR115
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Built-under 4* Ice-Box Fridge MBUR115 Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................4 1.1 General Safety Warnings ....................4 1.2 Installation warnings .......................8 1.3 Electrical information (For UK type plug) ................8 1.4 During Usage........................9 2 DESCRIPTION OF THE APPLIANCE ............10 2.1 Dimensions ........................11 3 USING THE APPLIANCE ................12 3.1 Thermostat Setting .......................12 3.2 Temperature Settings Warnings ...................12 3.3 Accessories ........................13... -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Make sure that the appliance is left to stand for a minimum of 4 hours before being turned on for the first time. WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. - Page 5 If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive.
- Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...
-
Page 8: Installation Warnings
1.2 Installation warnings • Clearance of at least 150 mm is required at the top of your appliance. Do not place Before using your fridge for the first time, anything on top of your appliance. please pay attention to the following points: •... -
Page 9: During Usage
The mains lead of this appliance has been • Old fridges and freezers contain isolation fitted with a BS 1363A 13A fused plug. To material and refrigerant with CFC. change a fuse in this type of plug, follow the Therefore, take care not to harm steps below: environment when you are discarding 1. -
Page 10: Description Of The Appliance
2 DESCRIPTION OF THE • This appliance is produced to be used in APPLIANCE homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred. -
Page 11: Dimensions
2.1 Dimensions EN - 11... -
Page 12: Using The Appliance
3 USING THE APPLIANCE Thermostat settings: 1 – 2 : For short-term storage of food “Door Open” Indicator; The "Door Open" indicator on the handle 3 – 4 : For long-term storage of food shows whether the door has closed properly (standard recommended setting for or whether it remains open. -
Page 13: Accessories
Super freezing: • When the appliance is first switched on, Super switch allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside. •... -
Page 14: Food Storage
• Consume packaged foods before the 4 FOOD STORAGE recommended expiry date. • For normal working conditions, it will 4.1 Refrigerator Compartment be sufficient to adjust the temperature • To reduce humidity and avoid the setting of your refrigerator to run at +4 °C. consequent formation of frost, always •... -
Page 15: Freezer Compartment
4.2 Freezer Compartment • The storage life of frozen food depends • The freezer is used for storing frozen food, freezing fresh food, and making ice on the room temperature, the thermostat setting, how often the door is opened, the cubes. - Page 16 The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment. Maximum storage time Meat and fish Preparation (months) Steak Wrap in foil 6 - 8 Lamb meat Wrap in foil 6 - 8 Veal roast...
-
Page 17: Cleaning And Maintenance
Maximum storage time Vegetables and Fruits Preparation (months) Cooked fruits Add 10 % of sugar to the container Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum storage time Thawing time at room Thawing time in oven (months) temperature (hours) (minutes) -
Page 18: Replacing The Light Bulb
• Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically. • The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out. -
Page 19: Shipment And Repositioning
7 BEFORE CALLING AFTER- 1. If available, remove the screw on the light SALES SERVICE cover by screw driver. (Fig.1) 2. Press the hooks on light cover. (Fig. 2) If you are experiencing a problem with your 3. Open the light cover towards arrow when appliance, please check the following before top hooks pull out from housing. - Page 20 There is water in the lower part of the Short cracking noise occurs: When refrigerator or on the shelves. the thermostat switches the compressor on/off. As this is a Wet Wall fridge you will find Motor noise: Indicates the compressor under normal operation that moisture within is operating normally.
-
Page 21: Tips For Saving Energy
This will save Montpellier web site and all relevant and energy. Frozen food left to thaw outside of downloadable information that is required can be found there. - Page 22 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 23 EN - 23...
- Page 24 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
