Line Splitter - D-Link DSL-200 User Manual

Note: Do not install the microfilter between the Modem and the telephone jack.
Microfilters are only intended for use with regular telephones, Fax machines and other
telephone devices.

Line Splitter

If you are instructed to use a "line splitter", you must install the device between the
Modem and the phone jack. Use standard telephone cable with standard RJ-11
connectors. The splitter has three RJ-11 ports used to connect to the wall jack, the
Modem and if desired, a telephone or telephone device. The connection ports are
typically labeled as follows:
Line - This port connects to the wall jack.
ADSL – This port connects to the Modem.
Phone – This port connects to a telephone or other telephone device.

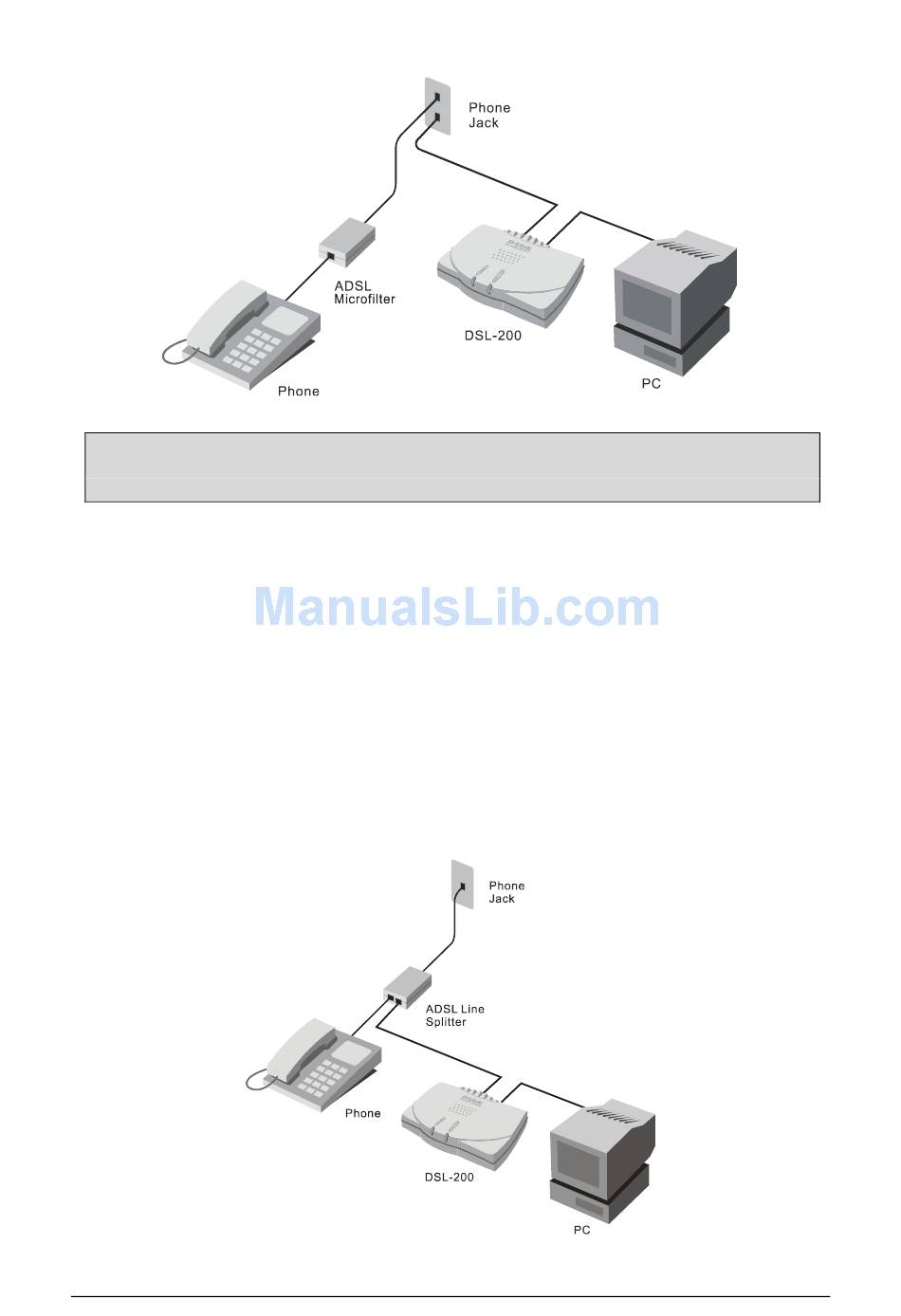

The diagram below illustrates the proper use of the splitter.
