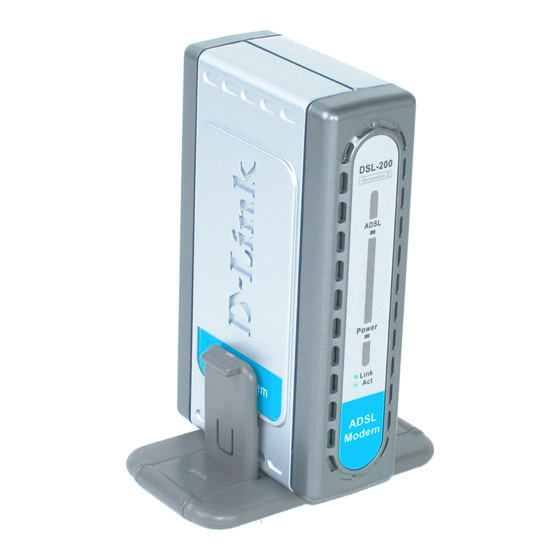

D-Link DSL-200 User Manual

Adsl usb modem
Hide thumbs Also See for DSL-200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
DSL-200 ADSL USB Modem
User's Guide
First Edition (Aug., 2000)
6DSL200H..01
Printed In Taiwan
RECYCLABLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-Link DSL-200

Summary of Contents for D-Link DSL-200

  • Page 1 DSL-200 ADSL USB Modem User’s Guide First Edition (Aug., 2000) 6DSL200H..01 Printed In Taiwan RECYCLABLE...
  • Page 2 DSL-200 ADSL USB Modem User’s Guide Wichtige Sicherheitshinweise 1. Bitte lesen Sie sich diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den spätern Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger.

  • Page 3: Limited Warranty

    Warranty service for software products may be obtained by contacting a D-Link office within the applicable warranty period. A list of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card. If a Registration Card for the product in question has not been returned to a D-Link office, then a proof of purchase (such as a copy of the dated purchase invoice) must be provided when requesting warranty service.

  • Page 4: Limitation Of Liability

    D-Link makes no warranty that its software products will work in combination with any hardware, or any application or system/platform software product provided by any third party, excepting only such products as are expressly represented, in D-Link's applicable product documentation as being compatible.

  • Page 5: Ce Mark Warning

    No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems Inc., as stipulated by the United States Copyright Act of 1976 FCC Warning This device complies with part 15 of the FCC Rules.

  • Page 6: Table Of Contents

    DSL-200 ADSL USB Modem User’s Guide Table of Contents ABOUT THIS USER’S GUIDE........................1 .................................. 1 REFACE ’ ........................... 1 VERVIEW OF THE UIDE BEFORE YOU START..........................2 .............................. 2 PERATING YSTEMS USB Port................................2 ADSL S ............................... 2 ERVICE ADSL Protocol..............................

  • Page 7: About This User's Guide

    DSL-200 ADSL USB Modem User’s Guide ’ BOUT UIDE This user’s guide tells you how to install your DSL-200 ADSL USB Modem and use it to connect to the Internet. Preface For simplicity, this documentation uses the terms “Modem” (first letter upper case) to refer to the DSL-200 USB Modem and “modem”...

  • Page 8: Before You Start

    Modem. In order to avoid problems please read this section and make sure you understand all the prerequisites for proper installation of your new Modem. Operating Systems The D-Link DSL-200 can be used with PCs running Microsoft® Windows 98, Windows 98 Second Edition or Windows 2000. USB Port In addition to the Windows OS, you will need a USB (Universal Serial Bus) port on your computer.

  • Page 9: Micro-Filters

    DSL-200 ADSL USB Modem User’s Guide Micro-filters Since ADSL and telephone services share the same copper wire to carry their respective signals, a filtering mechanism must be used to avoid mutual interference. You will need to install a micro-filter (low pass filter) device for each telephone that shares the line with the ADSL line.

  • Page 10: Introduction

    ADSL modem technology is a relatively new technology and may be unfamiliar to the reader. In this section, we introduce you to ADSL technology and give a brief description of its key attributes. We also give a general description of the D-Link DSL-200 USB Modem and its main features.

  • Page 11: Unpacking

    User’s Guide Modem Description and Operation The DSL-200 ADSL USB Modem is easy to install and use. The DSL-200 ADSL Modem connects directly a USB port on a PC with standard USB cable. Software drivers for D-Link ADSL Modems can be fully upgraded by simply loading newer versions onto your PC.

  • Page 12: Rear Panel

    DSL-200 ADSL USB Modem User’s Guide Rear Panel Both the USB and ADSL cables connect at the rear of the Modem. Front Panel LED Indicators There are two LED indicators on the Modem: ♦ Power - This indicates that the Modem is powered on.

  • Page 13: Modem Installation

    DSL-200 ADSL USB Modem User’s Guide ODEM NSTALLATION This chapter describes the physical installation of the Modem and its connections. Connect and Install Modem To install the Modem, perform the following steps: 1. Insert the Installation CD disk into the CD-ROM drive.

  • Page 14: Software Installation

    DSL-200 ADSL USB Modem User’s Guide OFTWARE NSTALLATION The DSL-200 can be used with the following operating systems: ♦ Microsoft Windows 98 ♦ Microsoft Windows 98 Second Edition ♦ Microsoft Windows 2000 The procedures for each system are slightly different so be sure to follow the instructions provided for your PC’s operating system.

  • Page 15: Installing The Software Driver On Windows 98 Or Windows 98 Second Edition

    DSL-200 ADSL USB Modem User’s Guide Installing the Software Driver on Windows 98 or Windows 98 Second Edition This section describes the procedure used to install a software driver on a PC running either the Windows 98 or Windows 98 Second Edition operating system. A software driver is required to operate the Modem.
  • Page 16 DSL-200 ADSL USB Modem User’s Guide Select the “Search for the best driver…” option by clicking inside the circle to the left of it, and click the Next button. In the “Add New Hardware” select the “Specify a location:” option by clicking in the white box to the left.
  • Page 17 DSL-200 ADSL USB Modem User’s Guide This window informs you that the device driver is ready for installation. Check to make sure that the correct driver (WAN or LAN) is listed in this window. If the driver you wish to install is listed here, click Next.
  • Page 18 DSL-200 ADSL USB Modem User’s Guide You will now be presented with the Modem Properties window. The DSL Settings tab will be displayed, it lists the Mode, and the default VCI and the VPI numbers, 88 and 0 respectively. Your telephone company or ISP should have given you VCI and VPI numbers.

  • Page 19: Installing The Software Driver On Windows 2000

    DSL-200 ADSL USB Modem User’s Guide Installing the Software Driver on Windows 2000 This section describes the procedure used to install a software driver on a PC running the Windows 2000 operating system. A software driver is required to operate the Modem.
  • Page 20 DSL-200 ADSL USB Modem User’s Guide 2. Select the “Search for a suitable driver…” option by clicking inside the circle to the left of it, and click the Next button. 3. The “CD-ROM disk drives” option and the “Floppy disk drives” option should already be...
  • Page 21 DSL-200 ADSL USB Modem User’s Guide 4. This window informs you that “Windows has found a driver for this device.” If you wish to load the WAN driver, you may click Next and proceed to Step 6. If you would like to load the LAN driver, click the “Install one of the other driver” box, a check mark will indicate this has been selected.
  • Page 22 DSL-200 ADSL USB Modem User’s Guide A digital signature is not necessary; D-Link has tested the software with Windows 2000. Click the Yes button to continue the installation. The driver software will be copied. 7. After the driver has been loaded you will see this window. Click Finish to complete...

  • Page 23: Monitoring The Modem

    Once you have installed the Modem you can monitor the status of the ADSL connection by clicking on the DSL-200 Modem icon (pictured below) in your Control Panel folder. When you click on the icon the following window will appear: In this window, a bright green circle under “Link Status”...

  • Page 24: Technical Specifications

    DSL-200 ADSL USB Modem User’s Guide ECHNICAL PECIFICATIONS General ANSI T1.413 issue 2 Standards: ITU G.992.1 (G.dmt) ITU G.992.2 (G.lite) ITU G.994.1 (G.hs) USB 1.1 specifications TCP/IP Protocol: G.dmt full rate downstream: up to 8Mbps Data Transfer Rate: G.dmt full rate upstream: up to 640Kbps G.lite ADSL downstream: up to 1.5Mbps...

  • Page 25: Uninstalling The Modem

    3. Select “Uninstall/Unplug a device” option and click Next. 4. Select “Uninstall a device” and click Next. 5. You will then be asked to choose from a list of devices to be uninstalled, highlight “D-Link DSL- 200 ADSL USB Modem” and click Next.
  • Page 26 TEL: 39-02-2900-0676 FAX: 39-02-2900-1723 E-MAIL: info@dlink.it URL: www.dlink.it JAPAN D-LINK JAPAN 10F, 8-8-15 Nishi-Gotanda, Shinagawa-ku, Tokyo 141 Japan TEL: 81-3-5434-9678 FAX: 81-3-5434-9868 URL: www.d-link.co.jp E-MAIL: kida@d-link.co.jp RUSSIA D-LINK RUSSIA Michurinski Prospekt 49, 117607 Moscow, Russia TEL: 7-095-737-3389, 7-095-737-3492 FAX: 7-095-737-3390 E-MAIL: vl@dlink.ru...
  • Page 27 2F, No. 119 Pao-Chung Road, Hsin-Tien, Taipei, Taiwan, R.O.C. TEL: 886-2-2910-2626 FAX: 886-2-2910-1515 URL: www.dlinktw.com.tw E-MAIL: dssqa@tsc.dlinktw.com.tw U.K. D-LINK EUROPE D-Link House, 6 Garland Road, Stanmore, London HA7 1DP U.K. TEL: 44-20-8235-5555 FAX: 44-20-8235-5500 BBS: 44-20-8235-5511 URL: www.dlink.co.uk E-MAIL: info@dlink.co.uk U.S.A D-LINK U.S.A.

  • Page 29: Registration Card

    3. What network protocol(s) does your organization use ? !XNS/IPX !TCP/IP !DECnet !Others_______________________________________________________ 4. What network operating system(s) does your organization use ? !D-Link LANsmart !Novell NetWare !NetWare Lite !SCO Unix/Xenix !PC NFS !3Com 3+Open !Banyan Vines !DECnet Pathwork !Windows NT !Windows NTAS !Windows '95 !Others________________________________________________________________________________ 5.
