FPS-T1U I C BUS INTERFACE OPTION
2

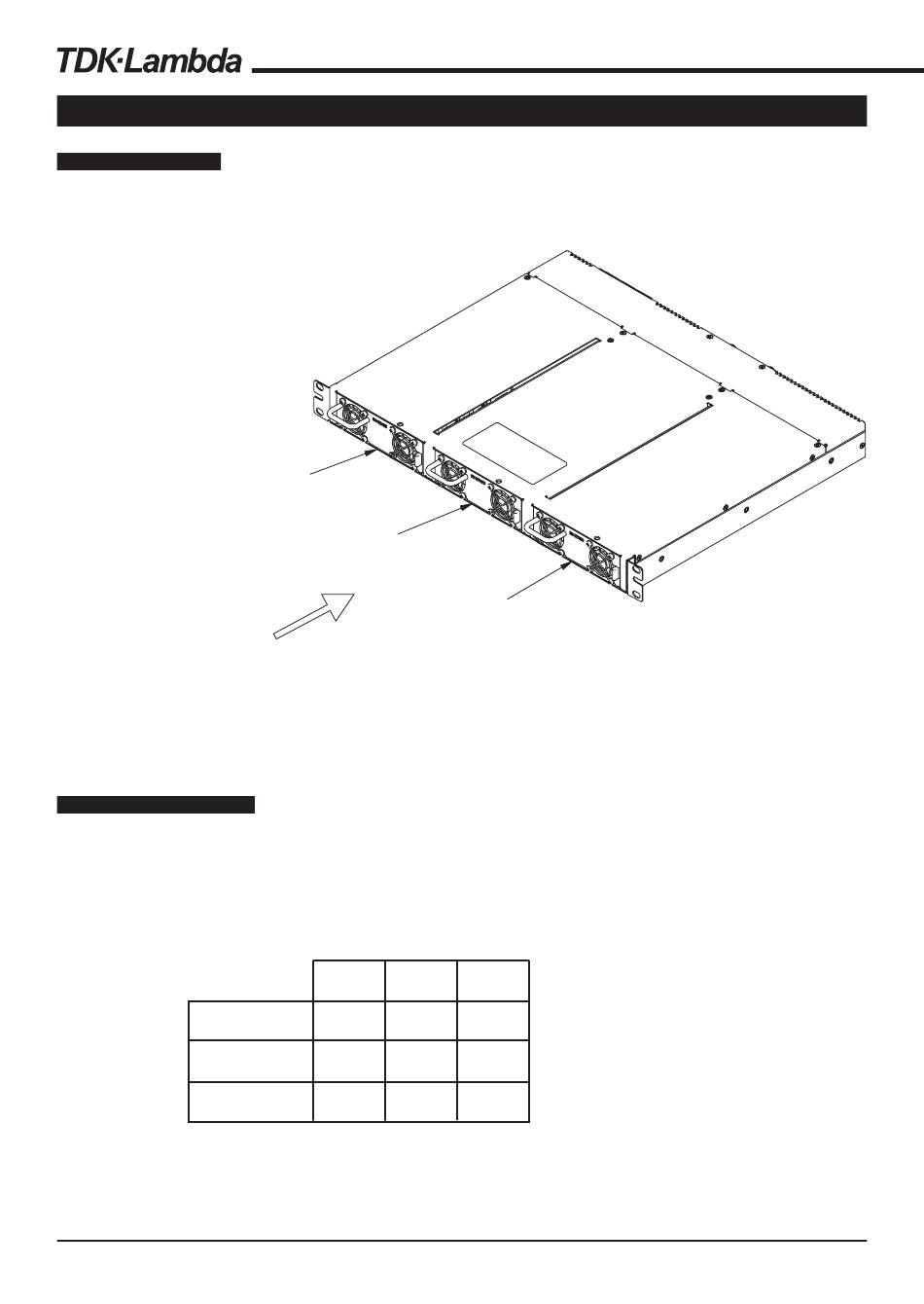

MODULES LOCATION
Up to three FPS1000 modules
can be plugged into the FPS-T1U rack.
Module 'A' is on the left ,module 'C' is on the right
For modules location refer to Fig. 7-1
PS MODULE "A"
Air flow direction
Front side
see note 1
Note1:Forced air cooling allow minimum 50mm of unrestricted air space at the rear of the unit.
Do not obsruct air flow to the unit front panel
ADDRESSING (A0, A1, A2).
The address line of the FPS1000 units installed in the FPS-T1U rack are internally fixed.
Refer to the following table for detailes:
Module "A"
Module "B"
Module "C"
Note: Address are applicable when modules FPS1000/S (I2C option) are used
30
PS MODULE "B"
PS MODULE "C"
A0 A1
1 1
0 1
1 0
A2
1
1
1
Fig 7-1
