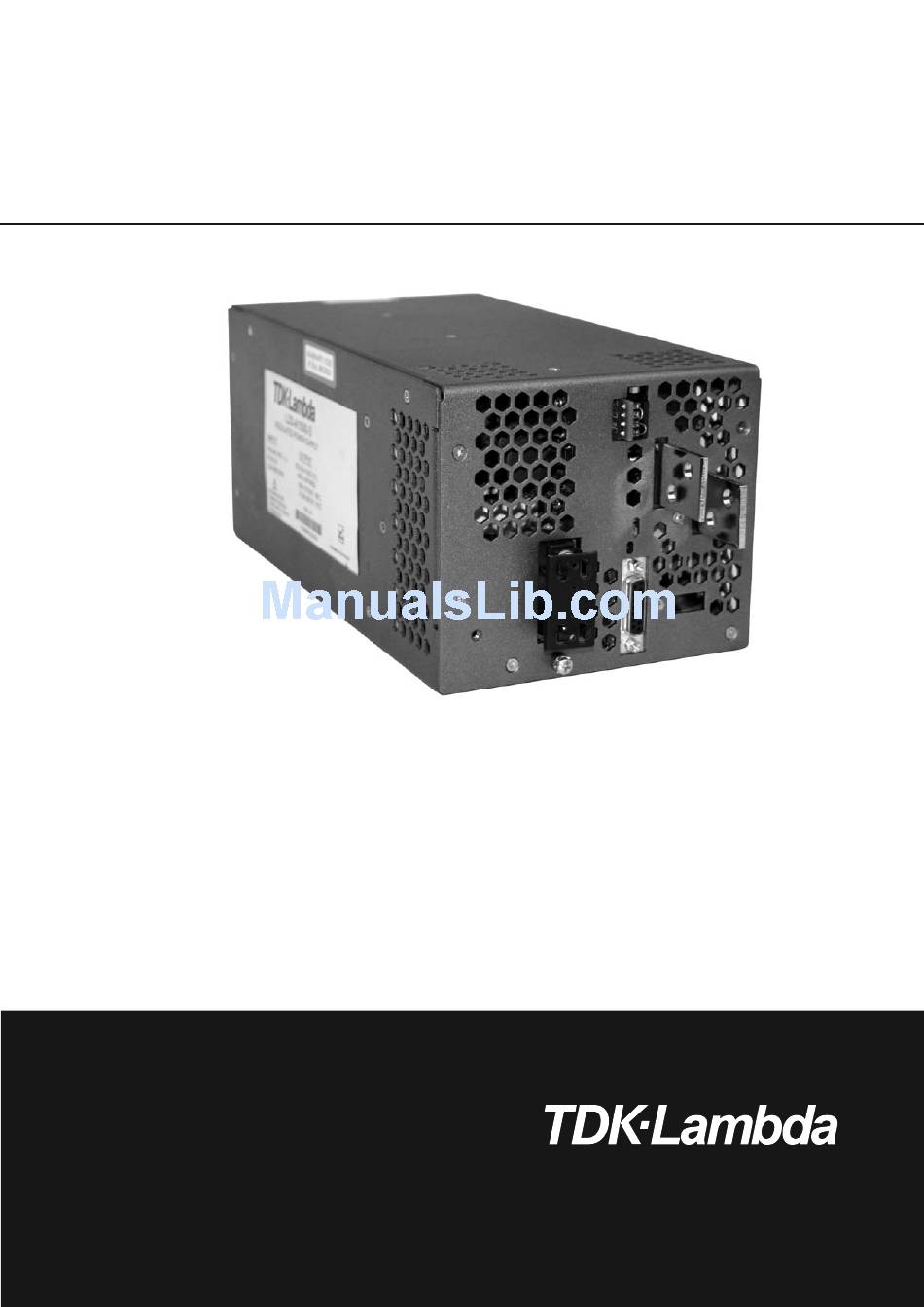

- Page 1 LZS-A1500-3 POWER SUPPLY Installation, Operation, and Maintenance Manual IM-L L ZSA1500-3 3 November 2013 Revision F...
-
Page 3: Table Of Contents
LZS-A A 1500-3 3 Power Supply Table of Contents 1) Safety and Recommended Practices General safety instructions Safety Agency Approvals 2) RATINGS AND SPECIFICATIONS 3) FEATURES 4) GUIDE TO APPLICATION Safety Notice Input Voltage Output Voltage Overvoltage Protection Circuit Adjustment Overtemperature and Overvoltage Shutdown Auxiliary Control and Alarm Signals 5) FIGURES... -
Page 4: Safety And Recommended Practices
LZS-A A 1500-3 3 Power Supply 1 Safety and Recommended Practices 1 Sicherheitsvorschriften und Vorsichtsmassnahmen 1.1 General Safety Instructions 1.1 Allgemeine Sicherheitsanweisungen This power supply is a switch mode power Dieses Netzteil ist ein Primaerschaltregler Geraet supply for use in applications meeting a für Applikationen mit Verschmutzungsgrad 2. -
Page 5: Safety Agency Approvals
LZS-A A 1500-3 3 Power Supply 8. Openings in the product case are designed 8. Oeffnungen und Lochungen am Gehaeuse for ventilation and must not be obstructed sind fuer Lueftungszwecke vorgesehen und when the product is installed and/or operated. duerfen nicht abgedeckt werden. 9. -
Page 6: Ratings And Specifications
6 kV/30 Ohm Criteria A Table 1 This manual is a description of specifications, features and applications of LZS-A1500 power supplies. RATINGS AND SPECIFICATIONS * Maximum Ratings Units LZS-A1500-3 Output Voltage Range 18-29.4 Output Current (Power) @ 60°C** A(W) 63 (1512) DC Output @ 24V Output Current (Power) @ 70°C**... -
Page 7: Input Specifications
Input Surge Protection 1kV Differential Mode; 2kV common mode Input EMI Conducted Emissions FCC Class B, CISPR 22 Class B Efficiency (at max.output power) 87 typical @ 220VAC line LZS-A1500-3 Output De-rating Input Voltage Input Voltage Output Voltage Max Output Max Output... -
Page 8: Features
LZS-A A 1500-3 3 Power Supply Operating Modes Series Operation Yes (see Fig. 7) Parallel Operation Two or more identical units (see Fig. 6). (Use of D. con. terminal 5 will (with current sharing) provide current sharing to within 10% nominal of rated 60°C current.) * Not backward compatible with the LZS-1500-3 power supply. -
Page 9: Protection Features
LZS-A A 1500-3 3 Power Supply Protection Features Output Voltage Range 18-29.4V Nominal Factory Set Point Overvoltage Protection (adjustable) 20-34V (Factory set to 31.0V) Overcurrent Protection Factory set to 110% min. and 130% max. Thermal Protection Self-resetting thermostat.* Fusing Internal Isolation Voltages 4242 VDC, Input to Output 2121 VDC, Input to Chassis Ground... -
Page 10: Guide To Application
LZS-A A 1500-3 3 Power Supply 4. GUIDE TO APPLICATION 4.1 SAFETY NOTICE Dangerous voltages exist in this equipment. Observe the usual safety precautions when operating, wiring, or servicing to reduce the risk of shock or injury. 4.2 INPUT VOLTAGE See Table 3 on page 4. -
Page 11: Figures
LZS-A A 1500-3 3 Power Supply 5. Figures Figure 1 - PIN Assignments for TB201 and chassis mounted “D” connector Page. 9 3055 Del Sol Blvd • San Diego, CA 92154 • 1-800-LAMBDA-4 Revision F : November 2013... - Page 12 LZS-A A 1500-3 3 Power Supply LS = Local Sense S = Remote Sense Figure 2 - Typical Local Sense Connection LS = Local Sense S = Remote Sense Figure 3 - Typical Remote Sense Connection Page. 10 Revision F : November 2013...
- Page 13 LZS-A A 1500-3 3 Power Supply LS = Local Sense S = Remote Sense Figure 4 - Remote Voltage Control with an External Programming Resistor or Voltage Source (Local Sensing) LS = Local Sense S = Remote Sense Figure 5 - Remote Voltage Control with an External Programming Resistor or Voltage Source (Remote Sensing) Page.
- Page 14 LZS-A A 1500-3 3 Power Supply Figure 6 - Parallel Operation Page. 12 Revision F : November 2013...
- Page 15 LZS-A A 1500-3 3 Power Supply Figure 7 - Series Operation Page. 13 3055 Del Sol Blvd • San Diego, CA 92154 • 1-800-LAMBDA-4 Revision F : November 2013...
- Page 16 LZS-A A 1500-3 3 Power Supply Figure 8 - Outline Drawing Page. 14 Revision F : November 2013...
- Page 17 LZS-A A 1500-3 3 Power Supply Figure 9 - Remote Output On/Off Control Figure 10 - Input Good, Inverter Good & Output Good Signals Page. 15 3055 Del Sol Blvd • San Diego, CA 92154 • 1-800-LAMBDA-4 Revision F : November 2013...
