Jenn-Air JDRP430W Installation Instructions

30" (76.2 CM), 36" (91.4 CM) AND 48" (121.9 CM)
COMMERCIAL STYLE DUAL FUEL CONVECTION RANGES
PRODUCT MODEL NUMBERS
JDRP430W JDRP436W
ELECTRICAL REQUIREMENTS - U.S.A. ONLY
To properly install your range, you must determine the type of electrical connection
you will be using and follow the instructions provided for it here.
Range must be connected to the proper electrical voltage and frequency as specified
on the model/serial number rating plate. The model/serial number rating plate is
located under the console on the right-hand side. Refer to the figures in the
"Product Dimensions" section of the "Location Requirements" section.
This range may be manufactured with a 4-wire power supply cord or may not
include a power supply cord. If your range does not include a power supply cord,
use a 4-wire power supply cord rated at 250 volts, 40 or 50 amps and investigated
for use with ranges.
Range Rating*
120/240 Volts 120/208 Volts
8.8 - 16.5 KW 7.8 - 12.5 KW
16.6 - 22.5 KW 12.6 - 18.5 KW
**
The NEC calculated load is less than the total connected load listed on the
model/serial rating plate.
**
If connecting to a 50-amp circuit, use a 50-amp rated cord with kit. For 50-amp
rated cord kits, use kits that specify use with a nominal 1³⁄₈" (34.9 mm) diameter
connection opening.
A circuit breaker is recommended.
Wire sizes and connections must conform with the rating of the range.
ELECTRICAL REQUIREMENTS - CANADA ONLY
Check with a qualified electrical installer if you are not sure the range is properly
grounded.
When a 4-wire, single phase 250 volt, 60 Hz., AC only electrical supply is available, a
40-amp minimum circuit protection is required on 30" (76.2 cm) and 36" (91.4 cm)
ranges and a 50-amp minimum circuit protections is required on 48" (121.9 cm)
ranges, fused on both sides of the line.
A time-delay fuse or circuit breaker is recommended.
This range is equipped with a CSA International Certified Power Cord intended to be
plugged into a standard 14-50R wall receptacle. Be sure the wall receptacle is within
reach of range's final location.
Do not use an extension cord.
GAS SUPPLY REQUIREMENTS
Type of Gas
Natural Gas:
This range is design-certified by CSA International for use with Natural gas or, after
proper conversion, for use with LP gas.
This range is factory set for use with Natural gas. The model/serial rating plate
located under the console on the right-hand side has information on the types of
gas that can be used. If the types of gas listed do not include the type of gas
available, check with the local gas supplier.
LP Gas conversion:
Conversion must be done by a qualified service technician.
No attempt shall be made to convert the range from the gas specified on the
model/serial rating plate for use with a different gas without consulting the serving
gas supplier. To convert to LP gas, use the LP gas conversion kit provided with your
range and see the "Gas Conversions" section. The parts for this kit are in the literature
package supplied with the range.
Gas Supply Line
Provide a gas supply line of ³⁄₄" (1.9 cm) rigid pipe to the range location. A smaller
size pipe on longer runs may result in insufficient gas supply. With LP gas, piping or
tubing size can be ¹⁄₂" (1.3 cm) minimum. Usually, LP gas suppliers determine the
size and materials used in the system.
NOTE: Pipe-joint compounds that resist the action of LP gas must be used. Do not
use TEFLON ®† tape.
†®
TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
JDRP536W JDRP548W
Specified Rating of Power Supply
Cord Kit and Circuit Protection
Amps Range Size
40 or 50** 30" (76.2 cm),
36" (91.4 cm)
50 48" (121.9 cm)
LOCATION REQUIREMENTS
Mobile Home - Additional Installation Requirements
The installation of this range must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the
Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
Part 280). When such standard is not applicable, use the Standard for
Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local
codes.
In Canada, the installation of this range must conform with the current
standards CAN/CSA-A240-latest edition, or with local codes.
Mobile home installations require:
When this range is installed in a mobile home, it must be secured to
the floor during transit. Any method of securing the range is adequate
as long as it conforms to the standards listed above.

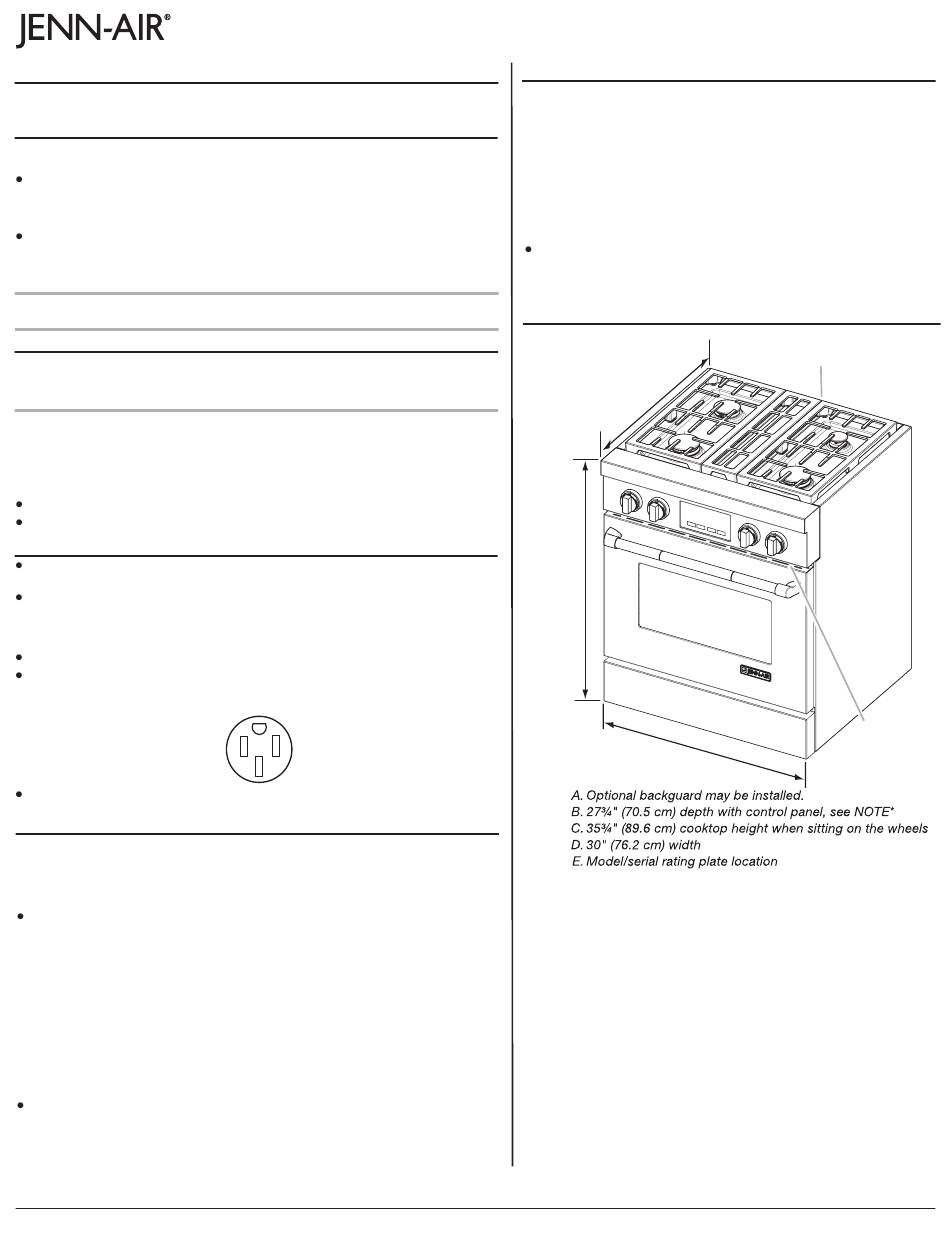

PRODUCT DIMENSIONS
30" (76.2 cm) models
C
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
A
B
D
E
