Nuvico Xcel NCT-4M-B31AF Quick Start Manual

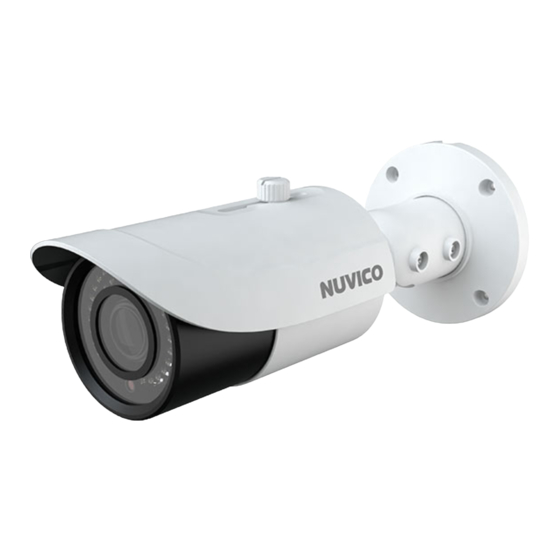

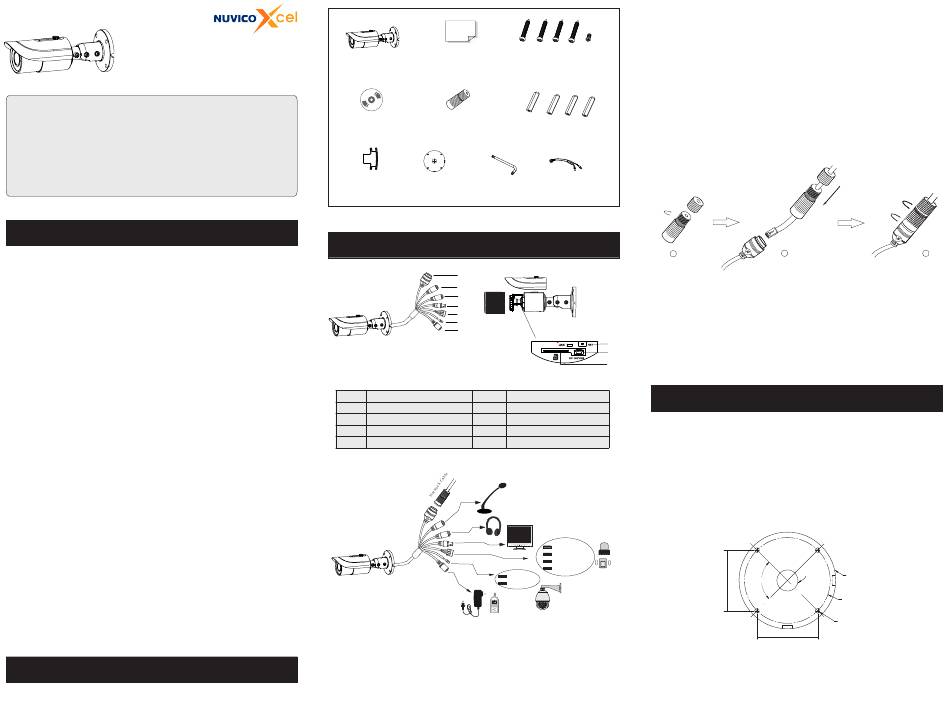

NCT-4M-B31AF Bullet Camera
Quick Start Guide
Thank you for purchasing our product. There may be several
technically incorrect places or printing errors in this manual.
The updates will be added into the new version of this manual.
We will readily improve or update the products or procedures
described in the manual. The content is subject to change
without notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Keep away from liquid while in use.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
If the device will not be used for a long time, please cover the lens
cap to protect the device from dirt.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -20˚C~50˚C), dusty or damp locations, and do
not expose it to high electromagnetism radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
■ A few parts of the device shall be replaced regularly according
to their average enduring time. Regular checking is recommended
for all users.
2

Package

Camera
1 machine screw PWM3×5
Quick start guide
CD -
Water proof cap
Rubber plug Drill template Screwdriver
3

Overview

1
2
3
4
5
6
7
6
1
Network Cable
2 Microphone Cable 7
3 Headphone Cable 8
CVBS Cable
4 9
5 10
Alarm Input/Output
* 1 It is recommended to install the water-proof cap for network cable connection.
* 2 If the PoE network switch is used to connect the camera, DC12V power supply
is not required.
● Alarm Connection
Alarm Input: Join the grounding ends of the sensor and the camera
and then connect the signal cable of the sensor to the alarm input
4 tapping screws PA4×25
port of the camera.
Alarm Output: Loosen the screws in the alarm output port. Then
insert the signal wires of the alarm output devices into the port of
NO and COM separately. Finally tighten the screws. Some of the
external alarm output devices need the power supply.
×4
Plastic plug
●

Connecting Network Cable

CVBS&DC
IN cables
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
8
9
nut and the main cover.
10
4

Installation

RS485 Cable
Power Cable
Reset Hole
Please make sure that the wall or ceiling is strong enough to
CVBS/DC IN port for testing
TF Card Slot
withstand 3 times the weight of the camera. Please install and use
the camera in the dry environment. You'd better install back the lens
cover less than 4 hours after removing it.
① Drill the screw holes and the cable hole on the wall according to
the drill template.
ALM-COM
ALM-NO
ALM-IN
ALM-GND
RS485T+
RS485T-
② Route the cables and connect the relevant cables.
2
∅22.6
∅103
64.6mm
90°
∅91.4
∅5
64.6mm
3
