Emmo T350
MOBILITY SCOOTER
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T350 and is the answer not in the manual?

Questions and answers

Related Manuals for EMMO T350

Summary of Contents for EMMO T350

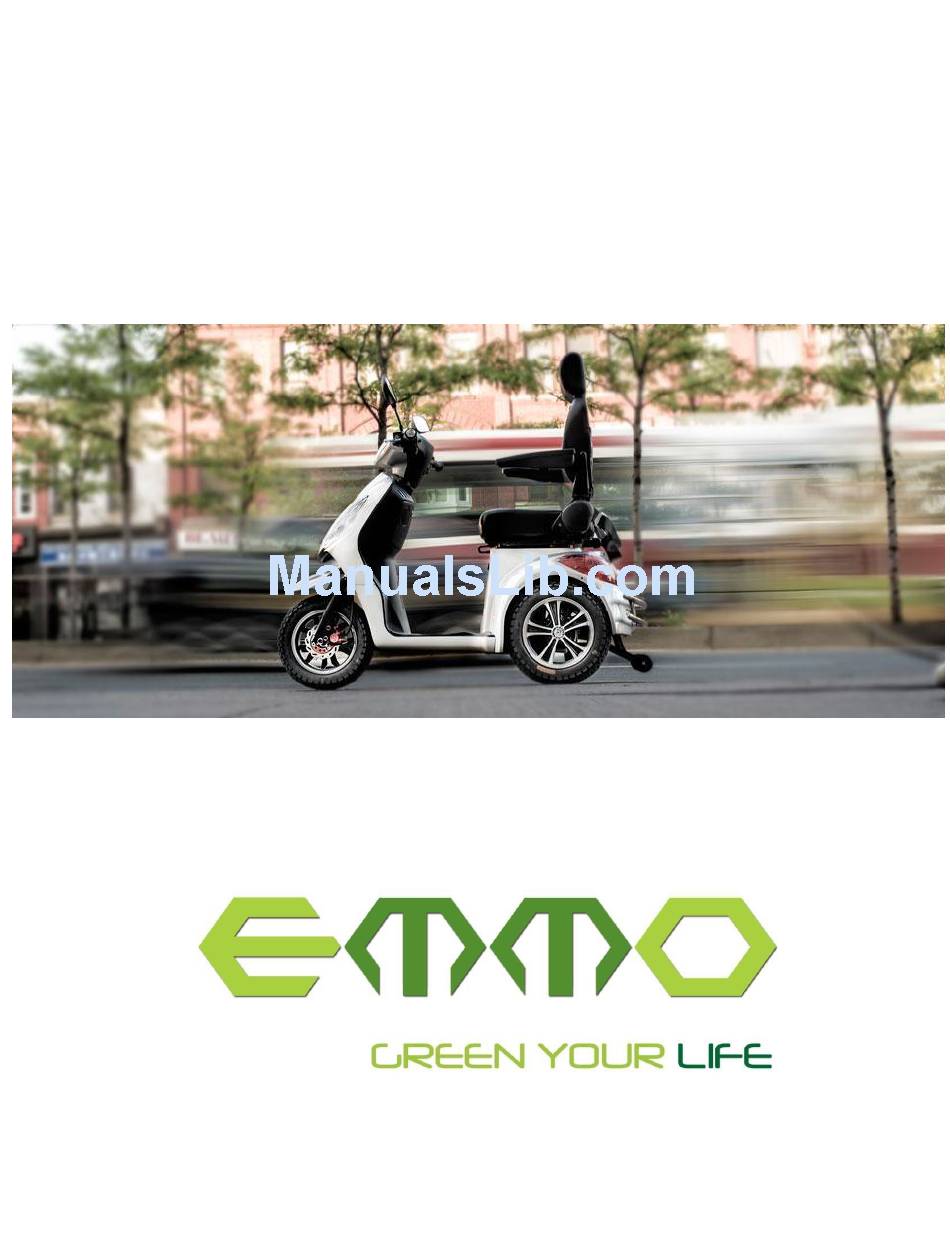

  • Page 1 Emmo T350 MOBILITY SCOOTER Owner’s Manual...

  • Page 2: Table Of Contents

    Contents A Message from MTO ........................1 Safety ............................... 2 Specifications ..........................3 Charging the Bike..........................4 Features ............................7 Radio ............................. 11 Remote Control ..........................12 Riding Instructions ........................13 Speedometer ..........................15 60 Second check and Service ......................16 E-Bike Registration ........................

  • Page 3: A Message From Mto

    A Message from MTO Personal Mobility Devices (Motorized Wheelchairs and Medical Scooters) Do not require registration, license plates, driver's license or vehicle insurance. Persons operating motorized wheelchairs are treated in the same way as pedestrians. Wheelchairs can be driven by muscular power or other types of power, and are designed for and used by people whose mobility is limited by one or more conditions or functional impairments.

  • Page 4: Safety

    Safety When operating the T350 please make sure you adhere to the following: Always check your mirrors and blind spots when operating the vehicle. Turn on headlights when in need of additional visibility. Make sure that your battery power is sufficient before you go out to ride Obey all laws of the road.

  • Page 5: Specifications

    Specifications Blue; Dark Red; Silver Color: Special Features 24V/55Ah Lead Acid Battery, Long distance drive 10″ x 3.0″ Tubeless Wheel Size: 100 kg Gross Weight: Forward Max 18km/h; Backward 4km/h Dual Speed: Travel Range: Up to 70kms* 5 – 10 Hours Charging Time: Climbing Angle: 20 Degrees Motor:...

  • Page 6: Charging The Bike

    Charging the Bike WARNIN *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 8 HOURS. *DO NOT CHARGE THE E- BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE CHARGER AND WILL RESULT IN THE CHARGER DAMAGING THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING LONG PERIODS OF INACTIVITY...
  • Page 7 Charging the Bike (Lead Acid Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet, and the other into the charger port. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) Plug the other end of the charger into the power outlet.
  • Page 8 Gear Switch This lever changes the gear on the bike; it affects the movement of the bike. When the lever is pushed upwards, the bike can be pushed forwards and backwards. In this position, if the bike is turned on, the throttle will not move the bike.

  • Page 9: Features

    Note: The back wheels for the T350 run on an electronic brake system; the wheels only move when the throttle is being used. When the throttle is released, the back wheels will slowly come to a stop. (The axle controlling the...
  • Page 10 Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in and turned to the left, from the off position. This locks the handlebars when they are turned all the way to the left. (The handlebars must be turned all the way to the left before the key will turn.) 2.
  • Page 11 Seat Adjustments 1. Pulling this lever upwards allows for the back of the seat to be adjusted. (Tilted forwards and backwards) 2. Turning this screw to the left or right will change the setting position of the arm. 3. Pulling this lever up allows for the seat to be adjusted.
  • Page 12 NOT flow through the bike, and none of the electrical aspects will work on the bike. To open the storage space beneath the T350 seat, insert your key into this key slot, turn to right and lift the seat.

  • Page 13: Radio

    Radio The EMMO T350 comes with a built in radio and mp3 player so you can listen to your music. The Mp3 player can take either a USB stick or MicroUSB card. Put your songs on to your drive as Mp3’s for compatibility.

  • Page 14: Remote Control

    12 / Remote Control The EMMO T350 comes with a remote control that allows you to arm and disarm the alarm system as well as change songs that you are listening to. Alarm / Volume Reset - Once the unit is turned off the press this button to turn on the alarm.

  • Page 15: Riding Instructions

    13 / Riding Instructions Turning Signals High/Low Beam Switch Pushing the switch to either the left or right positions will Pushing the switch up turn on the respective Brakes (silver part): Pull that activates the high beams for front/rear turning signals. towards you to slow down and the front headlights, pushing disengage the motor.
  • Page 16 (Middle position), then to speed 3 (Far the switch is pushed to the left, the head-lights, right position.) Note: Some versions display lights, and tail-lights are turned on. of the T350 have these speeds reversed. (i.e. 3 is the fastest, 1 is the slowest)

  • Page 17: Speedometer

    Battery / Voltage reading - Shows how much power you have. 5 Bars means it has a full battery. *Please note the T350 is a 24V battery so a full charge unit should read approximately 26V. **Please note that the accurate remaining battery reading is what it is showed at cruising speed, not at a stop or during acceleration.

  • Page 18: 60 Second Check And Service

    Make sure your mirrors are tightly secured and adjusted as needed to see behind you. Service For all technical service please contact us at 1-888-217-1217 for help or visit us online at emmo.ca We recommend that you don’t try to fix things yourself and that you should have a trained...

  • Page 19: E-Bike Registration

    17 / E-B ike Registration Once you have purchased an Emmo E-bike, please register your vehicle with us to validate your warranty. In order to register your e-bikes, please follow the steps listed below: Fill out the following form: Invoice Number:...
  • Page 20 Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca If you have further questions, please contact us at: 438 Spadina Avenue, Toronto ON Toll Free: 1 888 510 3666 Tel: (416) 792-3227 www.emmo.ca Email: info@emmo.ca...
