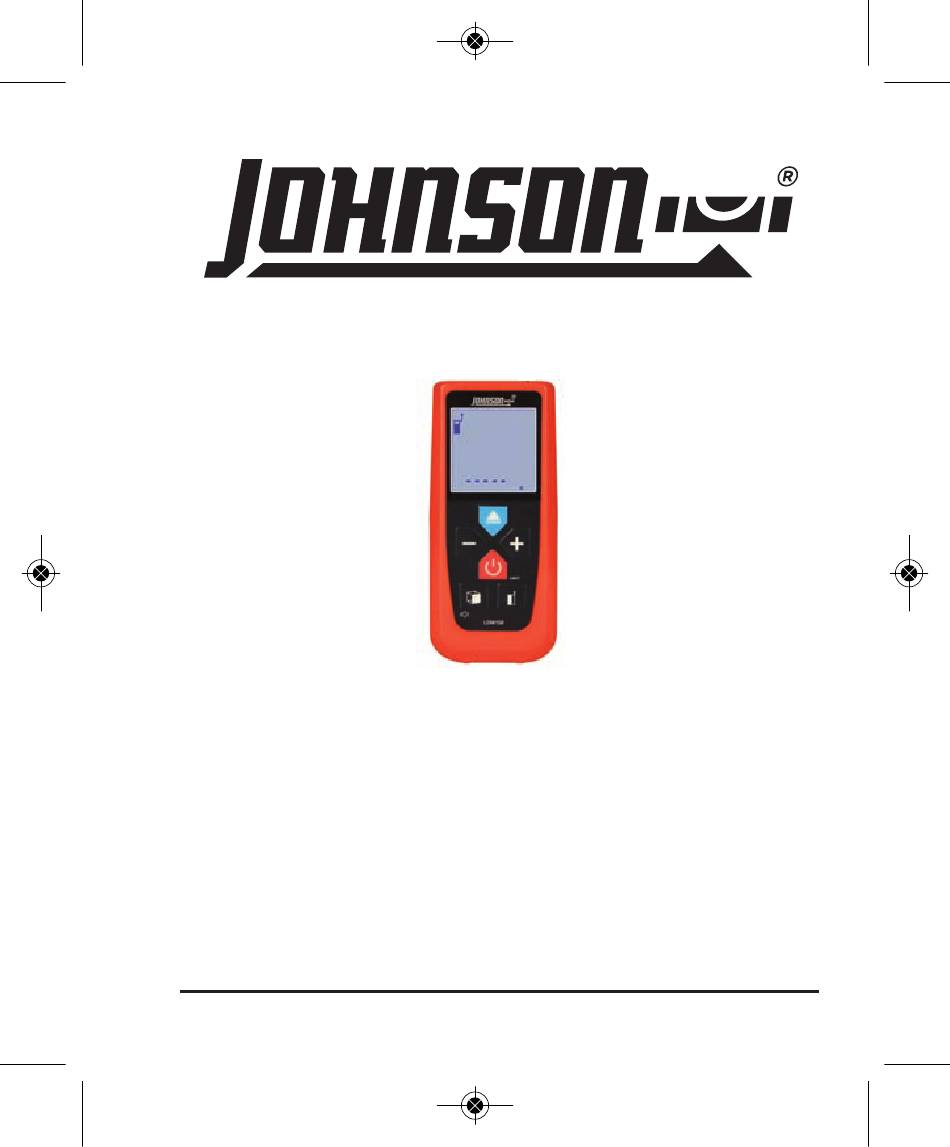

2955i_Manuals 6/4/18 10:37 AM Page 1

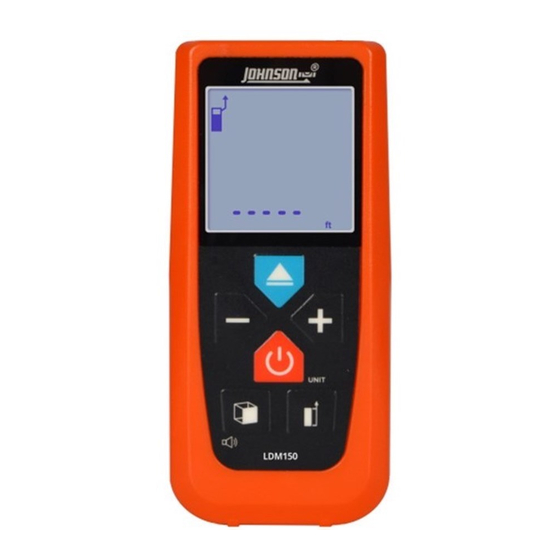

150' Laser Distance Meter
Model No. LDM150
Instruction Manual
Congratulations on your choice of this Laser Distance Meter. We suggest
you read this instruction manual thoroughly before using the instrument
and save this instruction manual for future use.
This is a Class II laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
The laser also complies with EMC Test according to EN61000-6-3;
2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN 61000-4-3, EN
60825, FCC Test according to PART 15.
©2018 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDM150 and is the answer not in the manual?

Questions and answers

Leo Padzunas
June 30, 2025

How to open case and insert batteries
