2162i-1_Manuals 8/21/17 1:56 PM Page 1
This is a Class II laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
The laser also complies with EMC Test according to EN61000-6-3;
2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN 61000-4-3, EN
60825, FCC Test according to PART 15.
©2017 Johnson Level & Tool

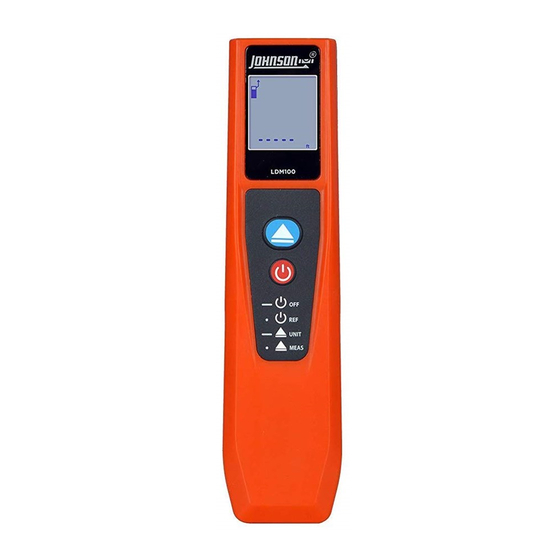

100 Laser Distance Meter
Model No. LDM100
Instruction
Manual
Congratulations on your choice of this Laser
Distance Meter. We suggest you read this
instruction manual thoroughly before using the
instrument and save this instruction manual for
future use.
1
Advertisement
Table of Contents
Related Manuals for Johnson LDM100
Summary of Contents for Johnson LDM100
- Page 1 1040.10 and 1040.11 as well as international safety rule IEC 285. The laser also complies with EMC Test according to EN61000-6-3; 2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN 61000-4-3, EN 60825, FCC Test according to PART 15. ©2017 Johnson Level & Tool...
-
Page 2: Table Of Contents
• Displays in English or metric units with decimals or fractions (English units only) • Accuracy of ±5/64″ (0.0781″, or 2mm) • High-speed microprocessor for quick, accurate calculations • IP 54 protection – sealed from dust and rainwater ©2017 Johnson Level & Tool... -
Page 3: Safety Instructions
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, warranty will be void. • Use only original Johnson ® parts and accessories purchased from your Johnson ® ® authorized dealer. Use of non-Johnson parts and accessories will void warranty. -
Page 4: Location/Content
6. Ambient Light – The tool is being used in too bright of an environment to operate properly. QR Code: Use a smartphone to scan the QR code to be taken directly to Johnson Level & Tool’s Operator’s Manual Page. ©2017 Johnson Level & Tool... -
Page 5: Location Of Parts/Components
• Power on the unit Tap for: • Measure • Adjust the measurement Press and hold for: reference • Set units of measurement Press and hold for: • Power off the unit Laser Emitted Laser Receiving Window Window ©2017 Johnson Level & Tool... - Page 6 2162i-1_Manuals 8/21/17 1:56 PM Page 6 LCD Screen Not all features found on the LCD screen are found in every Johnson Level & Tool Laser Distance Meter. See the notes below for further information. 1. Measurement Reference Position 8. Minimum Display 2.
-
Page 7: Battery Installation
Notes: • Use only alkaline batteries. • Remove the batteries when storing the instrument for an extended time (more than 3 months) to avoid damage to the tool should the batteries deteriorate. ©2017 Johnson Level & Tool... -
Page 8: Operating Instructions
2 seconds. The instrument will emit a long beep and will turn off. Automatic Shutoff Laser will turn off after remaining idle for 2 minutes. Press the button to re-enable the laser. Unit will emit a long beep and turn off after remaining idle for 5 minutes. ©2017 Johnson Level & Tool... - Page 9 (0) is located. When the instrument is first turned on, it will default to the most recently used position. Front of the unit Back of the unit ©2017 Johnson Level & Tool...
- Page 10 5. The latest measurement will display on the main LCD screen, while the prior measurement will display above it on the secondary display. ©2017 Johnson Level & Tool...
-
Page 11: Tips From The Pros
• To make the laser beam more visible, aim it down in front of you and then follow it with your eyes as you move it towards the desired target. ©2017 Johnson Level & Tool... -
Page 12: Care And Handling
• Keep the laser unit dry and clean, especially the laser output window. Remove any moisture or dirt with a soft, dry cloth. • Do not use harsh chemicals, strong detergents or cleaning solvents to clean the unit. ©2017 Johnson Level & Tool... -
Page 13: Troubleshooting Guide
Check battery polarity Turns off after a short Batteries depleted Change the batteries time Measurement seems Incorrect reference Set the reference incorrect position used position to the front rear edge of the tool, as appropriate ©2017 Johnson Level & Tool... -
Page 14: Technical Specifications
Storage Temperature Range -4°F - 160°F Power Supply 2 “AAA” alkaline batteries (included) Battery Life minimum 10 hours/10,000 measurements Dimensions 5.7″x1.3″x 0.9″ Weight 2.88 oz. including batteries; 2.13 oz. excluding batteries IP Rating IP 54 ©2017 Johnson Level & Tool... -
Page 15: Product Warranty
2162i-1_Manuals 8/21/17 1:56 PM Page 15 12. Product Warranty Johnson Level & Tool offers a two year limited warranty on each of its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department, as provided below, or by visiting our web site at www.johnsonlevel.com. -
Page 16: Warranty Registration
NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
